VBsemi ElecDatasheet (PDF)

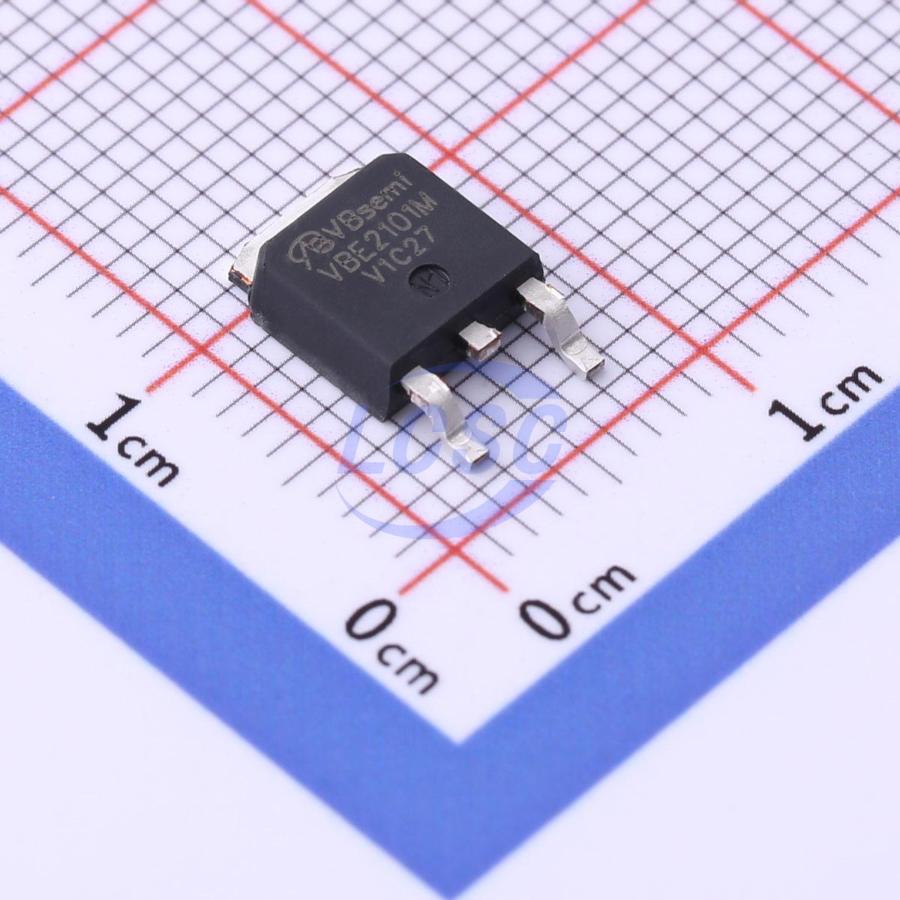

VBE2101M
P-Channel 100V 16A 32.1W Surface Mount TO-252
TO-252RoHSActive
MOSFET P-CH 100V 16A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBE2101M
- Store part #
- C3040206
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6 in stock
#C3040206
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹100.92 | ₹100.92 |
| 10+ | ₹81.35 | ₹813.50 |
| 30+ | ₹71.47 | ₹2,144.10 |
| 100+ | ₹61.80 | ₹6,180.00 |
| 500+ | ₹55.82 | ₹27,910.00 |
| 1,000+ | ₹52.93 | ₹52,930.00 |
1 × ₹100.92
₹100.92
excl. GST
₹119.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
VBE2101M
₹100.92 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 65pF
- Current - Continuous Drain(Id)
- 16A
- Ciss-Input Capacitance
- 1.055nF
- Pd - Power Dissipation
- 32.1W
- Reverse Transfer Capacitance (Crss)
- 41pF
- RDS(on)
- 100mΩ@10V;120mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 23.2nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.38 g
Overview
Applications
- Mobile computing applications
- Load switch
- Notebook adapter switch
- DC/DC converter
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RSD131P10FRA-VB#C19188177VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 5 | ₹108.38 · 5 in stock | View |
 | HM18P10K-VB#C19190273VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 32 | ₹108.38 · 32 in stock | View |
 | RU1HL13L-VB#C18212526VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 8 | ₹108.38 · 8 in stock | View |
 | UTT25P10L-TN3-R-VB#C19188272VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 42 | ₹130.41 · 42 in stock | View |
 | ST13P10-VB#C19711373VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 1 | ₹102.93 · 1 in stock | View |
