VBsemi ElecDatasheet (PDF)

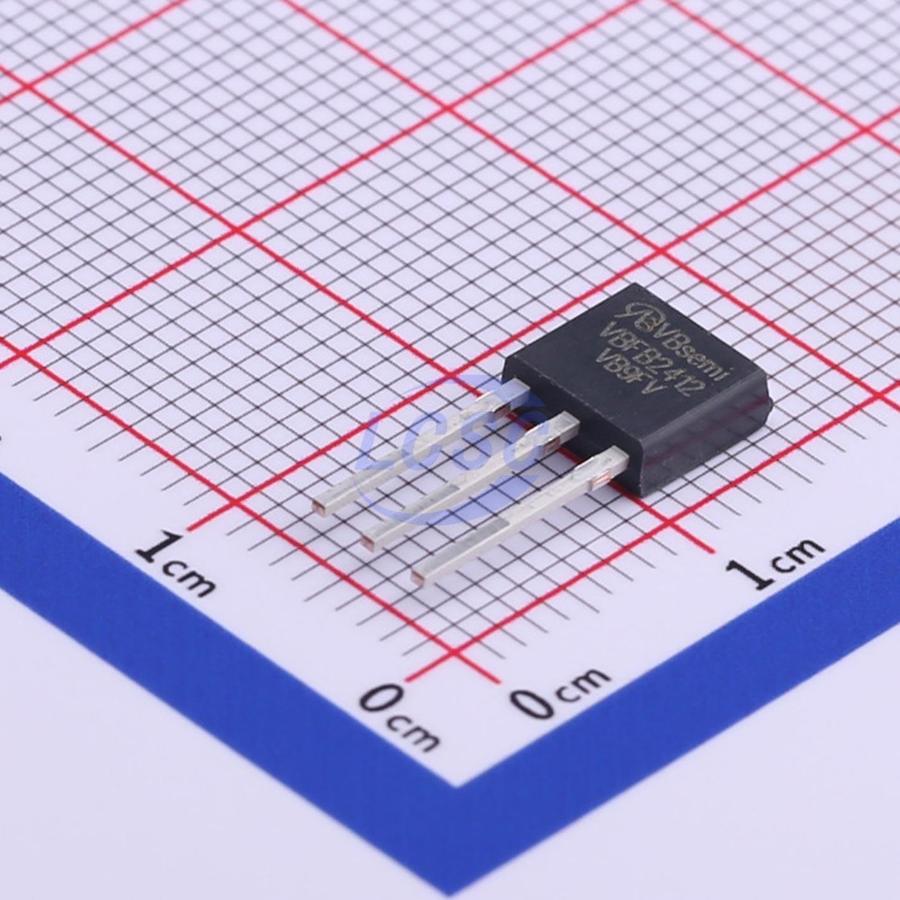

VBFB2412
P-Channel 40V 55A 45W Through Hole TO-251
TO-251RoHSActive
MOSFET P-CH 40V 55A TO-251
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBFB2412
- Store part #
- C480974
- Package / case
- TO-251
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13 in stock
#C480974
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹101.45 | ₹101.45 |
| 10+ | ₹86.21 | ₹862.10 |
| 30+ | ₹78.60 | ₹2,358.00 |
| 80+ | ₹50.95 | ₹4,076.00 |
| 480+ | ₹46.60 | ₹22,368.00 |
| 800+ | ₹44.20 | ₹35,360.00 |
1 × ₹101.45
₹101.45
excl. GST
₹119.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 80 per tube
VBFB2412
₹101.45 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 620pF
- Current - Continuous Drain(Id)
- 55A
- Ciss-Input Capacitance
- 3nF
- Pd - Power Dissipation
- 45W
- Reverse Transfer Capacitance (Crss)
- 315pF
- RDS(on)
- 10mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 160nC@15V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 80 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.632 g
Overview
Key features
- Compliant to RoHS Directive 2002/95/EC
- P-Channel MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VBZFB40P04#C700677VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 16 | ₹57.82 · 16 in stock | View |
 | CED4301-VB#C19711199VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 10 | ₹75.62 · 10 in stock | View |
 | 2SJ601-VB#C19711217VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 10 | ₹203.37 · 10 in stock | View |
 | IRFU5305PBF-VB#C7569028VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 10 | ₹232.94 · 10 in stock | View |
 | AOU413-VB#C19711224VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | On request | ₹81.42 · 0 in stock | View |
