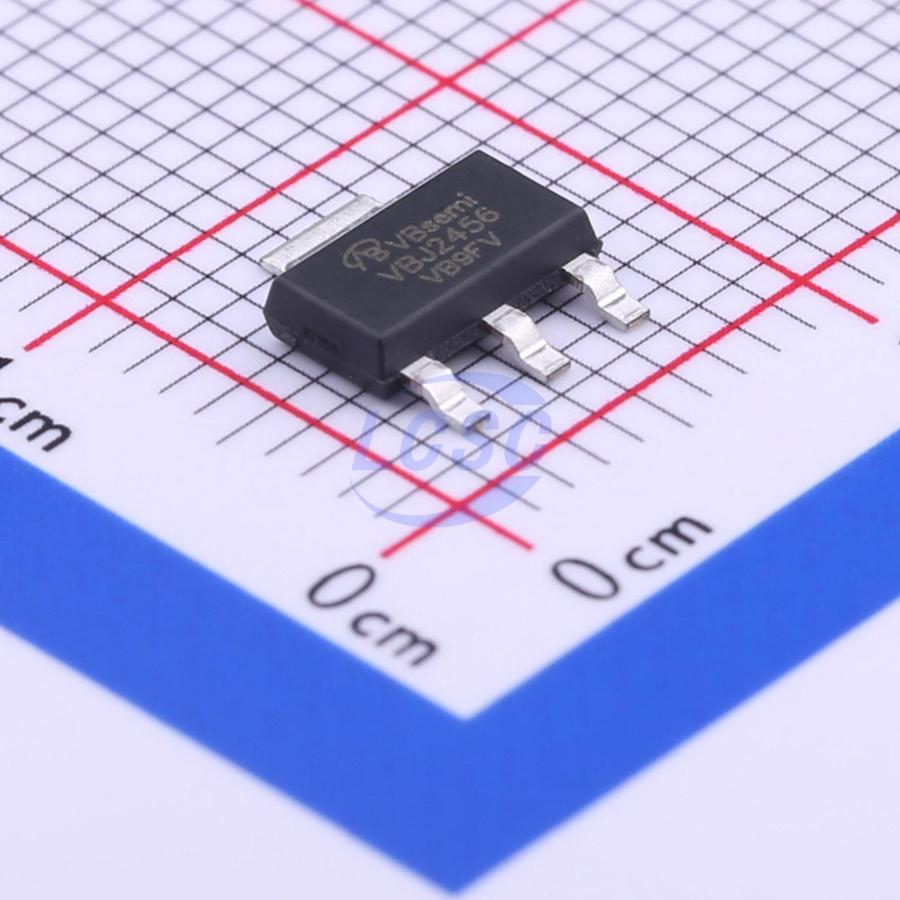

VBJ2456
P-Channel 35V 6.2A 4.2W Surface Mount SOT-223
SOT-223RoHSActive
MOSFET P-CH 35V 6.2A SOT-223
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBJ2456
- Store part #
- C416327
- Package / case
- SOT-223
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
51 in stock
#C416327
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹70.32 | ₹70.32 |
| 10+ | ₹59.01 | ₹590.10 |
| 30+ | ₹54.22 | ₹1,626.60 |
| 100+ | ₹48.12 | ₹4,812.00 |
| 500+ | ₹29.83 | ₹14,915.00 |
| 1,000+ | ₹28.09 | ₹28,090.00 |
1 × ₹70.32
₹70.32
excl. GST
₹82.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
VBJ2456
₹70.32 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 35V
- Output Capacitance(Coss)
- 120pF
- Current - Continuous Drain(Id)
- 6.2A
- Ciss-Input Capacitance
- 970pF
- Pd - Power Dissipation
- 4.2W
- Reverse Transfer Capacitance (Crss)
- 95pF
- RDS(on)
- 40mΩ@10V;48mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 23nC@10V;9.8nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.8V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.344 g
Overview
Applications
- Load Switch, Adapter Switch - Notebook Computers
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% gate resistance (Rg) tested
- 100% unclamped inductive switching (UIS) tested
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CET4301-VB#C2680910VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 50 | ₹57.91 · 50 in stock | View |
 | NDT452AP-NL-VB#C558204VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 268 | ₹64.73 · 268 in stock | View |
 | NTF6P02T3G-VB#C558214VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 142 | ₹57.70 · 142 in stock | View |
 | NTF5P03T3G-VB#C725134VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 21 | ₹29.66 · 21 in stock | View |
 | FDT434P-NL-VB#C6705264VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 224 | ₹63.21 · 224 in stock | View |
