VBsemi ElecDatasheet (PDF)

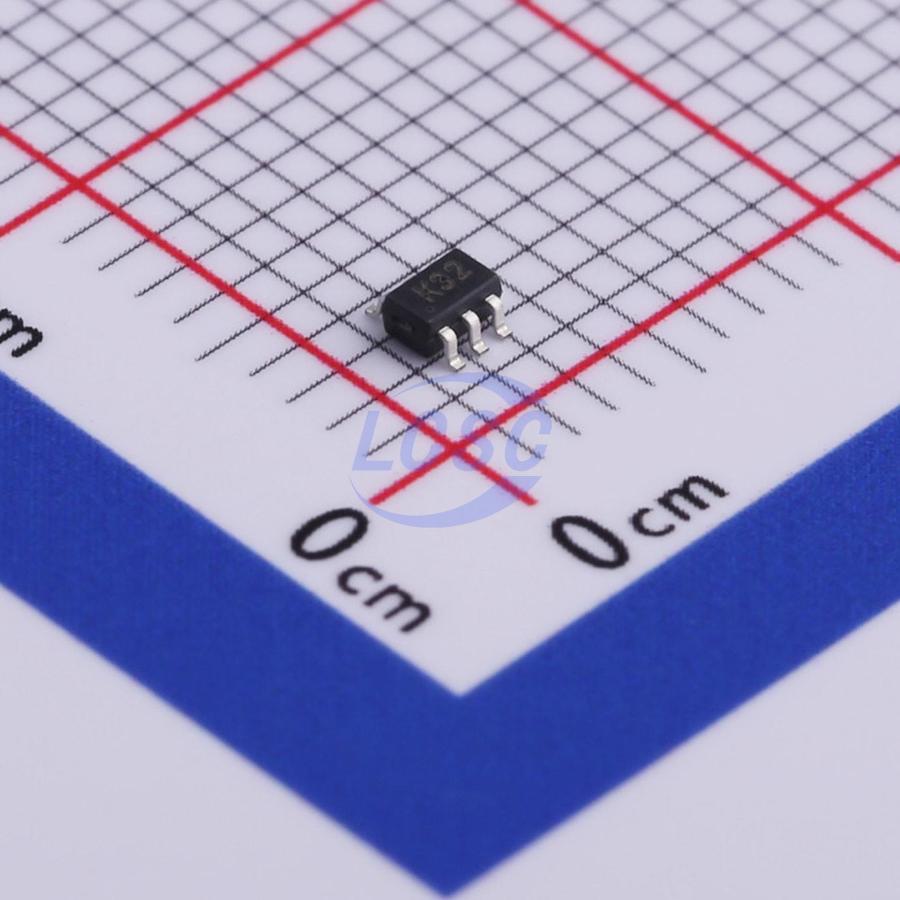

VBK3215N
N-Channel Array 20V 2.6A 1.5W Surface Mount SC-70-6
SC-70-6RoHSActive
MOSFET N-CH ARR 20V 2.6A SC-70-6
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBK3215N
- Store part #
- C516947
- Package / case
- SC-70-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C516947
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.28 | ₹151.40 |
| 50+ | ₹24.04 | ₹1,202.00 |
| 150+ | ₹21.35 | ₹3,202.50 |
| 500+ | ₹18.02 | ₹9,010.00 |
| 3,000+ | ₹14.33 | ₹42,990.00 |
| 6,000+ | ₹13.44 | ₹80,640.00 |
5 × ₹30.28
₹151.40
excl. GST
₹178.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
VBK3215N
₹151.40 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 2.6A
- Pd - Power Dissipation
- 1.5W
- RDS(on)
- 86mΩ@4.5V;110mΩ@2.5V;180mΩ@1.8V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 5nC@8V;3nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.13 g
Overview
Applications
- Load switch for portable applications
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% gate resistance (Rg) tested
- Compliant with RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PMGD280UN-VB#C7524968VBsemi Elec · SC70-6 | VBsemi Elec | SC70-6 | 40 | ₹30.39 · 40 in stock | View |
 | AO7800-VB#C557962VBsemi Elec · SC-70-6 | VBsemi Elec | SC-70-6 | 1,475 | ₹31.95 · 1,475 in stock | View |
 | FDG8850NZ-VB#C7494448VBsemi Elec · SC70-6 | VBsemi Elec | SC70-6 | 45 | ₹36.37 · 45 in stock | View |
 | SI1922EDH-T1-GE3-VB#C18212435VBsemi Elec · SC70-6 | VBsemi Elec | SC70-6 | 20 | ₹30.64 · 20 in stock | View |
 | SI1972DH-T1-GE3-VB#C20626254VBsemi Elec · SC-70-6 | VBsemi Elec | SC-70-6 | 50 | ₹30.28 · 50 in stock | View |
