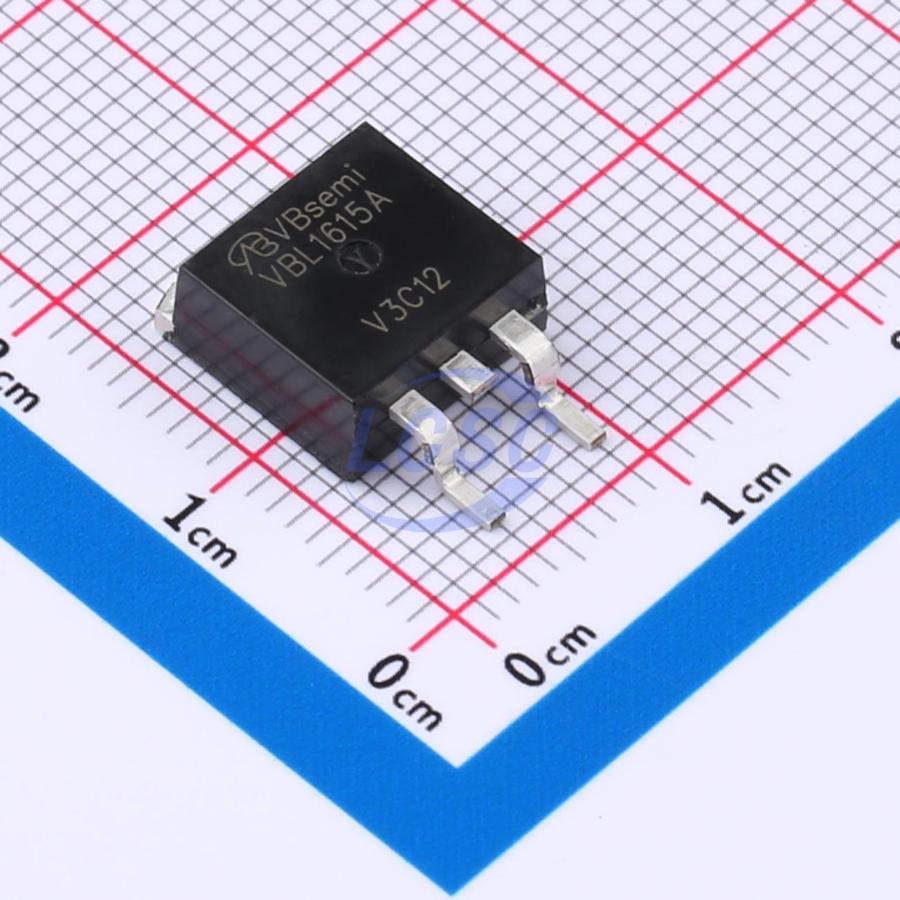

VBL1615A
N-Channel 60V 120A Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 60V 120A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBL1615A
- Store part #
- C967512
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C967512
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹126.88 | ₹126.88 |
| 10+ | ₹102.72 | ₹1,027.20 |
| 50+ | ₹90.74 | ₹4,537.00 |
| 100+ | ₹78.77 | ₹7,877.00 |
| 500+ | ₹71.64 | ₹35,820.00 |
| 1,000+ | ₹68.07 | ₹68,070.00 |
1 × ₹126.88
₹126.88
excl. GST
₹149.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBL1615A
₹126.88 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 470pF
- Current - Continuous Drain(Id)
- 120A
- Ciss-Input Capacitance
- 5.8nF
- Pd - Power Dissipation
- 136W
- Reverse Transfer Capacitance (Crss)
- 225pF
- RDS(on)
- 7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 47nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.226 g
Overview
Applications
- OR Gate - Server - DC/DC
Key features
- 175°C junction temperature
- Trench power MOSFET
- N-channel MOSFET
- RoHS compliant
