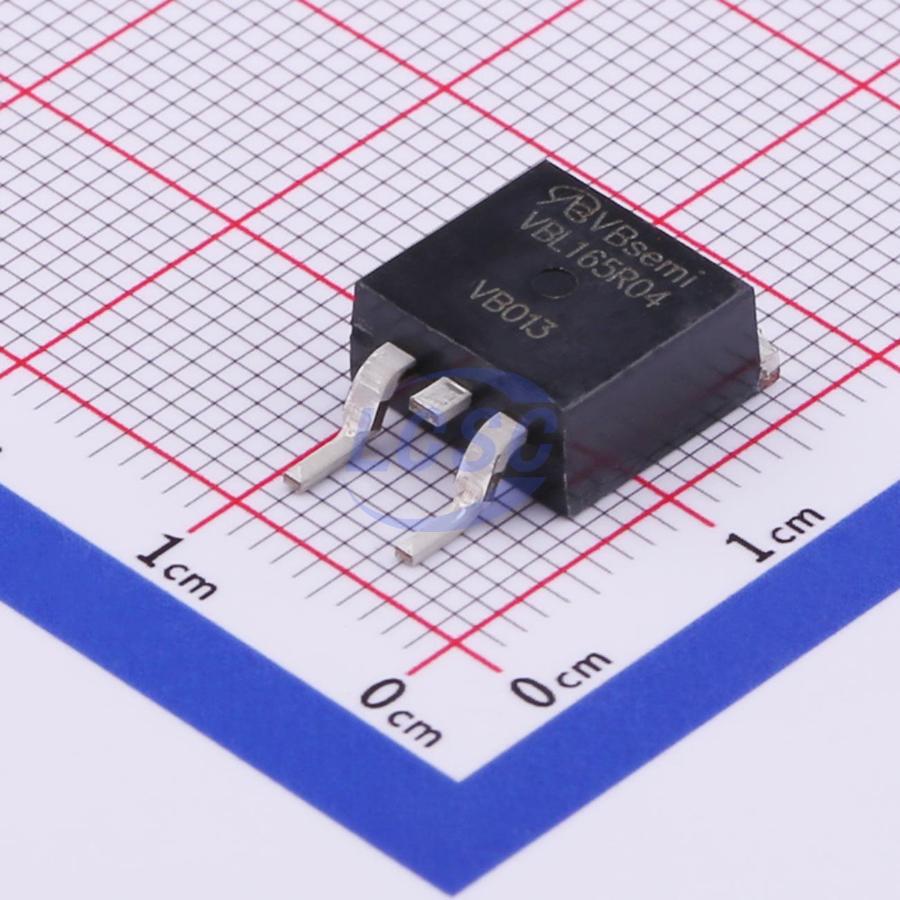

VBL165R04
N-Channel 650V 4.5A 60W Surface Mount TO-263(D2Pak)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 650V 4.5A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBL165R04
- Store part #
- C516950
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C516950
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.56 | ₹82.56 |
| 10+ | ₹67.01 | ₹670.10 |
| 30+ | ₹59.24 | ₹1,777.20 |
| 100+ | ₹51.68 | ₹5,168.00 |
| 500+ | ₹44.53 | ₹22,265.00 |
| 800+ | ₹42.23 | ₹33,784.00 |
1 × ₹82.56
₹82.56
excl. GST
₹97.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
VBL165R04
₹82.56 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 177pF
- Current - Continuous Drain(Id)
- 4.5A
- Ciss-Input Capacitance
- 1.417nF
- Pd - Power Dissipation
- 60W
- Reverse Transfer Capacitance (Crss)
- 7pF
- RDS(on)
- 2.1Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 48nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.15 g
Overview
Applications
- Automotive engine control
- Powertrain management
- Solenoid and motor drivers
- Integrated starter-generator
- 12V system main switch
Key features
- Low Gate Charge Qg Results in Simple Drive Requirement
- Improved Gate, Avalanche and Dynamic dV/dt Ruggedness
- Fully Characterized Capacitance and Avalanche Voltage and Current
- Compliant to RoHS directive 2002/95/EC
