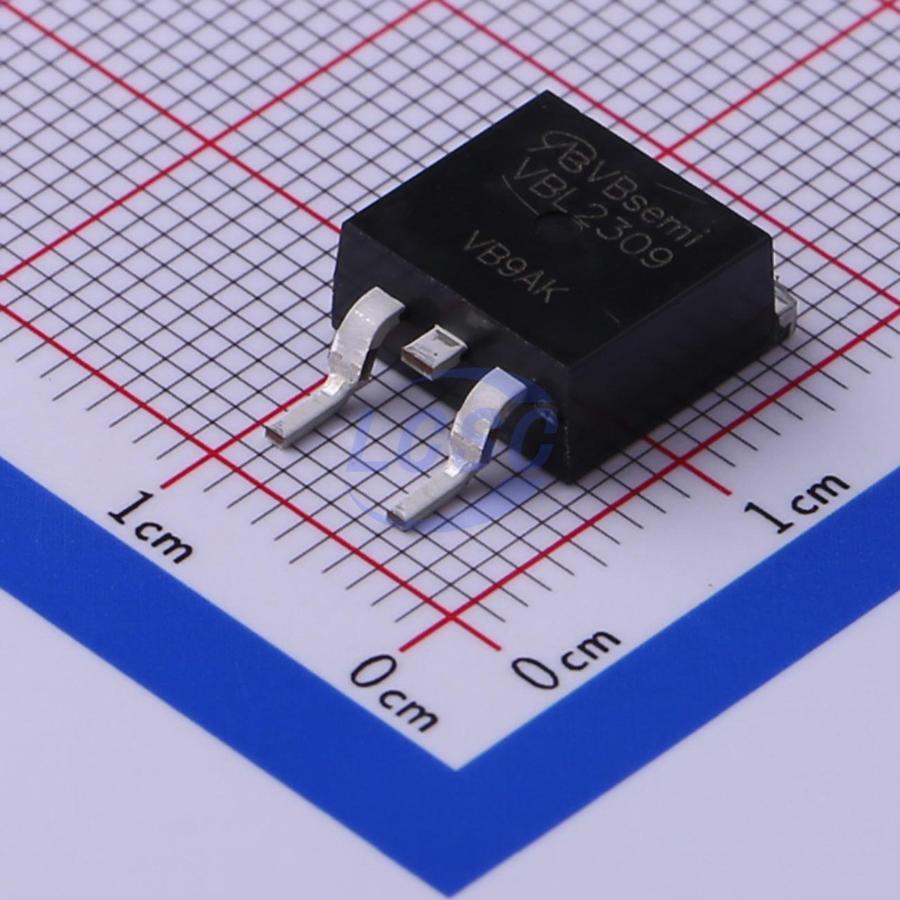

VBL2309
30V 75A 3.7W 8mΩ@10V 1 P-Channel TO-263 Single FETs, MOSFETs
TO-263RoHSActive
MOSFET P-CH 30V TO-263
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBL2309
- Store part #
- C480993
- Package / case
- TO-263
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C480993
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹135.20 | ₹135.20 |
| 10+ | ₹114.29 | ₹1,142.90 |
| 50+ | ₹79.90 | ₹3,995.00 |
| 100+ | ₹69.67 | ₹6,967.00 |
| 500+ | ₹63.36 | ₹31,680.00 |
| 1,000+ | ₹60.30 | ₹60,300.00 |
1 × ₹135.20
₹135.20
excl. GST
₹159.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBL2309
₹135.20 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 75A
- Ciss-Input Capacitance
- 4.55nF
- Pd - Power Dissipation
- 3.7W
- Reverse Transfer Capacitance (Crss)
- 570pF
- RDS(on)
- 8mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 56nC@4.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.69 g
Overview
Applications
- Load Switch - Notebook Adapter Switch
Key features
- Halogen-free
- Trench power MOSFET
- 100% gate resistance (Rg) tested
- 100% unclamped inductive switching (UIS) tested
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CEB05P03-VB#C19711208VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹107.14 · 10 in stock | View |
 | RF1S60P03SM-VB#C20417479VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹108.38 · 10 in stock | View |
 | SQM50P03-07-GE3-VB#C18794936VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 9 | ₹108.38 · 9 in stock | View |
 | SUB75P03-07-E3-VB#C19188227VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 4 | ₹110.07 · 4 in stock | View |
 | IPB45P03P4L-11-VB#C19711326VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 20 | ₹107.14 · 20 in stock | View |
