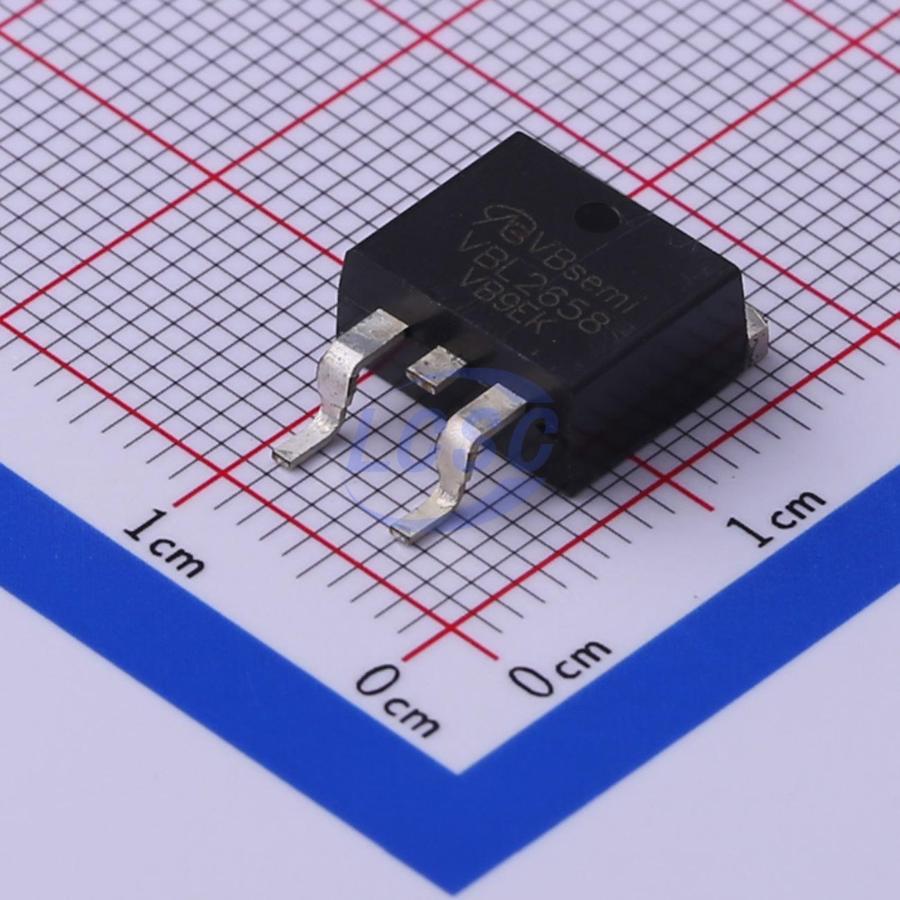

VBL2658
P-Channel 60V 35A Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET P-CH 60V 35A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBL2658
- Store part #
- C480995
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C480995
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹161.97 | ₹161.97 |
| 10+ | ₹137.16 | ₹1,371.60 |
| 30+ | ₹124.52 | ₹3,735.60 |
| 100+ | ₹83.39 | ₹8,339.00 |
| 500+ | ₹75.98 | ₹37,990.00 |
| 800+ | ₹72.28 | ₹57,824.00 |
1 × ₹161.97
₹161.97
excl. GST
₹191.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
VBL2658
₹161.97 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+100℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 200pF
- Current - Continuous Drain(Id)
- 35A
- Ciss-Input Capacitance
- 1.65nF
- Reverse Transfer Capacitance (Crss)
- 120pF
- RDS(on)
- 48mΩ@10V;60mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 67nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.63 g
Overview
Applications
- Power Switch - Load Switch for High-Current Applications - DC/DC Converter
Key features
- Halogen-free compliant per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FQB27P06TM-VB#C7428973VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 236 | ₹131.77 · 236 in stock | View |
 | IRF9Z24NSPBF-VB#C18212476VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 13 | ₹150.81 · 13 in stock | View |
 | IRF9Z24NSTRLPBF-VB#C18212477VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 14 | ₹128.56 · 14 in stock | View |
 | F9Z34NS-VB#C20417627VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 50 | ₹166.98 · 50 in stock | View |
 | 2SJ476-01S-VB#C29778752VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹123.52 · 10 in stock | View |
