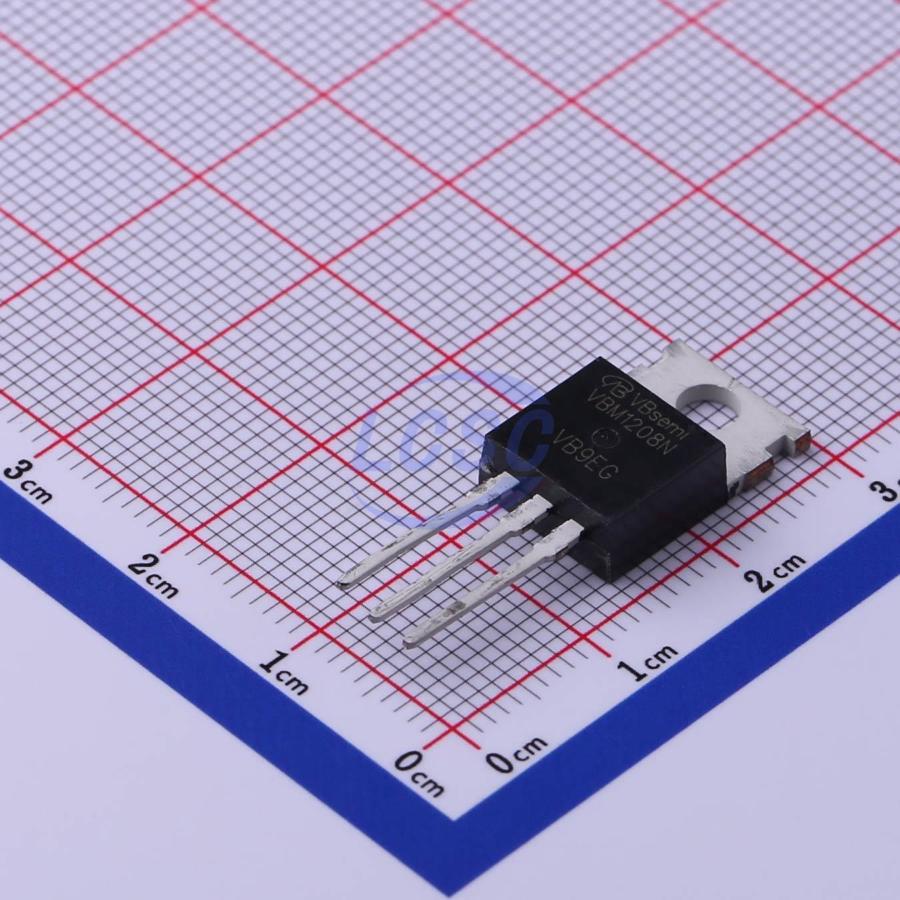

VBM1208N
200V 35A 300W 58mΩ@10V 1 N-channel ITO-220AB-3 Single FETs, MOSFETs
ITO-220AB-3RoHSActive
MOSFET N-CH 200V 35A ITO-220AB-3
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBM1208N
- Store part #
- C481007
- Package / case
- ITO-220AB-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C481007
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹302.25 | ₹302.25 |
| 10+ | ₹268.89 | ₹2,688.90 |
| 50+ | ₹192.68 | ₹9,634.00 |
| 100+ | ₹171.37 | ₹17,137.00 |
| 500+ | ₹161.68 | ₹80,840.00 |
| 1,000+ | ₹157.37 | ₹1,57,370.00 |
1 × ₹302.25
₹302.25
excl. GST
₹356.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBM1208N
₹302.25 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 200V
- Current - Continuous Drain(Id)
- 35A
- Ciss-Input Capacitance
- 2.69nF
- Pd - Power Dissipation
- 300W
- Reverse Transfer Capacitance (Crss)
- 110pF
- RDS(on)
- 58mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 140nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.69 g
Overview
Applications
- Industrial sector
Key features
- Trench power MOSFET
- 175°C junction temperature
- New low thermal resistance package
- RoHS compliant (Directive 2002/95/EC)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FS16KM-9-VB#C22389643VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 5 | ₹185.27 · 5 in stock | View |
 | FDPF390N15A-VB#C18795069VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 27 | ₹294.42 · 27 in stock | View |
 | RJK2017DPP-M0-VB#C20417620VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 10 | ₹302.48 · 10 in stock | View |
 | 2SK3209-VB#C20417716VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 10 | ₹316.13 · 10 in stock | View |
 | IRFI4227PBF-VB#C20626287VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 6 | ₹415.70 · 6 in stock | View |
