VBsemi ElecDatasheet (PDF)

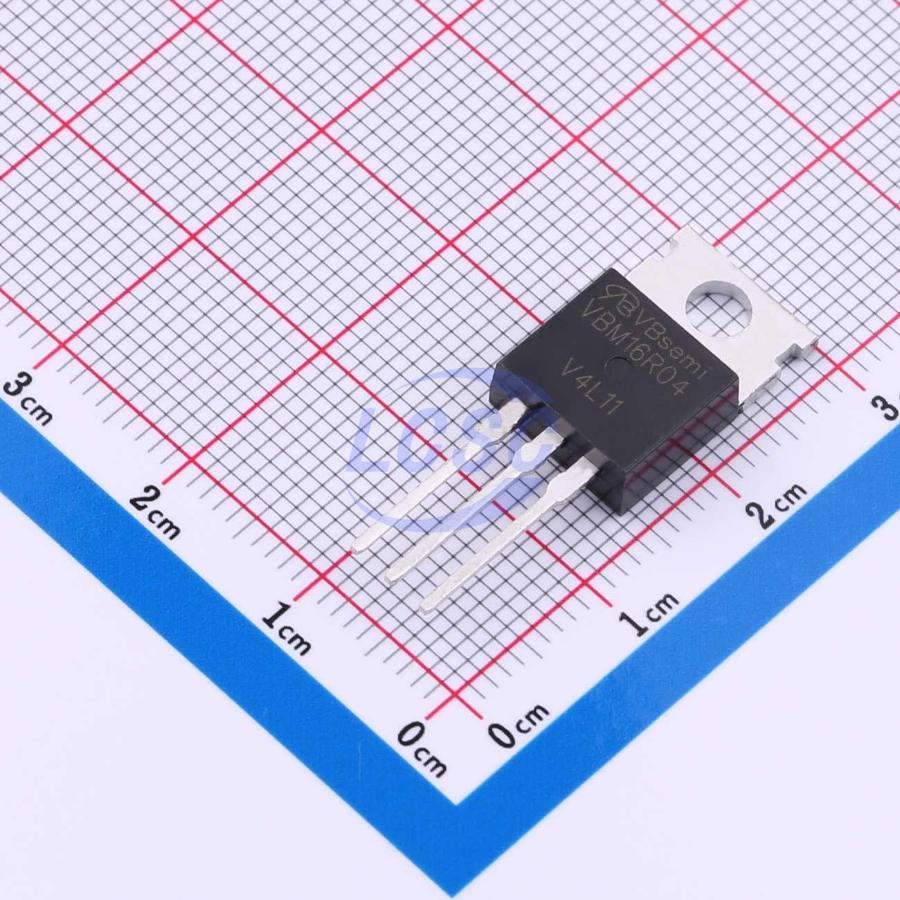

VBM16R04
N-Channel 600V 4A 125W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 600V 4A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBM16R04
- Store part #
- C42412715
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C42412715
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹111.69 | ₹111.69 |
| 10+ | ₹95.57 | ₹955.70 |
| 50+ | ₹87.74 | ₹4,387.00 |
| 100+ | ₹79.68 | ₹7,968.00 |
| 500+ | ₹48.77 | ₹24,385.00 |
| 1,000+ | ₹46.37 | ₹46,370.00 |
1 × ₹111.69
₹111.69
excl. GST
₹131.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBM16R04
₹111.69 for 1 + GST
Specifications
- Drain to Source Voltage
- 600V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 4A
- Output Capacitance(Coss)
- 140pF
- Ciss-Input Capacitance
- 1.1nF
- Pd - Power Dissipation
- 125W
- Reverse Transfer Capacitance (Crss)
- 15pF
- RDS(on)
- 2.2Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 39nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.6 g
Overview
Key features
- Ultra Low Gate Charge
- Reduced Gate Drive Requirement
- Enhanced 30 V, VGS Rating
- Reduced Ciss, Coss, Crss
- Extremely High Frequency Operation
- Repetitive Avalanche Rated
- Compliant to RoHS Directive 2002/95/EC
