VBsemi ElecDatasheet (PDF)

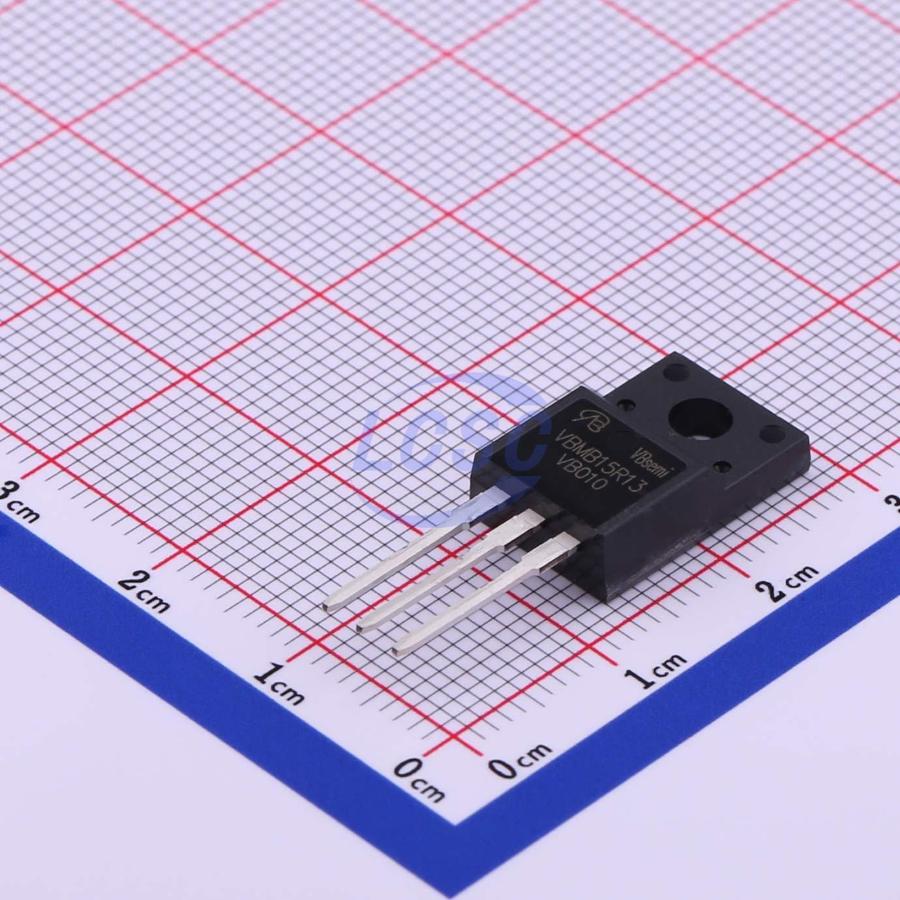

VBMB15R13
N-Channel 500V 13A 250W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 500V 13A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBMB15R13
- Store part #
- C516964
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
39 in stock
#C516964
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹134.73 | ₹134.73 |
| 10+ | ₹112.38 | ₹1,123.80 |
| 50+ | ₹93.62 | ₹4,681.00 |
| 100+ | ₹79.64 | ₹7,964.00 |
| 500+ | ₹73.45 | ₹36,725.00 |
| 1,000+ | ₹70.66 | ₹70,660.00 |
1 × ₹134.73
₹134.73
excl. GST
₹158.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBMB15R13
₹134.73 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 500V
- Current - Continuous Drain(Id)
- 13A
- Ciss-Input Capacitance
- 1.91nF
- Pd - Power Dissipation
- 250W
- Reverse Transfer Capacitance (Crss)
- 11pF
- RDS(on)
- 800mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 81nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.792 g
Overview
Applications
- Switch Mode Power Supply (SMPS)
- Uninterruptible Power Supplies
- High Speed Power Switching
Key features
- Lower Gate Charge Qg Results in Simpler Drive Reqirements
- Improved Gate, Avalanche and Dynamic dV/dt Ruggedness
- Fully Characterized Capacitance and Avalanche Voltage
- Compliant to RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VBZMB13N50#C700732VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 100 | ₹109.19 · 100 in stock | View |
 | FCPF220N80-VB#C22357313VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 5 | ₹537.32 · 5 in stock | View |
 | VBMB18R18S#C22357316VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 5 | ₹537.32 · 5 in stock | View |
 | FCPF400N80Z-VB#C19711238VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 7 | ₹416.89 · 7 in stock | View |
 | IPA95R450P7XKSA1-VB#C22395951VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 4 | ₹406.88 · 4 in stock | View |
