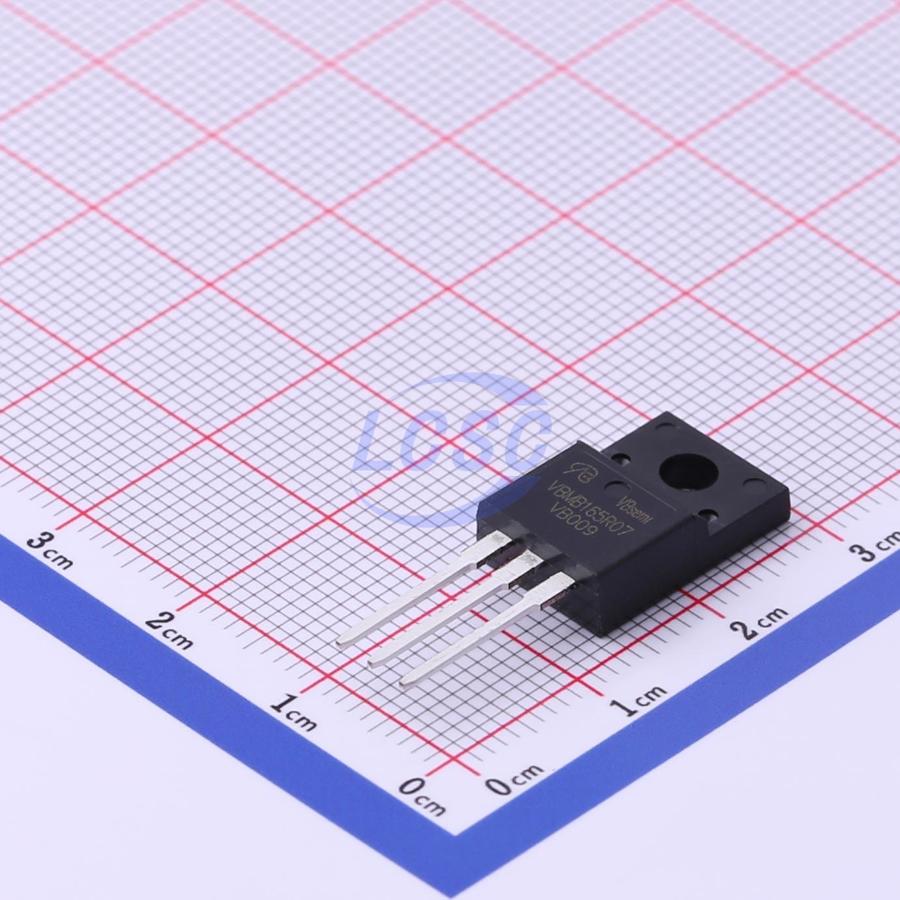

VBMB165R07
N-Channel 650V 5.6A 83W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 650V 5.6A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBMB165R07
- Store part #
- C516966
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
34 in stock
#C516966
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹123.37 | ₹123.37 |
| 10+ | ₹100.34 | ₹1,003.40 |
| 50+ | ₹88.60 | ₹4,430.00 |
| 100+ | ₹77.29 | ₹7,729.00 |
| 500+ | ₹70.38 | ₹35,190.00 |
| 1,000+ | ₹66.82 | ₹66,820.00 |
1 × ₹123.37
₹123.37
excl. GST
₹145.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBMB165R07
₹123.37 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Current - Continuous Drain(Id)
- 5.6A
- Ciss-Input Capacitance
- 860pF
- Pd - Power Dissipation
- 83W
- Reverse Transfer Capacitance (Crss)
- 15pF
- RDS(on)
- 1.1Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 25nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.324 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
- Industrial
Key features
- Low figure-of-merit (FOM) R_on×Q_g
- Low input capacitance (C_iss)
- Reduced switching and conduction losses
- Ultra low gate charge (Q_g)
- Avalanche energy rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VBZMB7N65#C700739VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 76 | ₹117.58 · 76 in stock | View |
 | STF5NK52ZD-VB#C18795009VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 20 | ₹123.73 · 20 in stock | View |
 | KF5N53FS-VB#C19190158VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 20 | ₹123.73 · 20 in stock | View |
 | STP7NA60FI-VB#C19190175VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 14 | ₹125.17 · 14 in stock | View |
 | STF6N62K3-VB#C19626692VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 46 | ₹118.90 · 46 in stock | View |
