VBsemi ElecDatasheet (PDF)

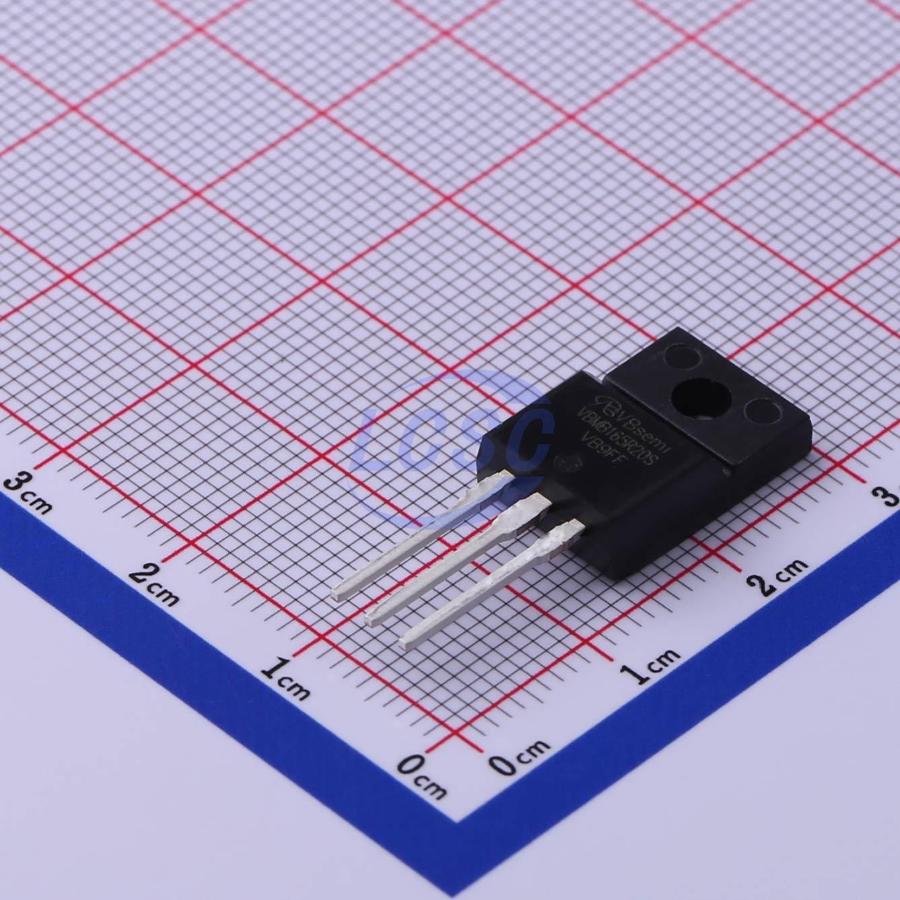

VBMB165R20S
N-Channel 650V 13A 208W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 650V 13A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBMB165R20S
- Store part #
- C481040
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23 in stock
#C481040
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹363.60 | ₹363.60 |
| 10+ | ₹310.19 | ₹3,101.90 |
| 50+ | ₹276.68 | ₹13,834.00 |
| 100+ | ₹242.33 | ₹24,233.00 |
| 500+ | ₹226.83 | ₹1,13,415.00 |
| 1,000+ | ₹220.13 | ₹2,20,130.00 |
1 × ₹363.60
₹363.60
excl. GST
₹429.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBMB165R20S
₹363.60 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 105pF
- Current - Continuous Drain(Id)
- 13A
- Ciss-Input Capacitance
- 2.322nF
- Pd - Power Dissipation
- 208W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 190mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 106nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.64 g
Overview
Applications
- Telecommunications - Server and telecom power supplies
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
- Consumer and computing - ATX power supplies
- Industrial - Welding - Battery chargers
- Renewable energy - Solar (PV inverters)
- Switch mode power supplies (SMPS)
Key features
- Reduced trr, Qrr, and IRRM
- Low figure-of-merit (FOM) R(on)×Qg
- Low input capacitance (Ciss)
- Low switching losses due to reduced Qrr
- Ultra low gate charge (Qg)
- Avalanche energy rated (UIS)
