VBsemi ElecDatasheet (PDF)

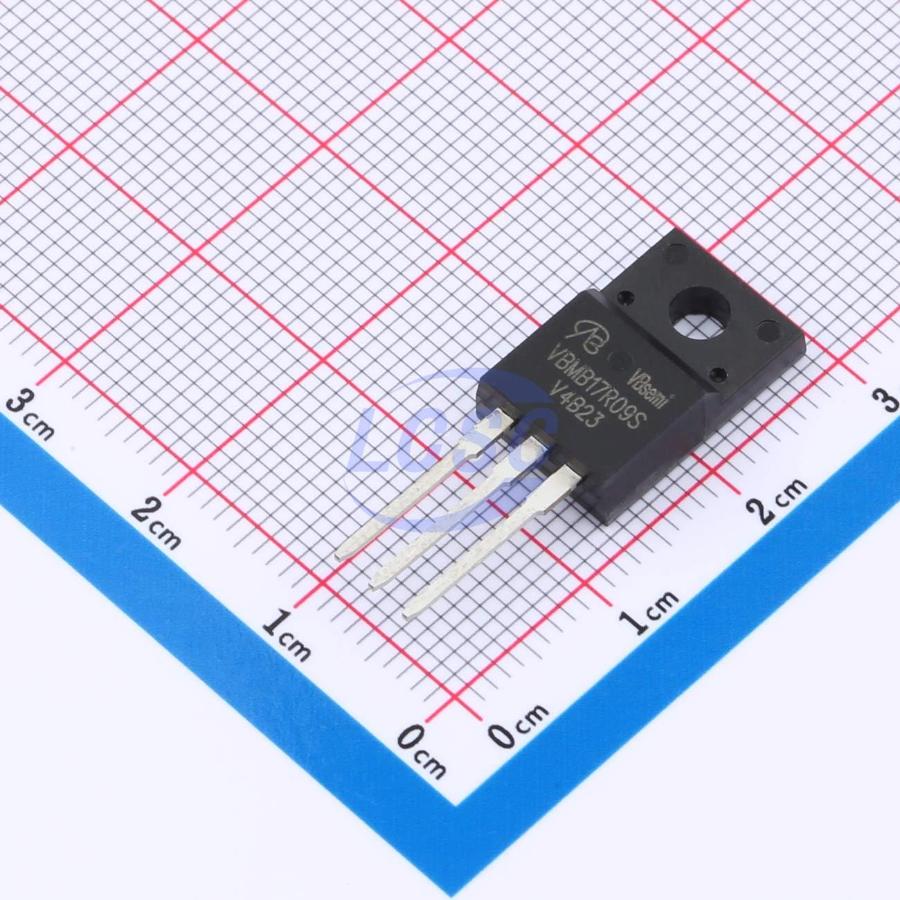

VBMB17R09S
N-Channel 700V 9A Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 700V 9A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBMB17R09S
- Store part #
- C22357288
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C22357288
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹173.09 | ₹173.09 |
| 10+ | ₹143.06 | ₹1,430.60 |
| 50+ | ₹126.66 | ₹6,333.00 |
| 100+ | ₹108.18 | ₹10,818.00 |
| 500+ | ₹99.78 | ₹49,890.00 |
| 1,000+ | ₹96.21 | ₹96,210.00 |
1 × ₹173.09
₹173.09
excl. GST
₹204.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBMB17R09S
₹173.09 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 700V
- Output Capacitance(Coss)
- 80pF
- Current - Continuous Drain(Id)
- 9A
- Ciss-Input Capacitance
- 2.3nF
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 550mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 15nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.16 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
- Industrial
Key features
- Low figure-of-merit (FOM) R_on×Q_g
- Low input capacitance (C_iss)
- Reduced switching and conduction losses
- Ultra low gate charge (Q_g)
- Avalanche energy rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AOTF600A70FL-VB#C22357287VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 5 | ₹173.09 · 5 in stock | View |
 | NTPF600N80S3Z-VB#C22357319VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 5 | ₹290.93 · 5 in stock | View |
 | STF10N80K5-VB#C22357320VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 5 | ₹290.93 · 5 in stock | View |
 | TK14A65W5-VB#C22357283VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 5 | ₹261.73 · 5 in stock | View |
 | VBMB17R18S#C22357390VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 5 | ₹261.73 · 5 in stock | View |
