VBsemi ElecDatasheet (PDF)

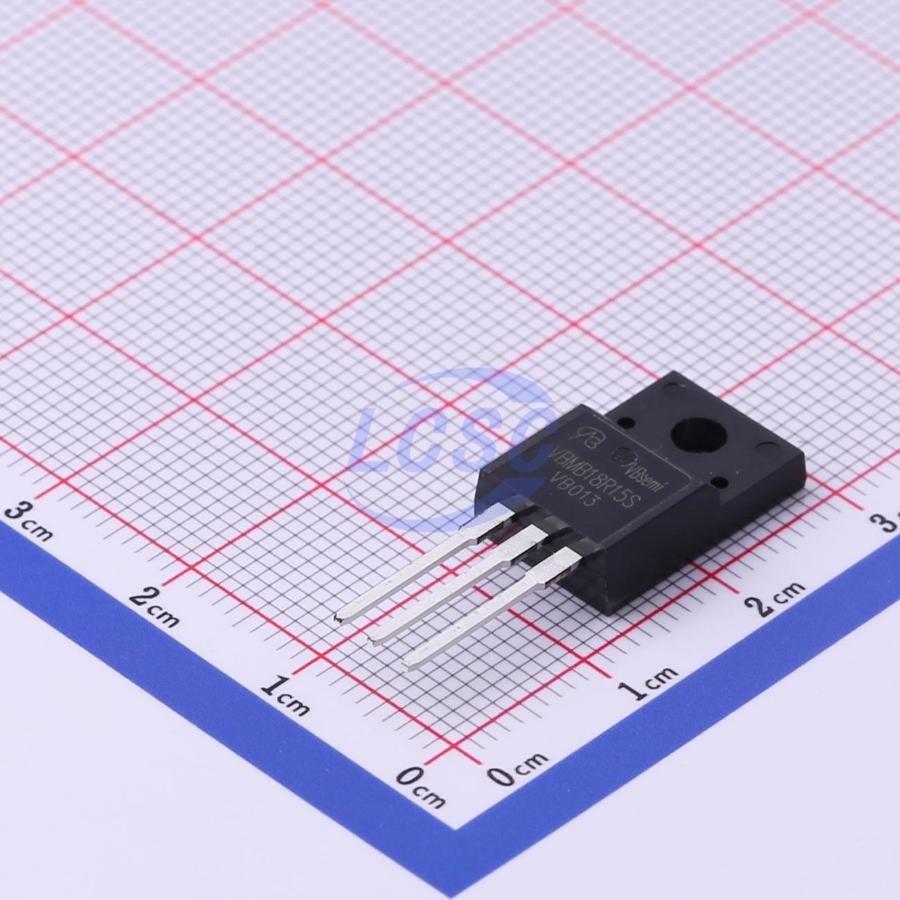

VBMB18R15S
N-Channel 800V 12A 208W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 800V 12A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBMB18R15S
- Store part #
- C516969
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6 in stock
#C516969
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹334.93 | ₹334.93 |
| 10+ | ₹284.03 | ₹2,840.30 |
| 50+ | ₹236.74 | ₹11,837.00 |
| 100+ | ₹203.99 | ₹20,399.00 |
| 500+ | ₹189.23 | ₹94,615.00 |
| 1,000+ | ₹182.84 | ₹1,82,840.00 |
1 × ₹334.93
₹334.93
excl. GST
₹395.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBMB18R15S
₹334.93 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 800V
- Output Capacitance(Coss)
- 80pF
- Current - Continuous Drain(Id)
- 12A
- Ciss-Input Capacitance
- 1.72nF
- Pd - Power Dissipation
- 208W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 380mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 96nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.96 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
Key features
- Low figure-of-merit (FOM) R_on×Q_g
- Low input capacitance (C_iss)
- Reduced switching and conduction losses
- Ultra low gate charge (Q_g)
- Avalanche energy rated (UIS)
