VBsemi ElecDatasheet (PDF)

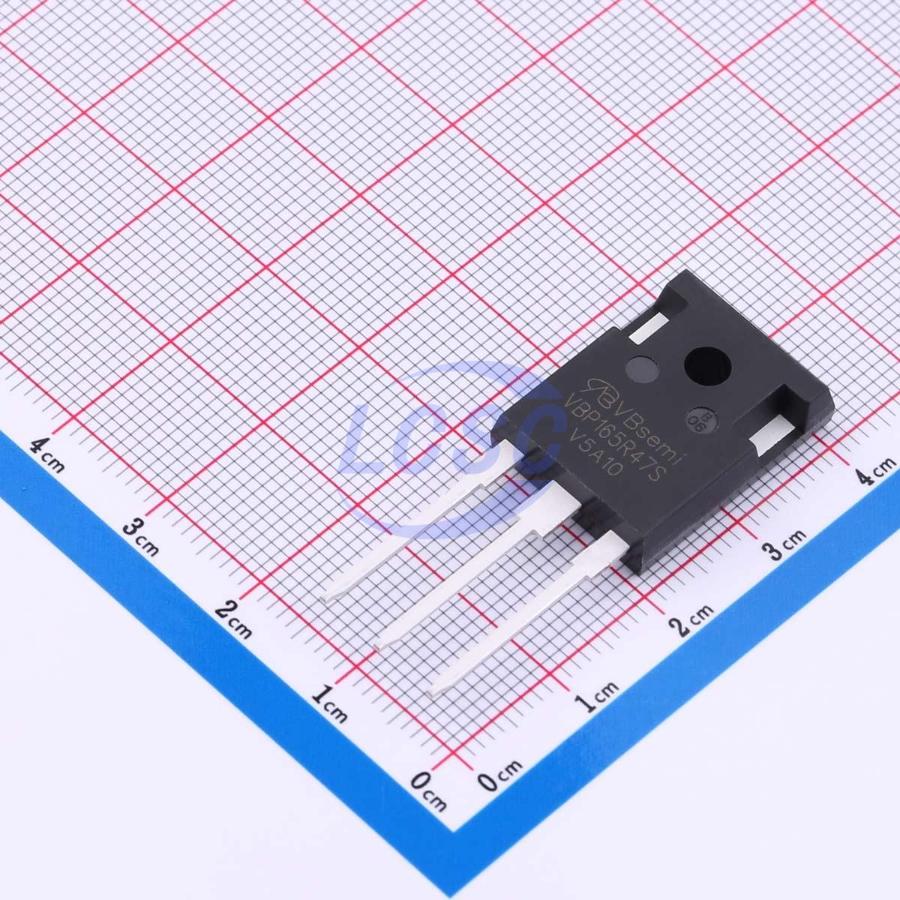

VBP165R47S
N-Channel 650V 47A 415W Through Hole TO-247AC
TO-247ACRoHSActive
MOSFET N-CH 650V 47A TO-247AC
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBP165R47S
- Store part #
- C42412831
- Package / case
- TO-247AC
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C42412831
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹894.73 | ₹894.73 |
| 10+ | ₹788.27 | ₹7,882.70 |
| 30+ | ₹631.10 | ₹18,933.00 |
| 90+ | ₹576.67 | ₹51,900.30 |
1 × ₹894.73
₹894.73
excl. GST
₹1,055.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
VBP165R47S
₹894.73 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Current - Continuous Drain(Id)
- 47A
- Pd - Power Dissipation
- 415W
- RDS(on)
- 60mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 273nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.4 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
- Industrial - Welding - Induction heating - Motor drives - Battery chargers - Renewable energy - Solar (PV inverters)
Key features
- Low figure-of-merit (FOM) R(on)×Q(g)
- Low input capacitance (C(iss))
- Reduced switching and conduction losses
- Ultra low gate charge (Qg)
- Avalanche energy rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IXKR40N60C-VB#C22389526VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 3 | ₹729.73 · 3 in stock | View |
 | AOK27S60L-VB#C45350878VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 12 | ₹877.89 · 12 in stock | View |
 | APT30M70BVR-VB#C45350882VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 10 | ₹1,117.00 · 10 in stock | View |
 | APT30N60BC6-VB#C45350884VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 10 | ₹1,117.00 · 10 in stock | View |
 | APT34M60B-VB#C45350886VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 10 | ₹1,117.00 · 10 in stock | View |
