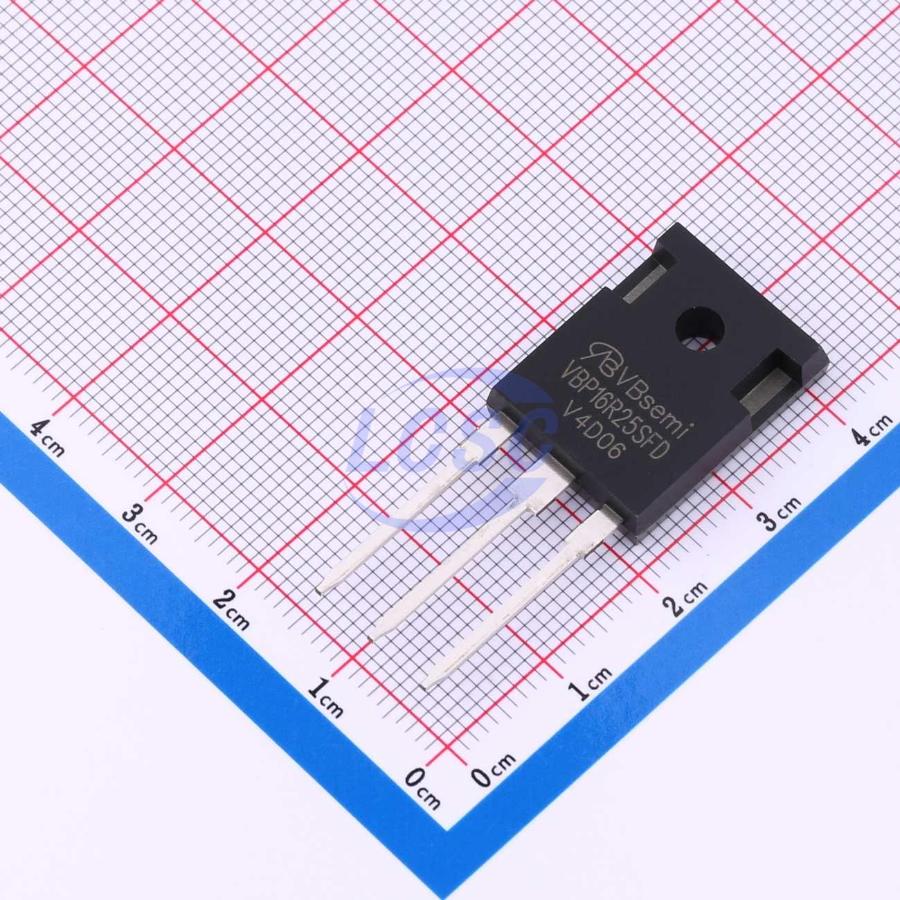

VBP16R25SFD
N-Channel 600V 25A 155W Through Hole TO-247AC
TO-247ACRoHSActive
MOSFET N-CH 600V 25A TO-247AC
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBP16R25SFD
- Store part #
- C22357364
- Package / case
- TO-247AC
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C22357364
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹517.99 | ₹517.99 |
| 10+ | ₹442.79 | ₹4,427.90 |
| 30+ | ₹398.05 | ₹11,941.50 |
| 90+ | ₹352.90 | ₹31,761.00 |
| 600+ | ₹332.10 | ₹1,99,260.00 |
| 900+ | ₹322.85 | ₹2,90,565.00 |
1 × ₹517.99
₹517.99
excl. GST
₹611.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
VBP16R25SFD
₹517.99 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Output Capacitance(Coss)
- 80pF
- Current - Continuous Drain(Id)
- 25A
- Ciss-Input Capacitance
- 2.8nF
- Pd - Power Dissipation
- 155W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 120mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 58nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.1 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
- Industrial
Key features
- Low figure-of-merit (FOM) Rₒₙ×Q₉
- Ultra-fast body diode
- Reduced switching and conduction losses
- Ultra low gate charge (Ω₉)
- Avalanche energy rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPW60R120P7-VB#C22357121VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹517.99 · 5 in stock | View |
 | STW33N60M6-VB#C22357122VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹517.99 · 5 in stock | View |
 | AOK125A60-VB#C22357124VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹517.99 · 5 in stock | View |
 | SiHG35N60E-VB#C22357114VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹602.85 · 5 in stock | View |
 | FCH104N60F-VB#C22357115VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹602.85 · 5 in stock | View |
