MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
VBsemi ElecDatasheet (PDF)

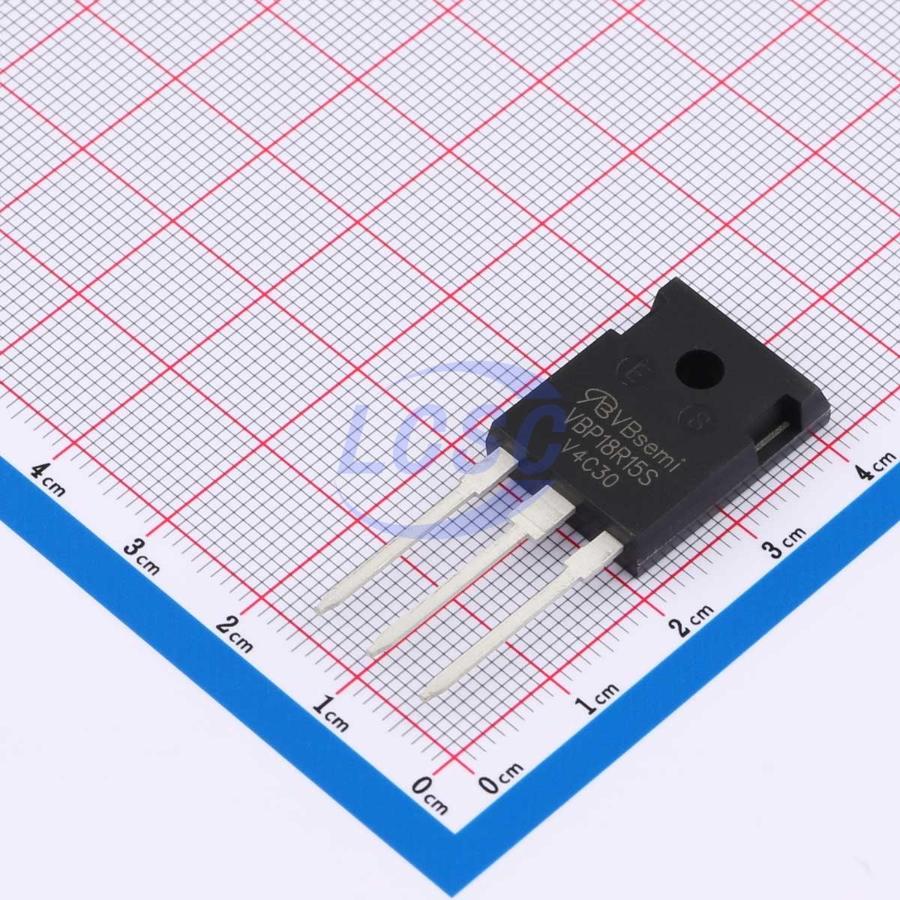

VBP18R15S
N-Channel 800V 15A 6W Through Hole TO-247AC
TO-247ACRoHSActive
MOSFET N-CH 800V 15A TO-247AC
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBP18R15S
- Store part #
- C22357397
- Package / case
- TO-247AC
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C22357397
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹394.69 | ₹394.69 |
| 10+ | ₹337.35 | ₹3,373.50 |
| 30+ | ₹303.32 | ₹9,099.60 |
| 90+ | ₹268.87 | ₹24,198.30 |
| 600+ | ₹253.12 | ₹1,51,872.00 |
| 900+ | ₹245.97 | ₹2,21,373.00 |
1 × ₹394.69
₹394.69
excl. GST
₹465.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
VBP18R15S
₹394.69 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 800V
- Output Capacitance(Coss)
- 330pF
- Current - Continuous Drain(Id)
- 15A
- Ciss-Input Capacitance
- 1.8nF
- Pd - Power Dissipation
- 6W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 370mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 38nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.5 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
Key features
- Low figure-of-merit (FOM) Ron×Qg
- Low input capacitance (Ciss)
- Reduced switching and conduction losses
- Ultra low gate charge (Qg)
- Avalanche energy rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SiHG24N80AE-VB#C22357328VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 30 | ₹660.27 · 30 in stock | View |
 | STW30N80K5-VB#C22357329VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 3 | ₹548.24 · 3 in stock | View |
 | SiHG21N80AE-VB#C22357330VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 10 | ₹660.27 · 10 in stock | View |
 | SiHG21N80AEF-VB#C22357331VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 10 | ₹660.27 · 10 in stock | View |
 | STW25N80K5-VB#C22357332VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 1 | ₹548.24 · 1 in stock | View |
