VBsemi ElecDatasheet (PDF)

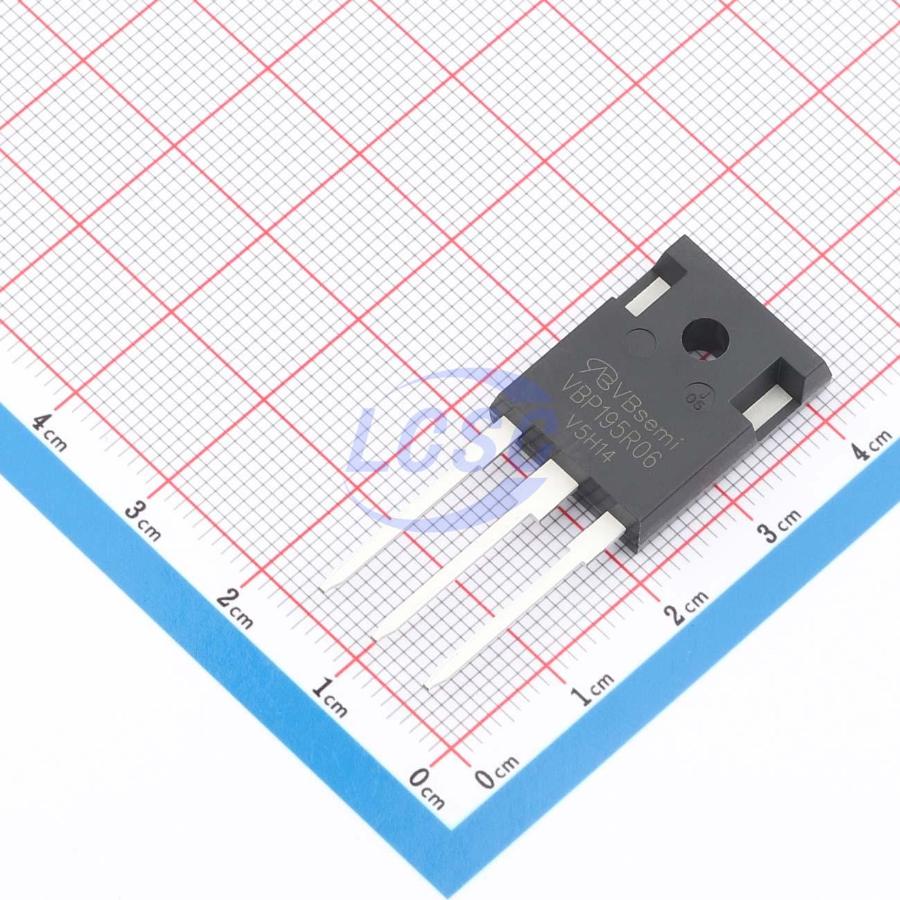

VBP195R06
950V 6.1A 190W 2Ω@10V 1 N-channel N-Channel TO-247AC Single FETs, MOSFETs
TO-247ACRoHSActive
MOSFET N-CH 950V 6.1A TO-247AC
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBP195R06
- Store part #
- C50387050
- Package / case
- TO-247AC
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C50387050
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹393.74 | ₹393.74 |
| 10+ | ₹338.64 | ₹3,386.40 |
| 30+ | ₹304.41 | ₹9,132.30 |
| 90+ | ₹269.10 | ₹24,219.00 |
| 510+ | ₹253.17 | ₹1,29,116.70 |
| 990+ | ₹246.28 | ₹2,43,817.20 |
1 × ₹393.74
₹393.74
excl. GST
₹464.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
VBP195R06
₹393.74 for 1 + GST
Specifications
- Drain to Source Voltage
- 950V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 250pF
- Current - Continuous Drain(Id)
- 6.1A
- Ciss-Input Capacitance
- 2.8nF
- Pd - Power Dissipation
- 190W
- Reverse Transfer Capacitance (Crss)
- 84pF
- RDS(on)
- 2Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 190nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 25.075 g
Overview
Key features
- Dynamic dV/dt rated
- Repetitive avalanche rated
- Isolated center mounting hole
- Fast switching
- Easy to parallel
- Simple drive requirement
- RoHS compliant (Directive 2002/95/EC)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFPF50PBF-VB#C50387023VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 3 | ₹434.61 · 3 in stock | View |
| STW12N120K5-VB#C45662523VBsemi Elec · TO-247 | VBsemi Elec | TO-247 | On request | ₹530.07 · 0 in stock | View | |
| VBP19R09S#C42412791VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | On request | ₹705.66 · 0 in stock | View | |
