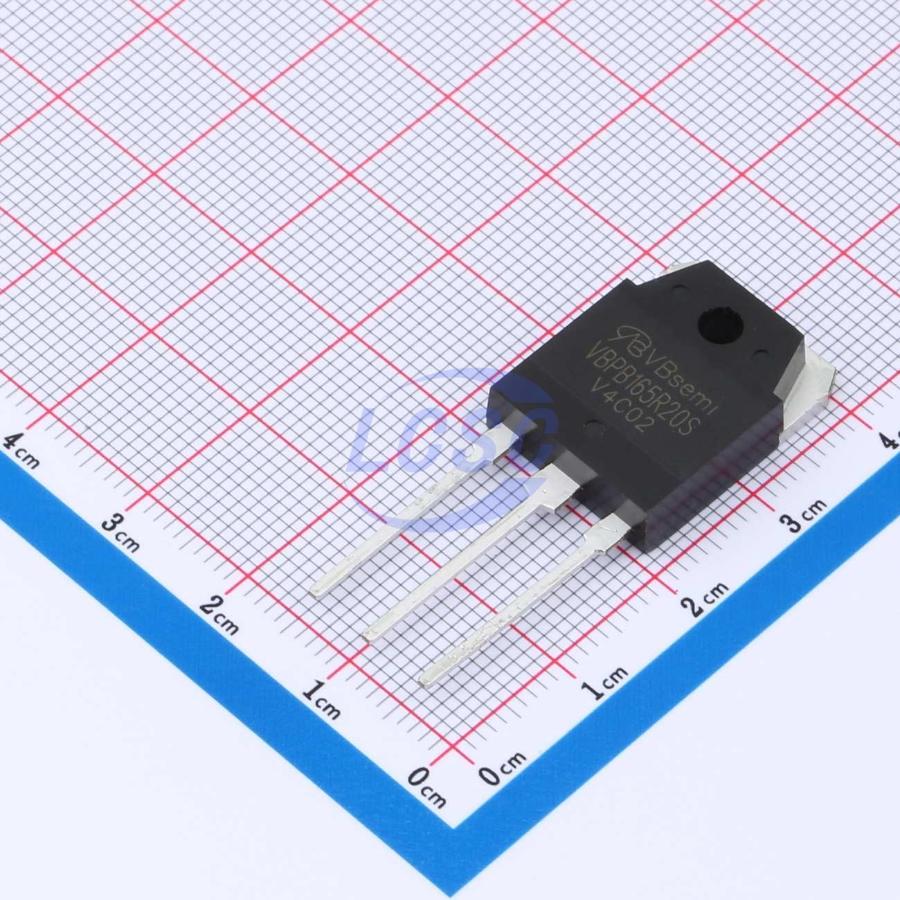

VBPB165R20S
N-Channel 650V 20A 200W Through Hole TO-3P
TO-3PRoHSActive
MOSFET N-CH 650V 20A TO-3P
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBPB165R20S
- Store part #
- C22372740
- Package / case
- TO-3P
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C22372740
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹438.39 | ₹438.39 |
| 10+ | ₹374.74 | ₹3,747.40 |
| 30+ | ₹336.93 | ₹10,107.90 |
| 90+ | ₹298.69 | ₹26,882.10 |
| 600+ | ₹281.06 | ₹1,68,636.00 |
| 900+ | ₹273.28 | ₹2,45,952.00 |
1 × ₹438.39
₹438.39
excl. GST
₹517.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
VBPB165R20S
₹438.39 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 330pF
- Current - Continuous Drain(Id)
- 20A
- Ciss-Input Capacitance
- 2.3nF
- Pd - Power Dissipation
- 200W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 160mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 213nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 18.6 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
Key features
- Low figure-of-merit (FOM) Rₒₙ×Q₉
- Low input capacitance (Cᵢₛₛ)
- Reduced switching and conduction losses
- Ultra low gate charge (Ω₉)
- Avalanche energy rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VBPB16R20S#C42412814VBsemi Elec · TO-3P | VBsemi Elec | TO-3P | 5 | ₹647.21 · 5 in stock | View |
 | IXTQ30N60P-VB#C29779097VBsemi Elec · TO-3P | VBsemi Elec | TO-3P | 5 | ₹528.13 · 5 in stock | View |
 | IXTQ48N65X2M-VB#C46527466VBsemi Elec · TO-3P | VBsemi Elec | TO-3P | 5 | ₹659.29 · 5 in stock | View |
 | IXFQ28N60P3-VB#C54177234VBsemi Elec · TO-3P | VBsemi Elec | TO-3P | 10 | ₹595.18 · 10 in stock | View |
| 2SK1169-VB#C54176927VBsemi Elec · TO-3P | VBsemi Elec | TO-3P | On request | ₹727.89 · 0 in stock | View | |
