VBsemi ElecDatasheet (PDF)

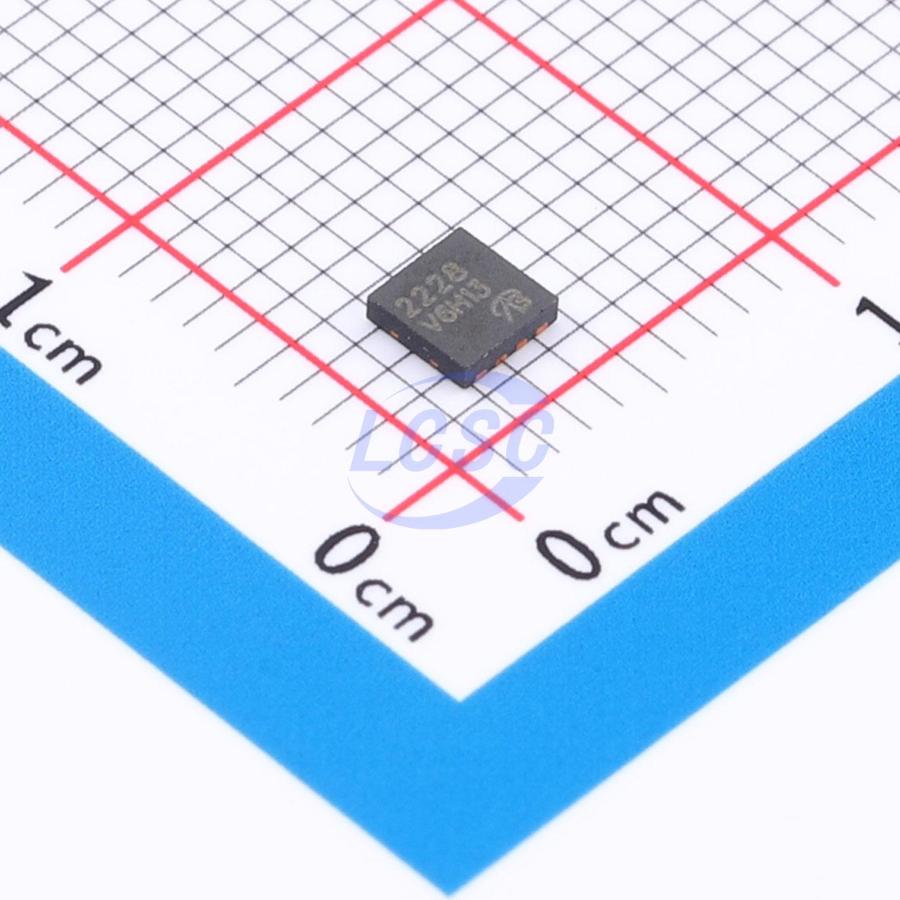

VBQF2228
20V 12A 19W 21mΩ@4.5V 1 P-Channel P-Channel DFN-8(3x3) Single FETs, MOSFETs
DFN-8(3x3)RoHSActive
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBQF2228
- Store part #
- C42412476
- Package / case
- DFN-8(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C42412476
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹96.01 | ₹96.01 |
| 10+ | ₹78.15 | ₹781.50 |
| 30+ | ₹69.01 | ₹2,070.30 |
| 100+ | ₹60.09 | ₹6,009.00 |
| 500+ | ₹54.86 | ₹27,430.00 |
| 1,000+ | ₹52.03 | ₹52,030.00 |
1 × ₹96.01
₹96.01
excl. GST
₹113.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
VBQF2228
₹96.01 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 450pF
- Current - Continuous Drain(Id)
- 12A
- Ciss-Input Capacitance
- 1.8nF
- Pd - Power Dissipation
- 19W
- Reverse Transfer Capacitance (Crss)
- 390pF
- RDS(on)
- 21mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 23nC
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.102 g
Overview
Applications
- Load switch, power amplifier switch, and battery switch for portable devices
Key features
- Trench power MOSFET
- Thermally enhanced DFN3X3 package
- Small footprint
- Low on-resistance
