VISHAYDatasheet (PDF)

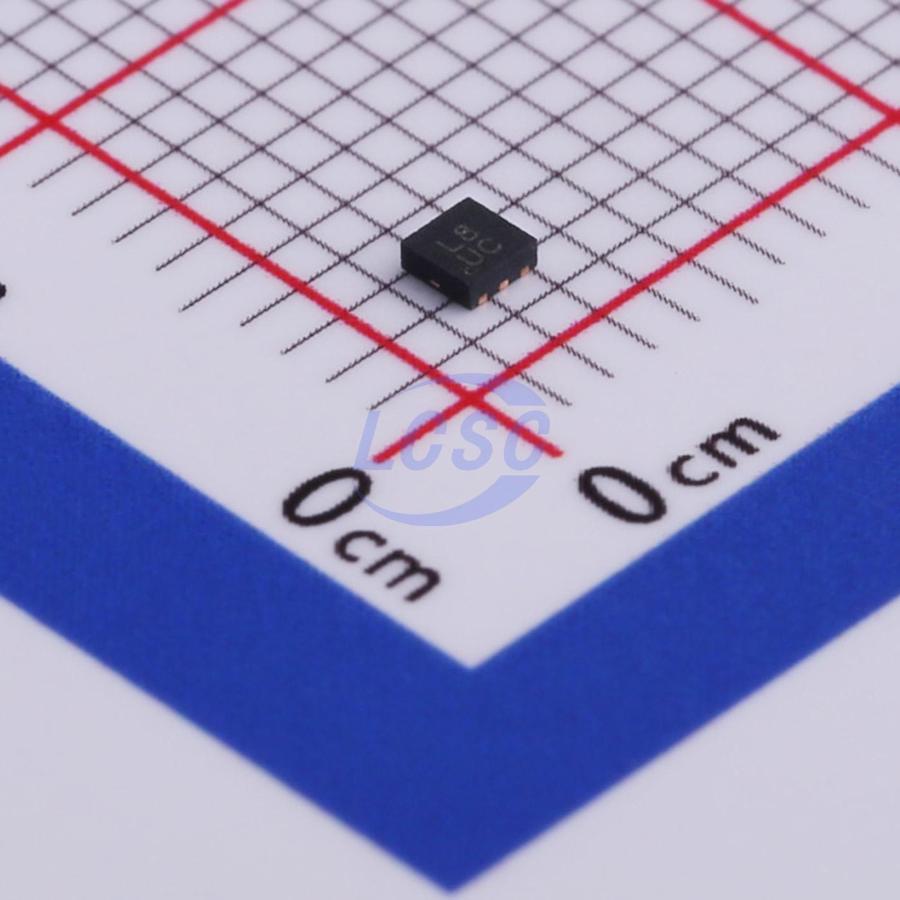

VBUS54CV-HSF-G4-08
22VC Clamp 11A@8/20us Ipp ESD DIODE UFDFN-6-EP
UFDFN-6-EPROHS3 CompliantActive
ESD DIODE 5.5VWM 22VC UFDFN-6-EP
- Manufacturer
- VISHAY
- Manufacturer part #
- VBUS54CV-HSF-G4-08
- Store part #
- C511465
- Package / case
- UFDFN-6-EP
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,835 in stock
#C511465
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹62.29 | ₹311.45 |
| 50+ | ₹52.62 | ₹2,631.00 |
| 150+ | ₹48.46 | ₹7,269.00 |
| 500+ | ₹36.92 | ₹18,460.00 |
| 3,000+ | ₹34.62 | ₹1,03,860.00 |
| 6,000+ | ₹33.23 | ₹1,99,380.00 |
5 × ₹62.29
₹311.45
excl. GST
₹367.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
VBUS54CV-HSF-G4-08
₹311.45 for 5 + GST
Specifications
- Clamping Voltage
- 22V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 11A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 242W
- Number of Channels
- Four channels
- Voltage - Breakdown
- 7V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.013 g
Overview
Applications
- Transient voltage signal protection for dual high-speed USB ports
- Negative transients are clamped near ground level, while positive transients are clamped above the operating range
- Power line (VBUS on pin 5) clamped to ground (pin 2) via avalanche diode
- High-speed data lines D1+, D2+, D1- and D2- connected to pins 1, 3, 4 and 6
- When signal voltage on data lines is between ground and VBUS level, low-capacitance PN diodes provide high isolation to VBUS, ground and other data lines
- When any transient exceeds the operating range, one of the PN diodes enters forward mode and clamps the transient to ground or avalanche breakdown voltage level
Key features
- Ultra compact LLP75-6L package
- 4-line USB ESD protection
- Low leakage current
- Low load capacitance: CD = 1.2 pF
- ESD immunity acc. IEC 61000-4-2: ± 30 kV contact discharge, ± 30 kV air discharge
- High surge current acc. IEC 61000-4-5: Ipp > 11 A
- e4 - precious metal (e.g. Ag, Au, NiPd, NiPdAu), (no Sn)
