VBsemi ElecDatasheet (PDF)

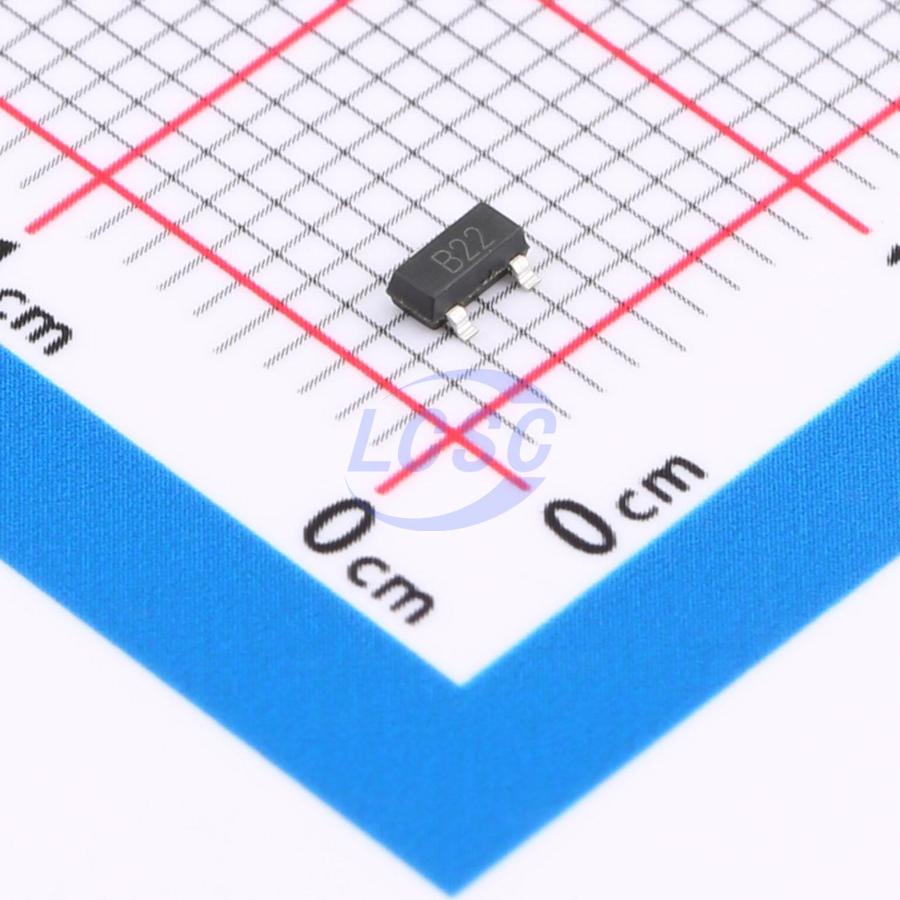

VBZ3401A
P-Channel 25V 3A 2.5W Surface Mount SOT-23
SOT-23RoHSActive
MOSFET P-CH 25V 3A SOT-23
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBZ3401A
- Store part #
- C3040320
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
65 in stock
#C3040320
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.63 | ₹68.15 |
| 50+ | ₹10.95 | ₹547.50 |
| 150+ | ₹9.62 | ₹1,443.00 |
| 500+ | ₹8.63 | ₹4,315.00 |
| 3,000+ | ₹7.49 | ₹22,470.00 |
| 6,000+ | ₹7.08 | ₹42,480.00 |
5 × ₹13.63
₹68.15
excl. GST
₹80.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
VBZ3401A
₹68.15 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 25V
- Output Capacitance(Coss)
- 115pF
- Current - Continuous Drain(Id)
- 3A
- Ciss-Input Capacitance
- 590pF
- Pd - Power Dissipation
- 2.5W
- Reverse Transfer Capacitance (Crss)
- 93pF
- RDS(on)
- 100mΩ@10V;110mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 13.6nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
Applications
- Load Switch - Laptop Adapter Switch - DC/DC Converter
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% gate resistance (Rg) tested
- Compliant with RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VB2360#C5179575VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 30 | ₹13.57 · 30 in stock | View |
 | VBZ3407#C3040336VBsemi Elec · SOT-23 | VBsemi Elec | SOT-23 | 40 | ₹14.00 · 40 in stock | View |
 | VBZ3401X#C3040221VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 45 | ₹13.57 · 45 in stock | View |
 | SQ2319ADS-T1_GE3-VB#C22395887VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 5 | ₹23.96 · 5 in stock | View |
 | SQ2389ES-T1_GE3-VB#C22395894VBsemi Elec · SOT-23 | VBsemi Elec | SOT-23 | 1,475 | ₹23.63 · 1,475 in stock | View |
