VBsemi ElecDatasheet (PDF)

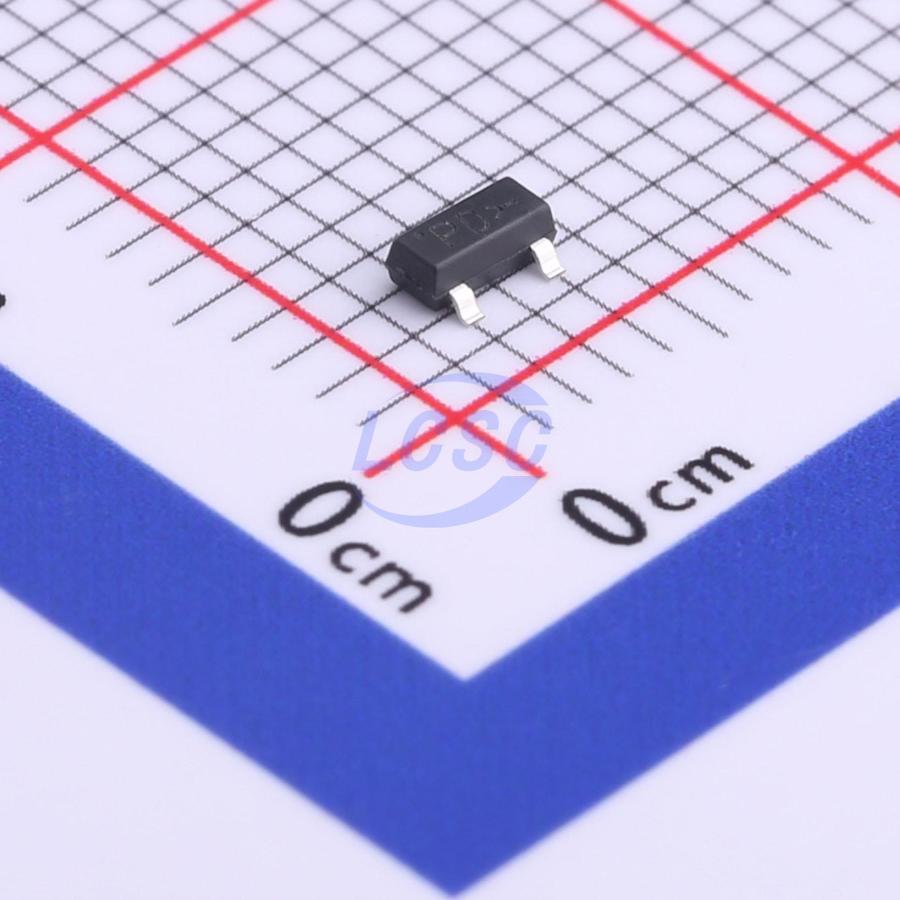

VBZ84
P-Channel 60V 400mA 460mW Surface Mount SOT-23(TO-236)
SOT-23(TO-236)RoHSActive
MOSFET P-CH 60V 400mA SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBZ84
- Store part #
- C699532
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C699532
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.17 | ₹101.70 |
| 100+ | ₹8.32 | ₹832.00 |
| 300+ | ₹7.40 | ₹2,220.00 |
| 3,000+ | ₹5.68 | ₹17,040.00 |
| 6,000+ | ₹5.12 | ₹30,720.00 |
| 9,000+ | ₹4.84 | ₹43,560.00 |
10 × ₹10.17
₹101.70
excl. GST
₹120.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
VBZ84
₹101.70 for 10 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 10pF
- Current - Continuous Drain(Id)
- 400mA
- Ciss-Input Capacitance
- 23pF
- Pd - Power Dissipation
- 460mW
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 3Ω@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 2nC@15V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.06 g
Overview
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- High-side switching
- Low on-resistance: 3 Ω
- Low threshold: -2 V (typical)
- Fast switching speed: 20 ns (typical)
- Low input capacitance: 20 pF (typical)
- RoHS compliant per directive 2002/95/EC
- P-channel MOSFET
