VBsemi ElecDatasheet (PDF)

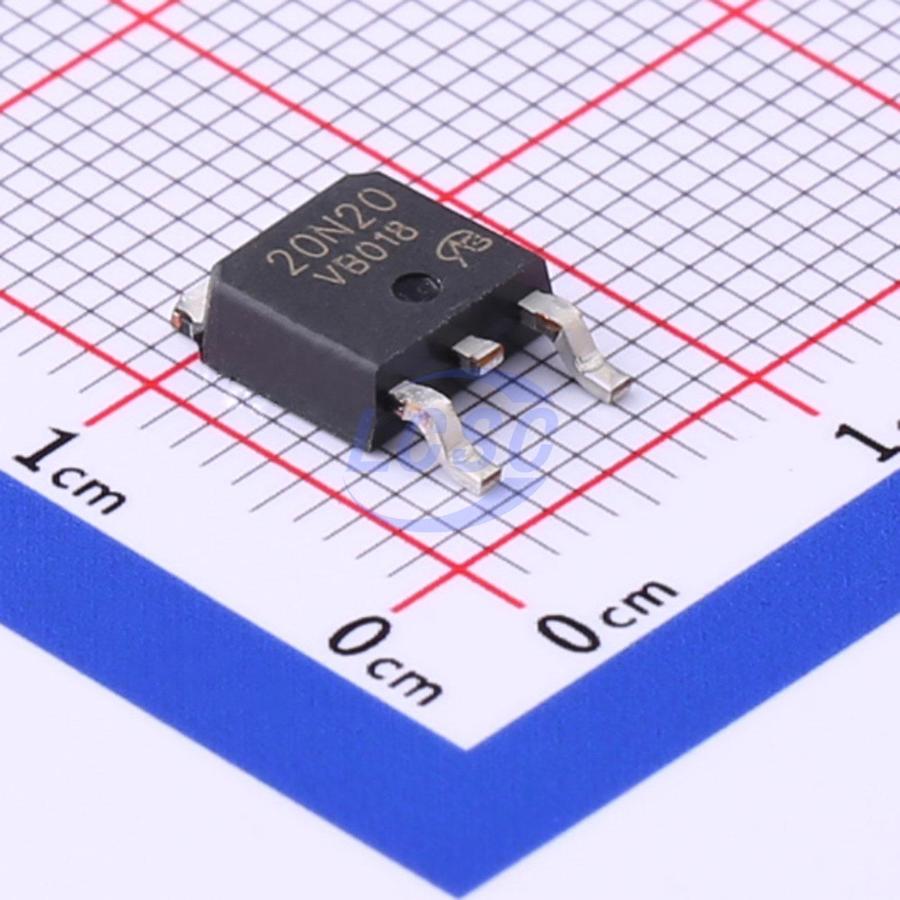

VBZE20N20
N-Channel 200V 25A 96W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 200V 25A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBZE20N20
- Store part #
- C700631
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6 in stock
#C700631
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹221.43 | ₹221.43 |
| 10+ | ₹187.54 | ₹1,875.40 |
| 30+ | ₹166.08 | ₹4,982.40 |
| 100+ | ₹144.41 | ₹14,441.00 |
| 500+ | ₹134.54 | ₹67,270.00 |
| 1,000+ | ₹130.25 | ₹1,30,250.00 |
1 × ₹221.43
₹221.43
excl. GST
₹261.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
VBZE20N20
₹221.43 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 200V
- Output Capacitance(Coss)
- 180pF
- Current - Continuous Drain(Id)
- 25A
- Ciss-Input Capacitance
- 6nF
- Pd - Power Dissipation
- 96W
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 54mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 34nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.376 g
Overview
Applications
- Primary-side switch
Key features
- Trench power MOSFET
- Junction temperature 175°C
- PWM optimized
- 100% gate resistance (Rg) tested
- RoHS compliant with directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SUD19N20-90-T4-E3-VB#C18795092VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 24 | ₹221.62 · 24 in stock | View |
 | STD20NF20T4-VB#C20755397VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 47 | ₹221.62 · 47 in stock | View |
 | AM20N20-125D-VB#C29778794VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 10 | ₹211.94 · 10 in stock | View |
 | 2N120-VB#C29779141VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 10 | ₹211.94 · 10 in stock | View |
 | IRFR13N20DTRPBF-VB#C5438943VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹230.76 · 50 in stock | View |
