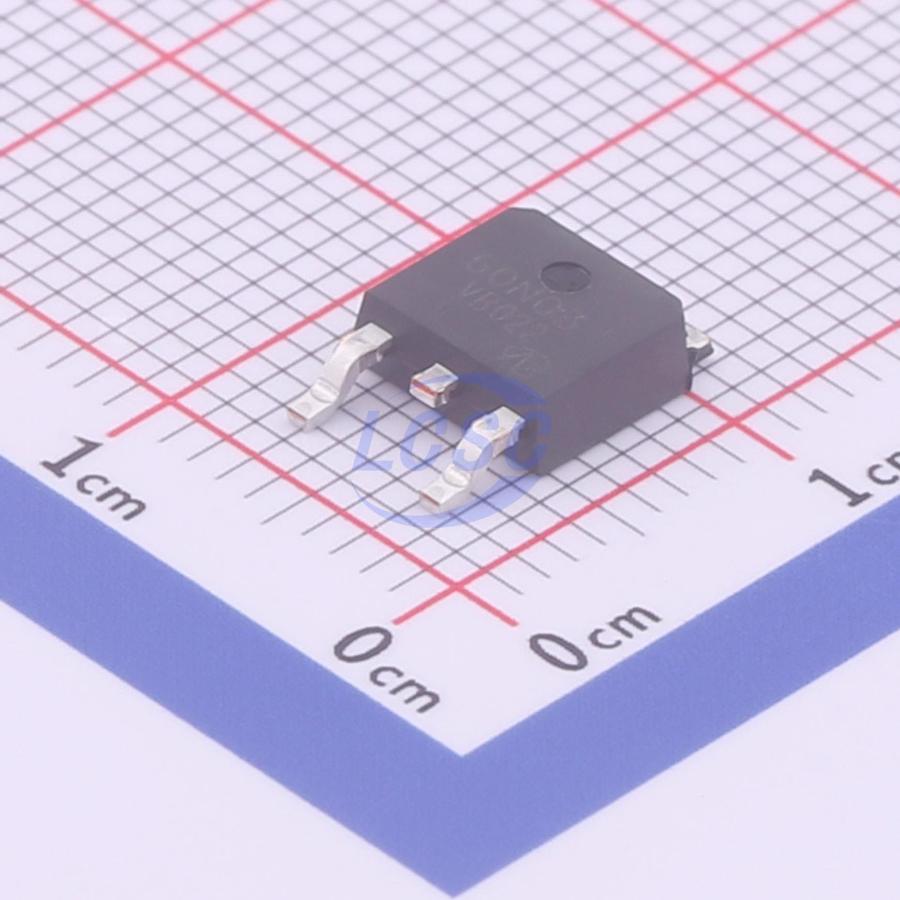

VBZE60N03
N-Channel 30V 25.8A 3.75W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 30V 25.8A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBZE60N03
- Store part #
- C700656
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8 in stock
#C700656
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.03 | ₹63.03 |
| 10+ | ₹50.42 | ₹504.20 |
| 30+ | ₹44.96 | ₹1,348.80 |
| 100+ | ₹38.23 | ₹3,823.00 |
| 500+ | ₹31.09 | ₹15,545.00 |
| 1,000+ | ₹29.41 | ₹29,410.00 |
1 × ₹63.03
₹63.03
excl. GST
₹74.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
VBZE60N03
₹63.03 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 525pF
- Current - Continuous Drain(Id)
- 25.8A
- Ciss-Input Capacitance
- 2.201nF
- Pd - Power Dissipation
- 3.75W
- Reverse Transfer Capacitance (Crss)
- 270pF
- RDS(on)
- 5mΩ@10V;6mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 31.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.387 g
Overview
Applications
- OR gate applications
- Servers
- DC-DC converters
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with EU RoHS Directive 2011/65/EU
