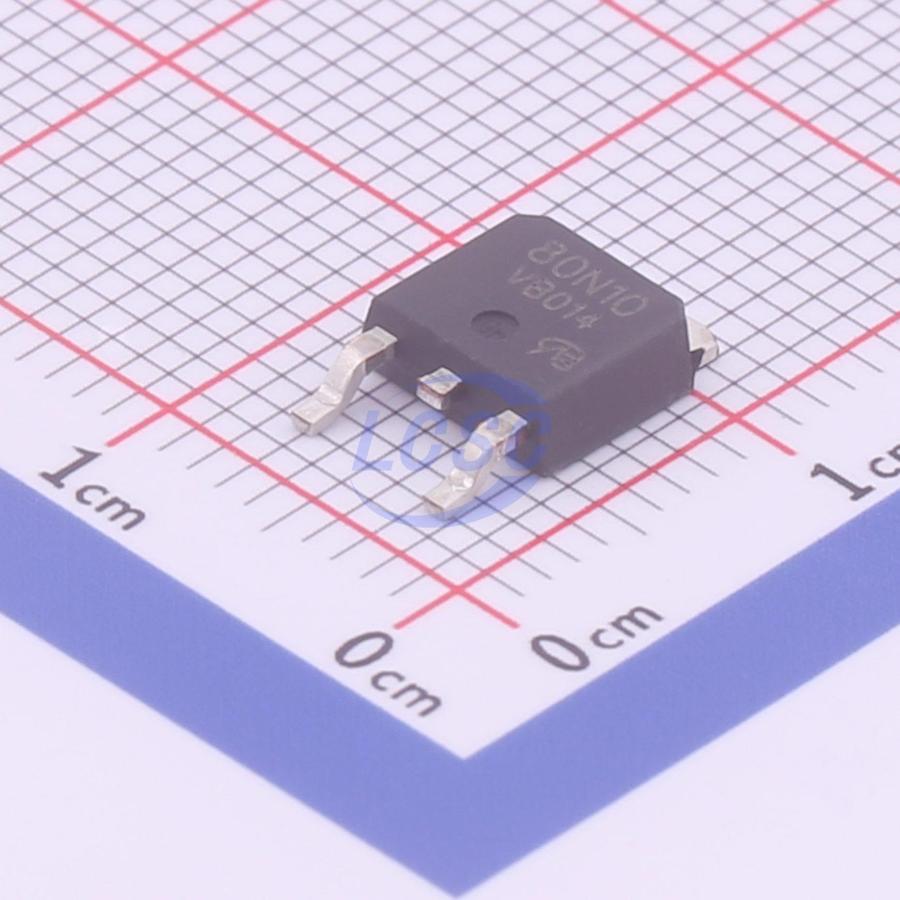

VBZE80N10
N-Channel 100V 85A 210W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 100V 85A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBZE80N10
- Store part #
- C700662
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9 in stock
#C700662
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹139.84 | ₹139.84 |
| 10+ | ₹113.69 | ₹1,136.90 |
| 30+ | ₹100.51 | ₹3,015.30 |
| 100+ | ₹87.53 | ₹8,753.00 |
| 500+ | ₹79.71 | ₹39,855.00 |
| 1,000+ | ₹75.79 | ₹75,790.00 |
1 × ₹139.84
₹139.84
excl. GST
₹165.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
VBZE80N10
₹139.84 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 565pF
- Current - Continuous Drain(Id)
- 85A
- Ciss-Input Capacitance
- 4.55nF
- Pd - Power Dissipation
- 210W
- Reverse Transfer Capacitance (Crss)
- 205pF
- RDS(on)
- 7.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 105nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.41 g
Overview
Applications
- Primary-side switching - Isolated DC-DC converter
Key features
- Trench power MOSFET
- 100% gate resistance tested
- 100% unclamped inductive switching tested
- RoHS compliant
