VBsemi ElecDatasheet (PDF)

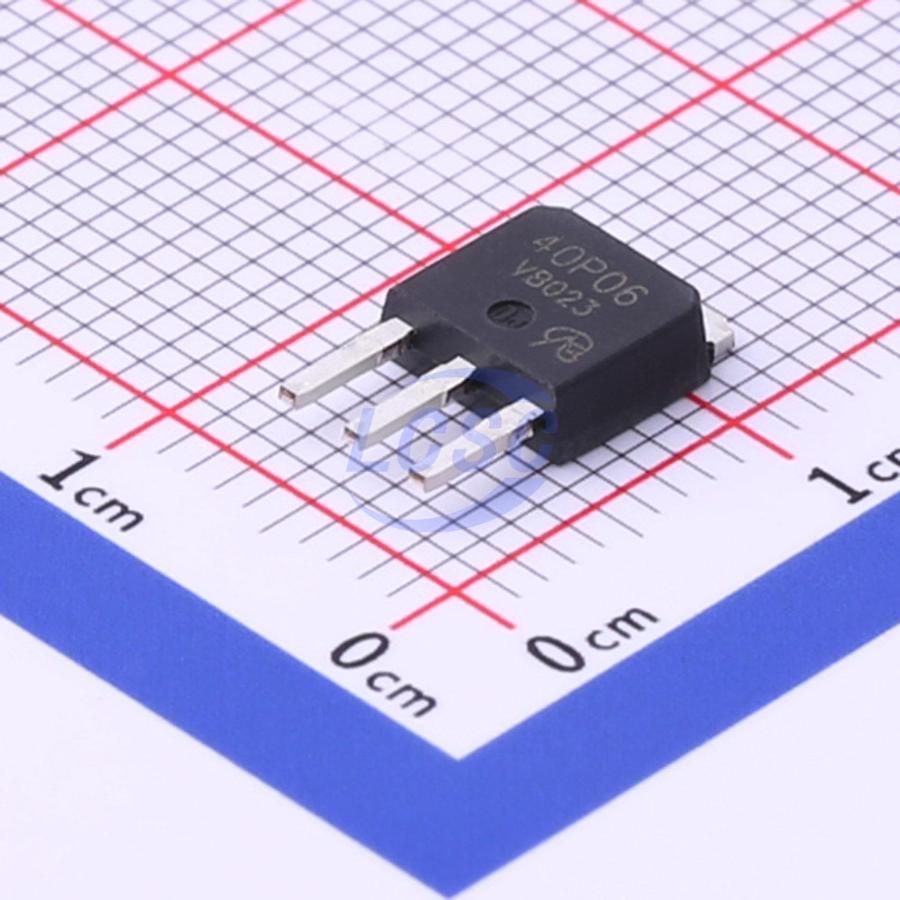

VBZFB40P06
P-Channel 60V 30A 38.5W Through Hole TO-251
TO-251RoHSActive
MOSFET P-CH 60V 30A TO-251
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBZFB40P06
- Store part #
- C700678
- Package / case
- TO-251
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9 in stock
#C700678
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹74.06 | ₹74.06 |
| 10+ | ₹59.28 | ₹592.80 |
| 30+ | ₹53.11 | ₹1,593.30 |
| 80+ | ₹39.33 | ₹3,146.40 |
| 480+ | ₹35.73 | ₹17,150.40 |
| 800+ | ₹33.54 | ₹26,832.00 |
1 × ₹74.06
₹74.06
excl. GST
₹87.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 80 per tube
VBZFB40P06
₹74.06 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 130pF
- Current - Continuous Drain(Id)
- 30A
- Ciss-Input Capacitance
- 1.9nF
- Pd - Power Dissipation
- 38.5W
- Reverse Transfer Capacitance (Crss)
- 90pF
- RDS(on)
- 48mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 26nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 80 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.73 g
Overview
Applications
- High-side switch for full-bridge converters
- DC/DC converter for LCD displays
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% UIS tested
- Compliant with RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFU5305PBF-VB#C7569028VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 10 | ₹232.94 · 10 in stock | View |
 | 2SJ601-VB#C19711217VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 10 | ₹203.37 · 10 in stock | View |
 | 2SJ485-VB#C693179VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | On request | ₹56.70 · 0 in stock | View |
| VBFB2625#C42412585VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | On request | ₹275.50 · 0 in stock | View | |
| VBFB2104N#C42412463VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | On request | ₹229.99 · 0 in stock | View | |
