MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
VBsemi ElecDatasheet (PDF)

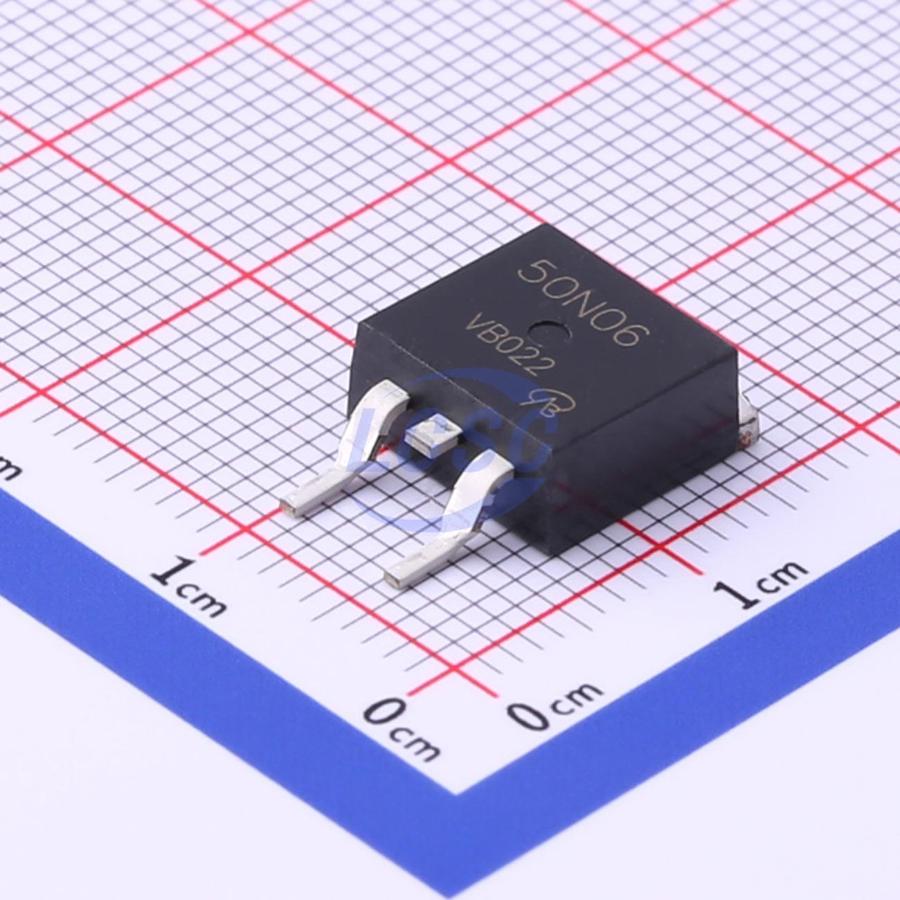

VBZL50N06
N-Channel 60V 75A 136W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 60V 75A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBZL50N06
- Store part #
- C700690
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9 in stock
#C700690
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹134.50 | ₹134.50 |
| 10+ | ₹109.16 | ₹1,091.60 |
| 50+ | ₹96.59 | ₹4,829.50 |
| 100+ | ₹84.24 | ₹8,424.00 |
| 500+ | ₹76.83 | ₹38,415.00 |
| 1,000+ | ₹72.91 | ₹72,910.00 |
1 × ₹134.50
₹134.50
excl. GST
₹158.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBZL50N06
₹134.50 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 470pF
- Current - Continuous Drain(Id)
- 75A
- Ciss-Input Capacitance
- 4.3nF
- Pd - Power Dissipation
- 136W
- Reverse Transfer Capacitance (Crss)
- 225pF
- RDS(on)
- 11mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 47nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.22 g
Overview
Key features
- Junction temperature 175 °C
- Trench power MOSFET
- N-channel MOSFET
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SUB45N05-20L-VB#C19190176VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹123.52 · 10 in stock | View |
 | BUK7618-55A-VB#C19626810VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹128.56 · 10 in stock | View |
 | AUIRFZ44VZSTRR-VB#C19632190VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 20 | ₹128.56 · 20 in stock | View |
 | AUIRFZ44ZSTRL-VB#C20417448VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 20 | ₹123.52 · 20 in stock | View |
 | RU6050S-VB#C20417682VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 20 | ₹128.56 · 20 in stock | View |
