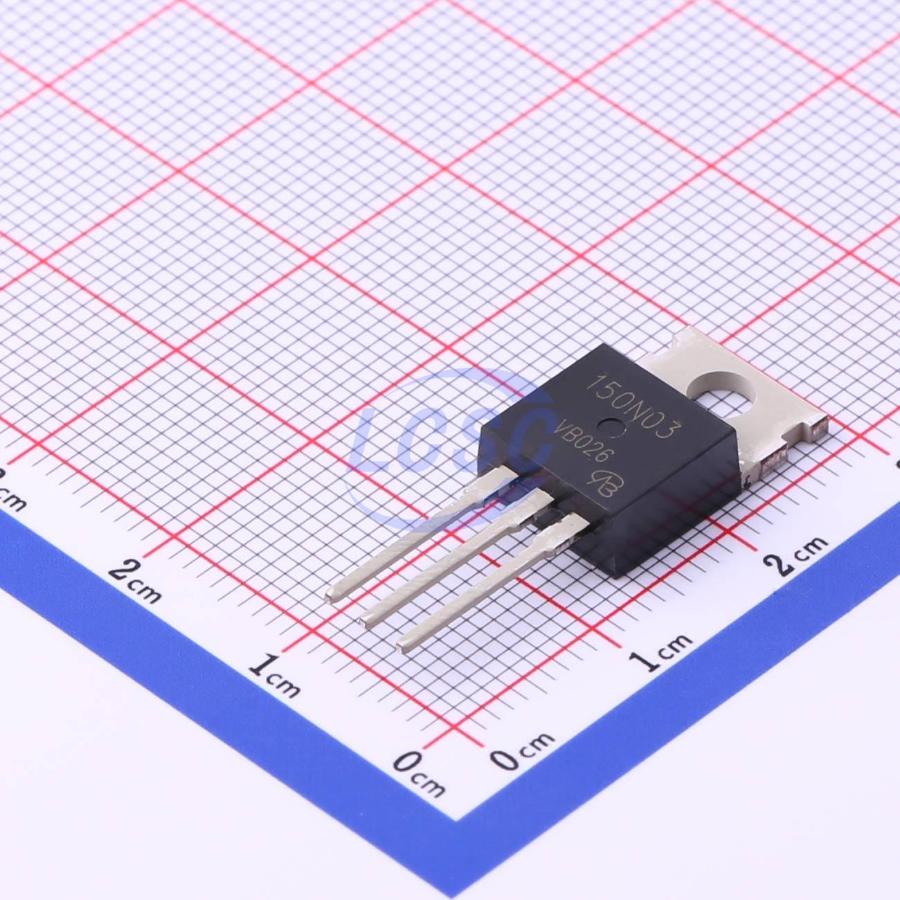

VBZM150N03
N-Channel 30V 140A 3.75W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 30V 140A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBZM150N03
- Store part #
- C700703
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
52 in stock
#C700703
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹128.25 | ₹128.25 |
| 10+ | ₹104.16 | ₹1,041.60 |
| 50+ | ₹84.87 | ₹4,243.50 |
| 100+ | ₹72.94 | ₹7,294.00 |
| 500+ | ₹65.81 | ₹32,905.00 |
| 1,000+ | ₹62.25 | ₹62,250.00 |
1 × ₹128.25
₹128.25
excl. GST
₹151.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBZM150N03
₹128.25 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 1.725nF
- Current - Continuous Drain(Id)
- 140A
- Ciss-Input Capacitance
- 8.4nF
- Pd - Power Dissipation
- 3.75W
- Reverse Transfer Capacitance (Crss)
- 970pF
- RDS(on)
- 2mΩ@10V;2.8mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 81.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.75 g
Overview
Applications
- OR-ing
- Server DC/DC
Key features
- DT-Trench Power MOSFET
- 100 % Rg and UIS Tested
- Compliant to RoHS Directive 2011/65/EU
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRL3803VPBF-VB#C5179554VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 7 | ₹90.63 · 7 in stock | View |
 | IRL3803PBF-VB#C5137396VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 16 | ₹165.67 · 16 in stock | View |
 | AOT424L-VB#C5137452VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 15 | ₹131.49 · 15 in stock | View |
 | PSMN1R1-30PL,127-VB#C52191074VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹142.16 · 5 in stock | View |
 | PSMN1R8-30PL-VB#C19190163VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹131.92 · 20 in stock | View |
