VBsemi ElecDatasheet (PDF)

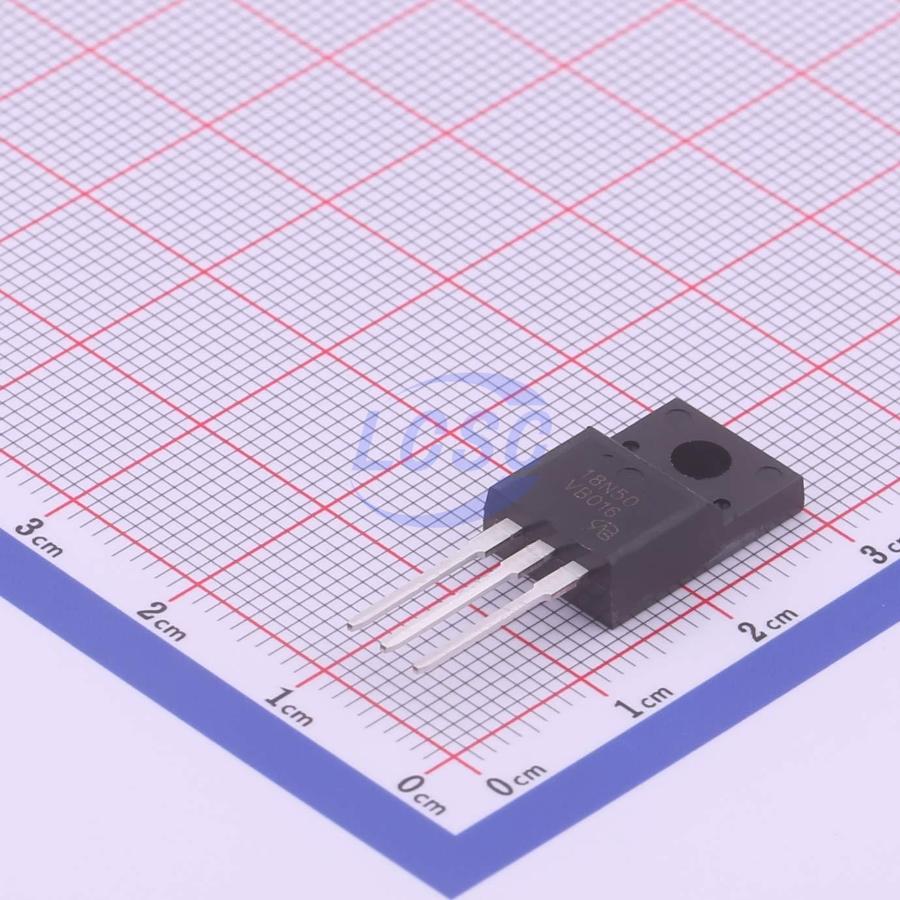

VBZMB18N50
N-Channel 550V 11A 60W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 550V 11A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBZMB18N50
- Store part #
- C700733
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16 in stock
#C700733
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹166.08 | ₹166.08 |
| 10+ | ₹135.54 | ₹1,355.40 |
| 50+ | ₹128.54 | ₹6,427.00 |
| 100+ | ₹109.58 | ₹10,958.00 |
| 500+ | ₹101.21 | ₹50,605.00 |
| 1,000+ | ₹97.41 | ₹97,410.00 |
1 × ₹166.08
₹166.08
excl. GST
₹195.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBZMB18N50
₹166.08 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 550V
- Output Capacitance(Coss)
- 152pF
- Current - Continuous Drain(Id)
- 11A
- Ciss-Input Capacitance
- 3.094nF
- Pd - Power Dissipation
- 60W
- Reverse Transfer Capacitance (Crss)
- 13pF
- RDS(on)
- 260mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 150nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.84 g
Overview
Applications
- Consumer Electronics - Displays (LCD or Plasma TV)
- Server and Telecom Power Supplies - SMPS
- Industrial - Welding - Induction Heating - Motor Drives
- Battery Chargers
- SMPS - Power Factor Correction (PFC)
Key features
- Optimal Design
- Low Area Specific On-Resistance
- Low Input Capacitance (Ciss)
- Reduced Capacitive Switching Losses
- High Body Diode Ruggedness
- Avalanche Energy Rated (UIS)
- Optimal Efficiency and Operation
- Low Cost
- Simple Gate Drive Circuitry
- Low Figure-of-Merit (FOM): Ron×Qg
- Fast Switching
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AOTF14N50FD-VB#C19711223VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 5 | ₹195.72 · 5 in stock | View |
 | TK14A55D-VB#C29779373VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 10 | ₹185.27 · 10 in stock | View |
 | STP12NM50FP-VB#C20755054VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 36 | ₹224.01 · 36 in stock | View |
 | RJK5013DPP-VB#C20755581VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 10 | ₹200.14 · 10 in stock | View |
 | JCS740F-VB#C22389334VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 3 | ₹185.27 · 3 in stock | View |
