VISHAYDatasheet (PDF)

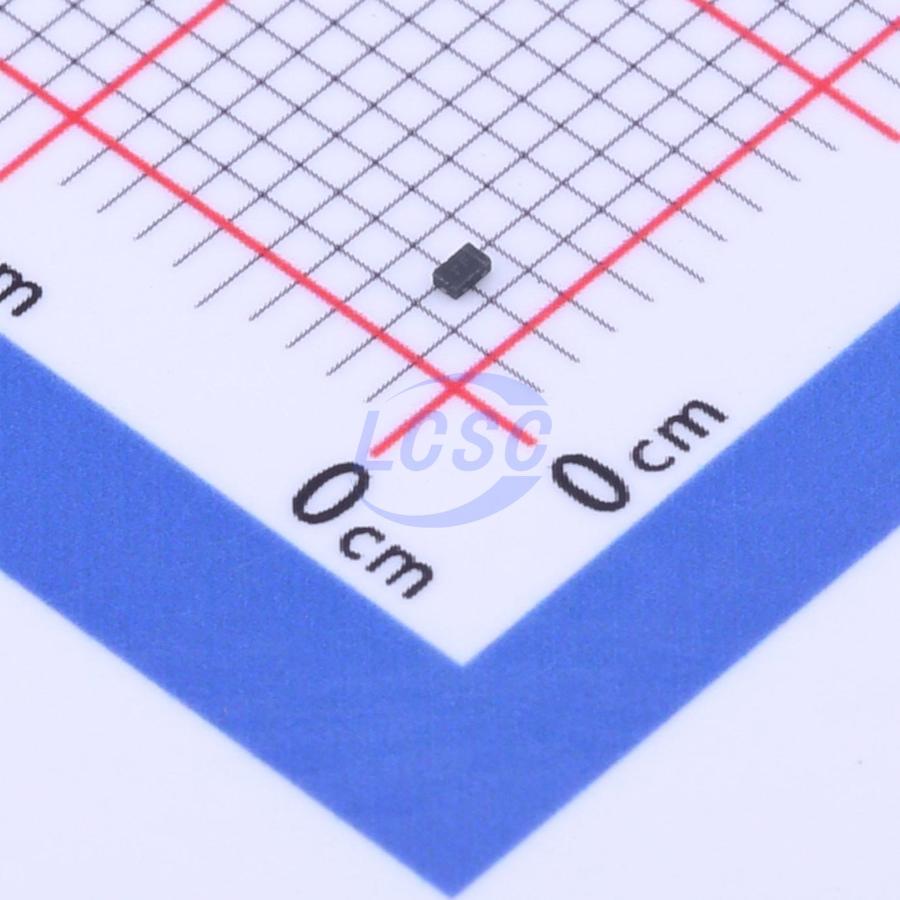

VESD03A1B-HD1-GS08
9VC Clamp 3.5A@8/20us Ipp ESD DIODE SOD-882
SOD-882ROHS3 CompliantActive
ESD DIODE 3.3VWM 9VC SOD-882
- Manufacturer
- VISHAY
- Manufacturer part #
- VESD03A1B-HD1-GS08
- Store part #
- C968545
- Package / case
- SOD-882
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,265 in stock
#C968545
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.04 | ₹75.20 |
| 50+ | ₹12.17 | ₹608.50 |
| 150+ | ₹10.74 | ₹1,611.00 |
| 500+ | ₹9.66 | ₹4,830.00 |
| 2,500+ | ₹6.77 | ₹16,925.00 |
| 5,000+ | ₹6.34 | ₹31,700.00 |
5 × ₹15.04
₹75.20
excl. GST
₹88.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
VESD03A1B-HD1-GS08
₹75.20 for 5 + GST
Specifications
- Clamping Voltage
- 9V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 3.5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 31W
- Voltage - Breakdown
- 5V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 500nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.001 g
Overview
Key features
- Ultra compact LLP1006-2L package
- Low package height < 0.4 mm
- 1-line ESD protection
- Low leakage current < 0.5 μA
- Low load capacitance CD = 15 pF (VR = 2.5 V; f = 1 MHz)
- ESD immunity acc. IEC 61000-4-2 ± 30 kV contact discharge ± 30 kV air discharge
- High surge current acc. IEC 61000-4-5 IPP > 3.5 A
- Soldering can be checked by standard vision inspection. No X-ray necessary
- Pin plating NiPdAu (e4) no whisker growth
- e4-precious metal (e.g. Ag, Au, NiPd, NiPdAu) (no Sn)
