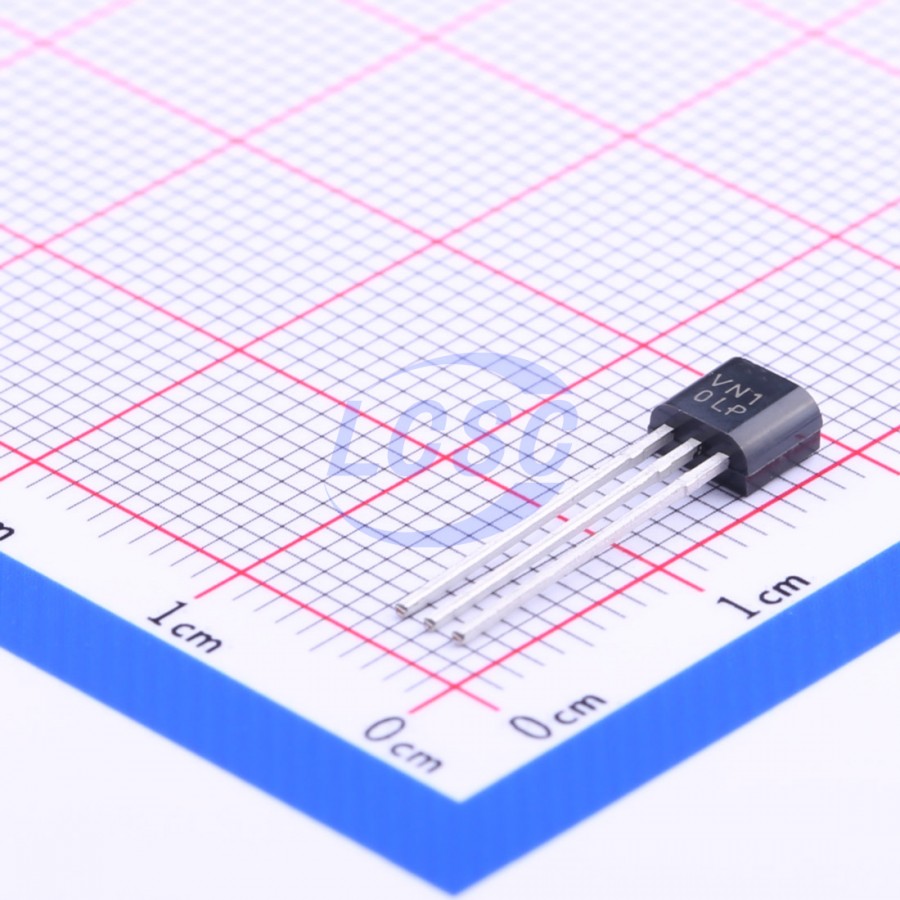

VN10LP
625mW 60V 270mA 7.5Ω@5V 1 N-channel N-Channel TO-92L-3 Single FETs, MOSFETs RoHS
TO-92L-3ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- VN10LP
- Store part #
- C150499
- Package / case
- TO-92L-3
- Category
- Single FETs, MOSFETs
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
85 in stock
#C150499
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹54.34 | ₹54.34 |
| 10+ | ₹53.03 | ₹530.30 |
| 30+ | ₹52.15 | ₹1,564.50 |
| 100+ | ₹51.50 | ₹5,150.00 |
1 × ₹54.34
₹54.34
excl. GST
₹64.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per bag
VN10LP
₹54.34 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 25pF
- Ciss-Input Capacitance
- 60pF
- Pd - Power Dissipation
- 625mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 270mA
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 7.5Ω@5V
- Number
- 1 N-channel
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 4,000 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.221 g
Overview
Key features
- Drain-source breakdown voltage (BVDSS) > 60 V
- On-resistance (RDS(on)) ≤ 5Ω at VGS = 10V
- Maximum continuous drain current (ID) = 270 mA
- Fully lead-free and fully RoHS compliant
- Halogen- and antimony-free, "green" device
- Compliant with AEC-Q101 high-reliability standard
