VPSC

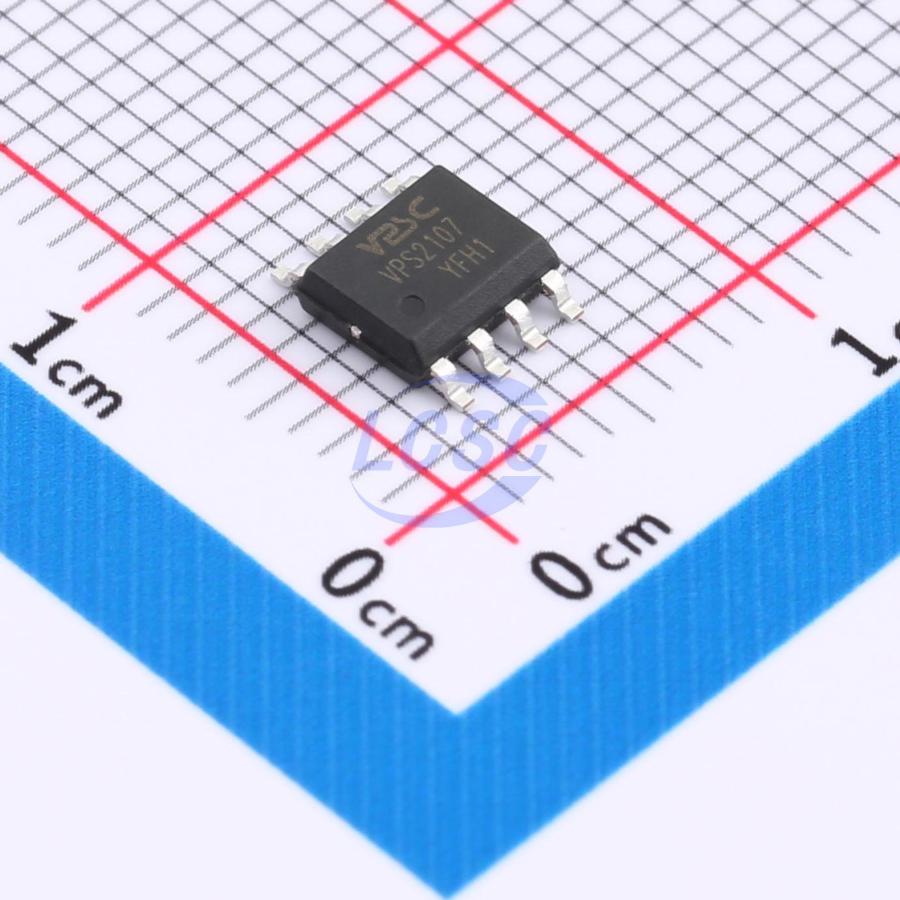

VPS2107

Converter Offline Flyback Buck Boost Topology 300kHz~360kHz ESOP8

ESOP8ROHS CompliantActive

Current-mode PWM controller

Manufacturer: VPSC
Manufacturer part #: VPS2107
Store part #: C7470609
Package / case: ESOP8
Category: AC DC Converters, Offline Switchers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,958 in stock

#C7470609

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹110.15	₹110.15
10+	₹88.22	₹882.20
30+	₹77.36	₹2,320.80
100+	₹66.49	₹6,649.00
500+	₹60.41	₹30,205.00
1,000+	₹57.14	₹57,140.00

Quantity (min 1)

1 × ₹110.15

₹110.15

excl. GST

₹129.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

VPS2107

₹110.15 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Frequency - Switching: 300kHz~360kHz
Voltage - Supply: 4V~10V
Voltage - Breakdown: 132V
Topology: Flyback;Boost;Buck
Features: Adjustable current limiting;Light load efficient mode;Slope compensation;Under-voltage lockout;Short Circuit Protection;Overtemperature protection (OTP)
Duty Cycle(Max): 80%
Working Mode: CCM;DCM
Feedback System: Primary-side feedback;Secondary-Side Feedback

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.203 g

Overview

VPS2107 is a highly integrated power control IC suitable for multiple topologies (Flyback, Boost, Buck) and output voltage feedback methods (SSR, PSR, resistor divider). It supports PSR feedback at switching frequencies of hundreds of KHz, with a built-in output voltage sampling circuit that operates in both CCM and DCM modes, requiring a sampling voltage time window as low as 400nS. The built-in loop compensation circuit with fast dynamic response delivers excellent stability and dynamic response performance for switching power supplies. VPS2107 integrates multiple control functions with a simple peripheral design, allowing peripheral parameters to be configured according to actual requirements. A single resistor serves three functions: startup, feedforward compensation, and programming the turn-off speed of the integrated power switch. A single resistor programs the peak current of the power switch for "lossless" current sensing. Two resistors enable simultaneous configuration of both input undervoltage protection and input overvoltage protection thresholds. VPS2107 integrates overpower protection, output short-circuit protection, output overvoltage protection, overtemperature protection, and more. All protections support auto-recovery once the abnormal condition is removed, maximizing the reliability of the switching power supply system.

Applications

Discontinuous (DCM)/Continuous (CCM) mode flyback converter
Industrial power conversion
BMS auxiliary power supply
PoE power supply
Isolated communication power supply

Key features

For PSR and SSR Flyback\Boost\Buck
PSR feedback minimum sampling time as low as 0.4uS
CCM and DCM mode compatible
Integrated 132V/0.6Ω LDMOS
Integrated lossless current sensing
Programmable peak current
Programmable power switch drive speed
Programmable input under-voltage and over-voltage protection
Short-circuit protection and over-temperature protection
Light-load cycle-by-cycle analog frequency reduction for optimized efficiency curve
Built-in feed-forward compensation
Built-in soft-start and slope compensation
Built-in loop PSR control in CCM/DCM mode
Direct optocoupler interface
Built-in loop compensation and output diode voltage drop temperature compensation
ESOP8 enhanced thermal dissipation package
