VISHAYDatasheet (PDF)

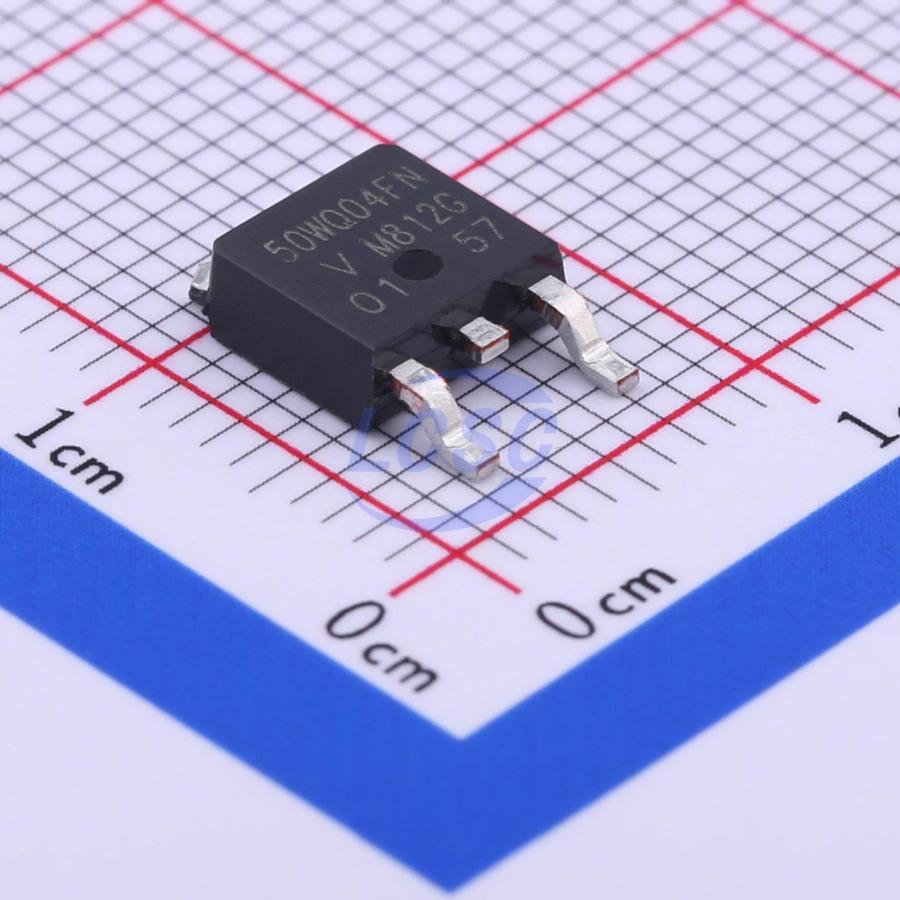

VS-50WQ04FNTR-M3
Diode 1 Independent 40V 5.5A Surface Mount DPAK(TO-252AA)
DPAK(TO-252AA)ROHS3 CompliantActive
DIODE SCHOTTKY 40V DPAK(TO-252AA)
- Manufacturer
- VISHAY
- Manufacturer part #
- VS-50WQ04FNTR-M3
- Store part #
- C413476
- Package / case
- DPAK(TO-252AA)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
61 in stock
#C413476
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹222.74 | ₹222.74 |
| 10+ | ₹187.10 | ₹1,871.00 |
| 30+ | ₹164.71 | ₹4,941.30 |
| 100+ | ₹141.90 | ₹14,190.00 |
| 500+ | ₹131.47 | ₹65,735.00 |
| 1,000+ | ₹127.13 | ₹1,27,130.00 |
1 × ₹222.74
₹222.74
excl. GST
₹262.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
VS-50WQ04FNTR-M3
₹222.74 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Voltage - Forward(Vf@If)
- 630mV@10A
- Reverse Leakage Current (Ir)
- 3mA@40V
- Non-Repetitive Peak Forward Surge Current
- 340A
- Current - Rectified
- 5.5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.557 g
Overview
The VS- 50WQ04FN- M3 surface mount Schottky rectifier has been designed for applications requiring low forward drop and small foot prints on PC board. Typical applications are in disk drives, switching power supplies, converters, freewheeling diodes, battery charging, and reverse battery protection.
Applications
- Disk drives
- Switching power supplies
- Converters
- Freewheeling diodes
- Battery charging
- Reverse battery protection
Key features
- Low forward voltage drop
- Guard ring for enhanced ruggedness and long term reliability
- Small foot print, surface mountable
- High frequency operation
- Popular D-PAK outline
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VS-50WQ04FN-M3#C144982VISHAY · TO-252AA(DPAK) | VISHAY | TO-252AA(DPAK) | 501 | ₹176.20 · 501 in stock | View |
 | VS-50WQ06FNHM3#C7149515VISHAY · D-PAK(TO-252AA) | VISHAY | D-PAK(TO-252AA) | 3 | ₹344.76 · 3 in stock | View |
 | VS-50WQ06FNTR-M3#C468107VISHAY · DPAK(TO-252AA) | VISHAY | DPAK(TO-252AA) | 2,563 | ₹111.21 · 2,563 in stock | View |
 | SRT20L150SCS#C3039991YFW · TO-252 | YFW | TO-252 | 923 | ₹48.33 · 923 in stock | View |
 | MBR1040DY#C2913554Jingdao Microelectronics · TO-252 | Jingdao Microelectronics | TO-252 | 2,480 | ₹25.92 · 2,480 in stock | View |
