VISHAYDatasheet (PDF)

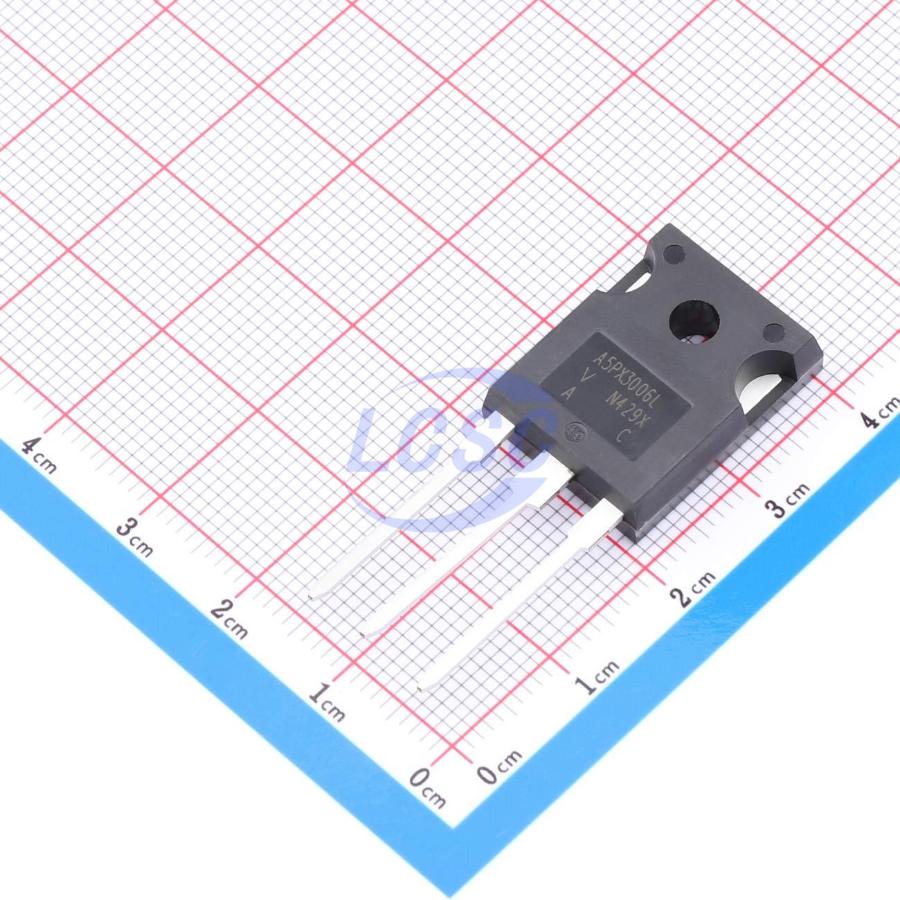

VS-A5PX3006L-N3
41ns 1 Independent 600V 2.1V@30A 30A TO-247AD Single Diodes RoHS
TO-247ADROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- VS-A5PX3006L-N3
- Store part #
- C17529397
- Package / case
- TO-247AD
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
238 in stock
#C17529397
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹249.95 | ₹249.95 |
| 10+ | ₹236.26 | ₹2,362.60 |
| 25+ | ₹227.78 | ₹5,694.50 |
| 100+ | ₹218.86 | ₹21,886.00 |
| 500+ | ₹214.96 | ₹1,07,480.00 |
| 1,000+ | ₹213.21 | ₹2,13,210.00 |
1 × ₹249.95
₹249.95
excl. GST
₹294.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
VS-A5PX3006L-N3
₹249.95 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 41ns
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 600V
- Voltage - Forward(Vf@If)
- 2.1V@30A
- Reverse Leakage Current (Ir)
- 20uA@600V
- Current - Rectified
- 30A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 9.385 g
Overview
This rectifier features a unique combination of low conduction and switching losses, making it ideal for soft-switching and resonant converters as well as medium-frequency hard-switching converters. The device is specifically designed to improve efficiency in high-speed LLC output rectification stages for EV/HEV charging stations and high-frequency stages in UPS applications.
Applications
- Soft-switching and resonant converters, medium-frequency hard-switching converters, EV/HEV charging stations, UPS applications
Key features
- Ultra-fast and optimized reverse recovery charge (Qrr)
- Best-in-class balance between forward voltage drop and switching loss
- Optimized for high-speed operation
- Maximum junction operating temperature up to 175°C
- Polyimide passivation
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| VS-E5PX3006LHN3#C17529867VISHAY · TO-247AD | VISHAY | TO-247AD | 3 | ₹469.65 · 3 in stock | View | |
 | DHG30I600HA#C17691568Littelfuse/IXYS · TO-247 | Littelfuse/IXYS | TO-247 | 5 | ₹3,064.17 · 5 in stock | View |
 | VS-E5PX7506L-N3#C17666870VISHAY · TO-247AD | VISHAY | TO-247AD | 30 | ₹978.27 · 30 in stock | View |
 | DH60-16A#C17536810Littelfuse/IXYS · TO-247AD | Littelfuse/IXYS | TO-247AD | 2 | ₹2,884.39 · 2 in stock | View |
 | APT30D100BG#C17293915MICROCHIP · TO-247 | MICROCHIP | TO-247 | 54 | ₹979.36 · 54 in stock | View |
