VISHAYDatasheet (PDF)

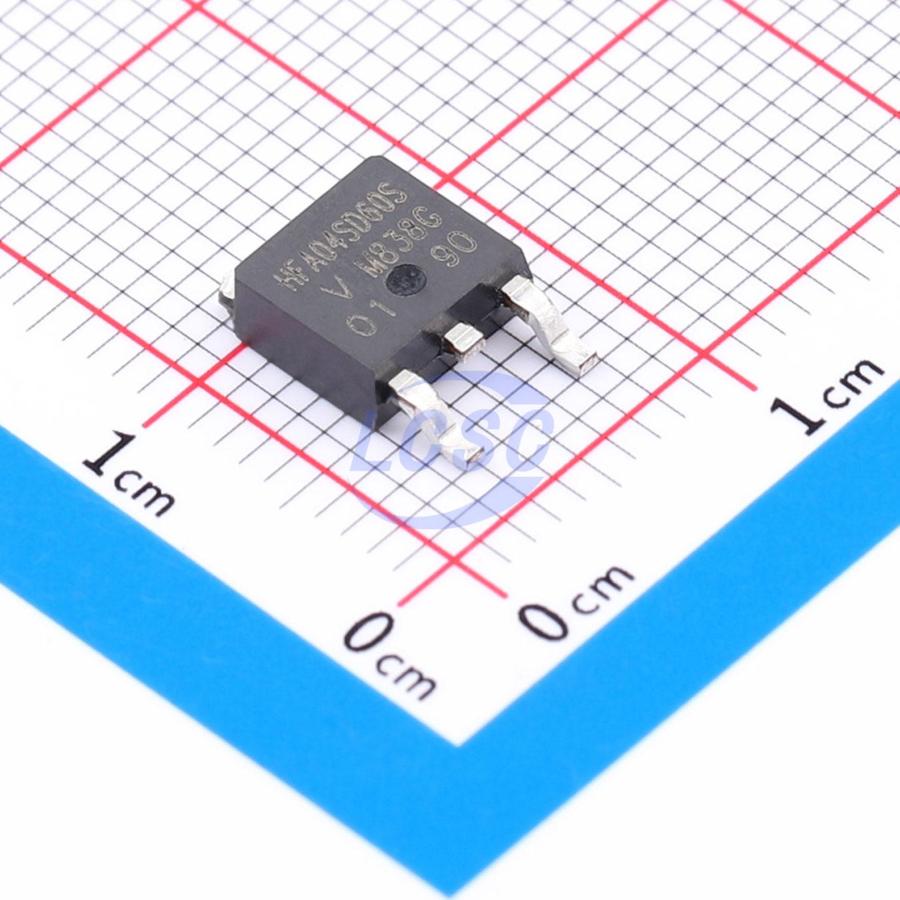

VS-HFA04SD60S-M3
600V 1 Independent 1.8V@4A 4A D-PAK(TO-252AA) Single Diodes RoHS
D-PAK(TO-252AA)ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- VS-HFA04SD60S-M3
- Store part #
- C17527174
- Package / case
- D-PAK(TO-252AA)
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C17527174
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹454.03 | ₹454.03 |
| 10+ | ₹444.25 | ₹4,442.50 |
| 30+ | ₹437.53 | ₹13,125.90 |
| 75+ | ₹431.02 | ₹32,326.50 |
1 × ₹454.03
₹454.03
excl. GST
₹535.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 75 per tube
VS-HFA04SD60S-M3
₹454.03 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 600V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 1.8V@4A
- Reverse Leakage Current (Ir)
- 3uA@600V
- Current - Rectified
- 4A
- Non-Repetitive Peak Forward Surge Current
- 25A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 75 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.74 g
Overview
These diodes are optimized to reduce losses and EMI/RFI in high-frequency power conditioning systems. The softness of the recovery characteristics eliminates the need for snubbers in most applications. These devices are ideal for freewheeling, flyback, power converters, motor drives, and other applications requiring high speed and reduced switching losses.
Applications
- Freewheeling, flyback, power converters, motor drivers
Key features
- Ultra-fast recovery time
- Ultra-soft recovery
- Extremely low reverse recovery peak current (IRRM)
- Extremely low reverse recovery charge (Qrr)
- Guaranteed avalanche capability
- Specified across operating temperature range
- MSL Level 1 per J-STD-020, lead-free reflow peak temperature up to 260°C
