VISHAYDatasheet (PDF)

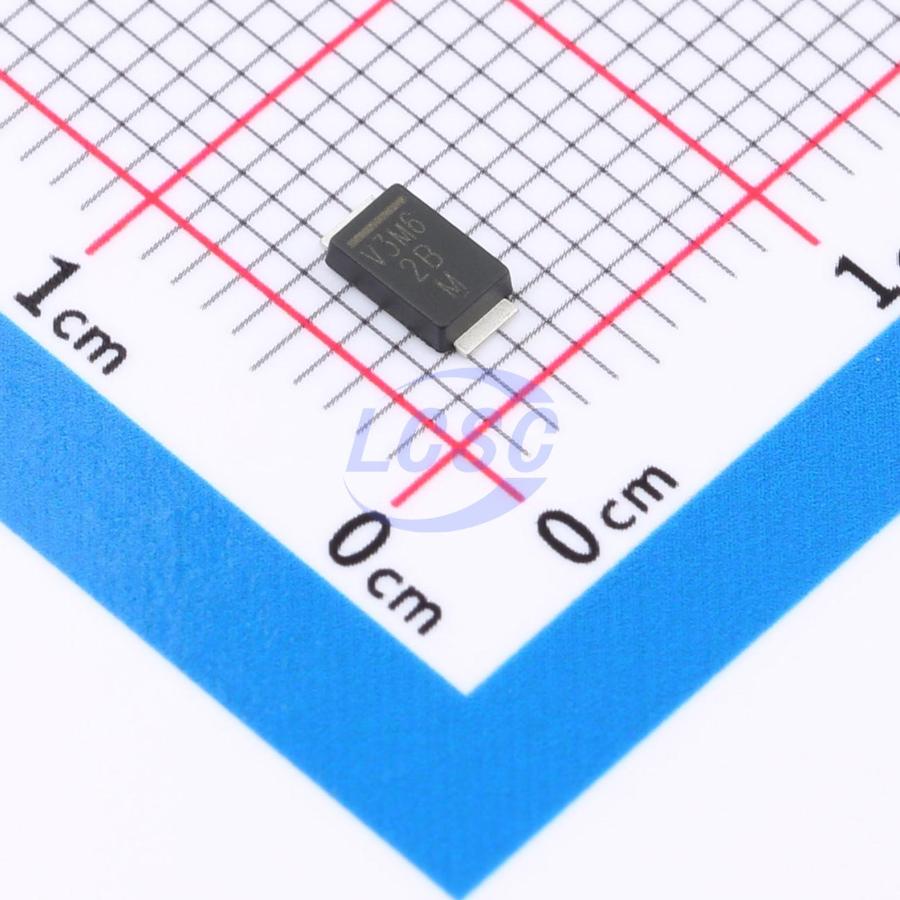

VSS8D3M6HM3/H
Diode 1 Independent 60V 2.5A Surface Mount DO-221AD
DO-221ADROHS3 CompliantActive
DIODE SCHOTTKY 60V DO-221AD
- Manufacturer
- VISHAY
- Manufacturer part #
- VSS8D3M6HM3/H
- Store part #
- C3757580
- Package / case
- DO-221AD
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,979 in stock
#C3757580
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.68 | ₹58.68 |
| 10+ | ₹46.50 | ₹465.00 |
| 30+ | ₹41.29 | ₹1,238.70 |
| 100+ | ₹34.99 | ₹3,499.00 |
| 500+ | ₹31.95 | ₹15,975.00 |
| 1,000+ | ₹30.43 | ₹30,430.00 |
1 × ₹58.68
₹58.68
excl. GST
₹69.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,500 per reel
VSS8D3M6HM3/H
₹58.68 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Voltage - Forward(Vf@If)
- 490mV@1.5A
- Reverse Leakage Current (Ir)
- 300uA@60V
- Non-Repetitive Peak Forward Surge Current
- 60A
- Current - Rectified
- 2.5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.093 g
Overview
Applications
- For use in high frequency inverters, freewheeling, DC/DC converters, and polarity protection in commercial, industrial, and automotive applications.
Key features
- Low-profile package
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
- AEC-Q101 qualified available
- Automotive ordering code: base P/N HM3
- Compatible to SOD-128 package case outline
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VSS8D5M6HM3/H#C2983561VISHAY · DO-221AD | VISHAY | DO-221AD | 3,147 | ₹72.21 · 3,147 in stock | View |
 | VSS8D5M10HM3/H#C5346036VISHAY · DO-221AD | VISHAY | DO-221AD | 10 | ₹82.58 · 10 in stock | View |
 | VSS8D5M15HM3/H#C3757879VISHAY · DO-221AD | VISHAY | DO-221AD | 2 | ₹39.77 · 2 in stock | View |
| VSS8D3M6-M3/H#C3758462VISHAY · DO-221AD | VISHAY | DO-221AD | On request | ₹20.59 · 0 in stock | View | |
| VSS8D3M6-M3/I#C3759319VISHAY · DO-221AD | VISHAY | DO-221AD | On request | ₹20.59 · 0 in stock | View | |
