VISHAYDatasheet (PDF)

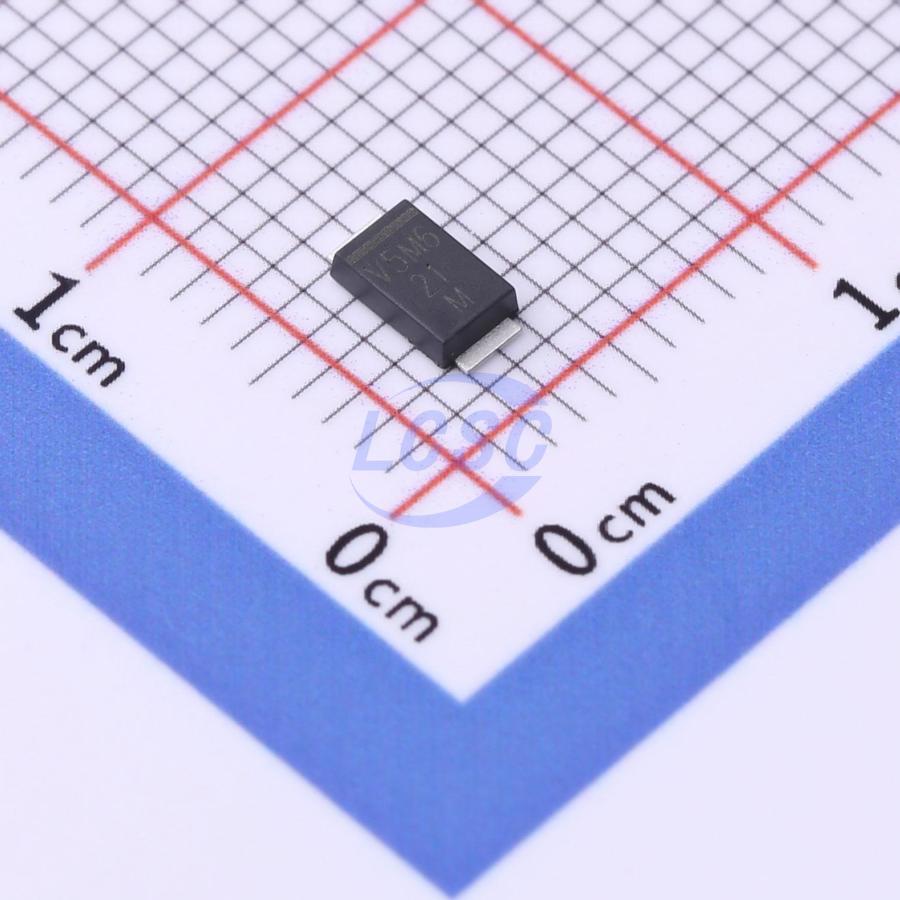

VSS8D5M6HM3/H
Diode 1 Independent 60V 2.7A Surface Mount DO-221AD
DO-221ADROHS3 CompliantActive
DIODE SCHOTTKY 60V DO-221AD
- Manufacturer
- VISHAY
- Manufacturer part #
- VSS8D5M6HM3/H
- Store part #
- C2983561
- Package / case
- DO-221AD
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,147 in stock
#C2983561
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.21 | ₹72.21 |
| 10+ | ₹56.60 | ₹566.00 |
| 30+ | ₹49.88 | ₹1,496.40 |
| 100+ | ₹41.63 | ₹4,163.00 |
| 500+ | ₹37.94 | ₹18,970.00 |
| 1,000+ | ₹35.79 | ₹35,790.00 |
1 × ₹72.21
₹72.21
excl. GST
₹85.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,500 per reel
VSS8D5M6HM3/H
₹72.21 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Voltage - Forward(Vf@If)
- 500mV@2.5A
- Reverse Leakage Current (Ir)
- 350uA@60V
- Non-Repetitive Peak Forward Surge Current
- 60A
- Current - Rectified
- 2.7A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.064 g
Overview
Applications
- For use in high frequency inverters, freewheeling, DC/DC converters, and polarity protection in commercial, industrial, and automotive applications.
Key features
- Low-profile package
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
- AEC-Q101 qualified available
- Automotive ordering code: base P/N HM3
- Compatible to SOD-128 package case outline
- Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VSS8D3M6HM3/H#C3757580VISHAY · DO-221AD | VISHAY | DO-221AD | 1,979 | ₹58.68 · 1,979 in stock | View |
 | VSS8D5M10HM3/H#C5346036VISHAY · DO-221AD | VISHAY | DO-221AD | 10 | ₹82.58 · 10 in stock | View |
 | VSS8D5M15HM3/H#C3757879VISHAY · DO-221AD | VISHAY | DO-221AD | 2 | ₹39.77 · 2 in stock | View |
| VSS8D5M6HM3/I#C3758784VISHAY · DO-221AD | VISHAY | DO-221AD | On request | ₹23.56 · 0 in stock | View | |
| VSS8D5M6-M3/H#C3759228VISHAY · DO-221AD | VISHAY | DO-221AD | On request | ₹21.42 · 0 in stock | View | |
