VISHAYDatasheet (PDF)

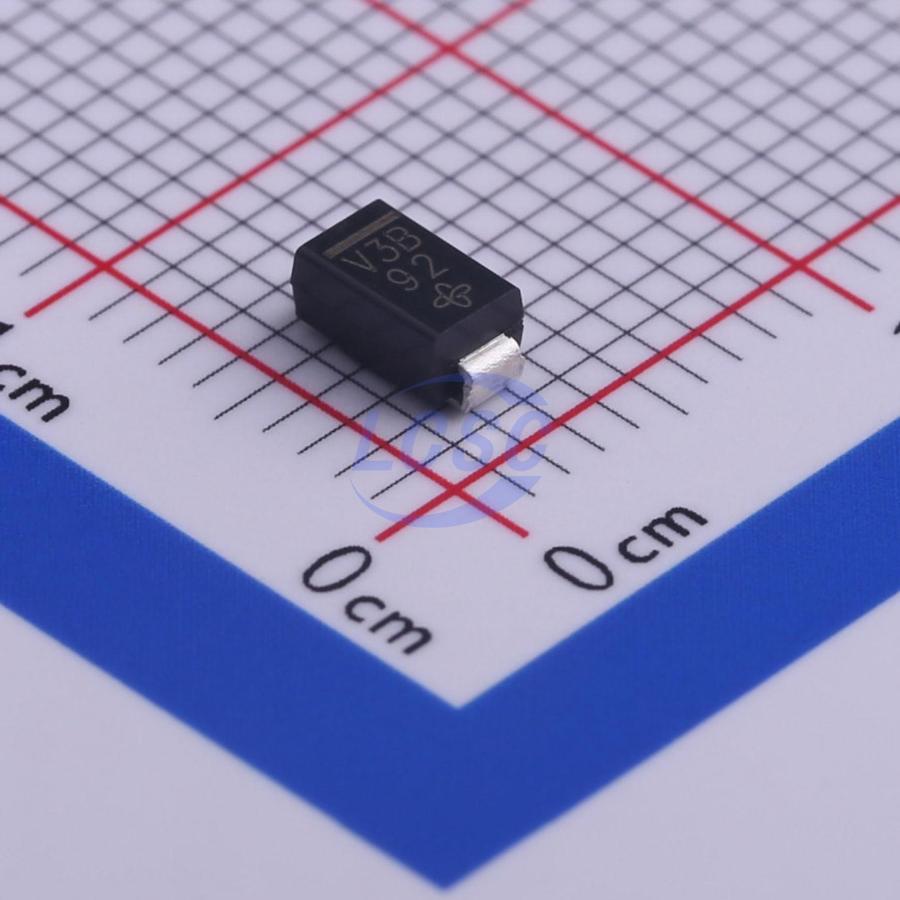

VSSA310S-E3/61T
1 Independent 100V 800mV@3A 1.7A SMA(DO-214AC) Single Diodes RoHS
SMA(DO-214AC)ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- VSSA310S-E3/61T
- Store part #
- C468173
- Package / case
- SMA(DO-214AC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,110 in stock
#C468173
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.79 | ₹143.95 |
| 50+ | ₹22.66 | ₹1,133.00 |
| 150+ | ₹20.04 | ₹3,006.00 |
| 500+ | ₹16.76 | ₹8,380.00 |
| 1,800+ | ₹15.31 | ₹27,558.00 |
| 5,400+ | ₹14.42 | ₹77,868.00 |
5 × ₹28.79
₹143.95
excl. GST
₹169.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
VSSA310S-E3/61T
₹143.95 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -40℃~+150℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Voltage - Forward(Vf@If)
- 800mV@3A
- Reverse Leakage Current (Ir)
- 150uA@100V
- Non-Repetitive Peak Forward Surge Current
- 60A
- Current - Rectified
- 1.7A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.079 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VSSA310S-M3/61T#C145232VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 1,015 | ₹34.82 · 1,015 in stock | View |
 | VSSA210-M3/61T#C3757345VISHAY · DO-214AC(SMA) | VISHAY | DO-214AC(SMA) | 920 | ₹41.82 · 920 in stock | View |
 | VSSA210-E3/61T#C468172VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 1,230 | ₹29.41 · 1,230 in stock | View |
| VSSA210-E3/5AT#C5358696VISHAY · DO-214AC(SMA) | VISHAY | DO-214AC(SMA) | 2,430 | ₹43.71 · 2,430 in stock | View | |
 | SM2100A#C2932894LRC · DO-214AC(SMA) | LRC | DO-214AC(SMA) | 13,965 | ₹12.69 · 13,965 in stock | View |
