VISHAYDatasheet (PDF)

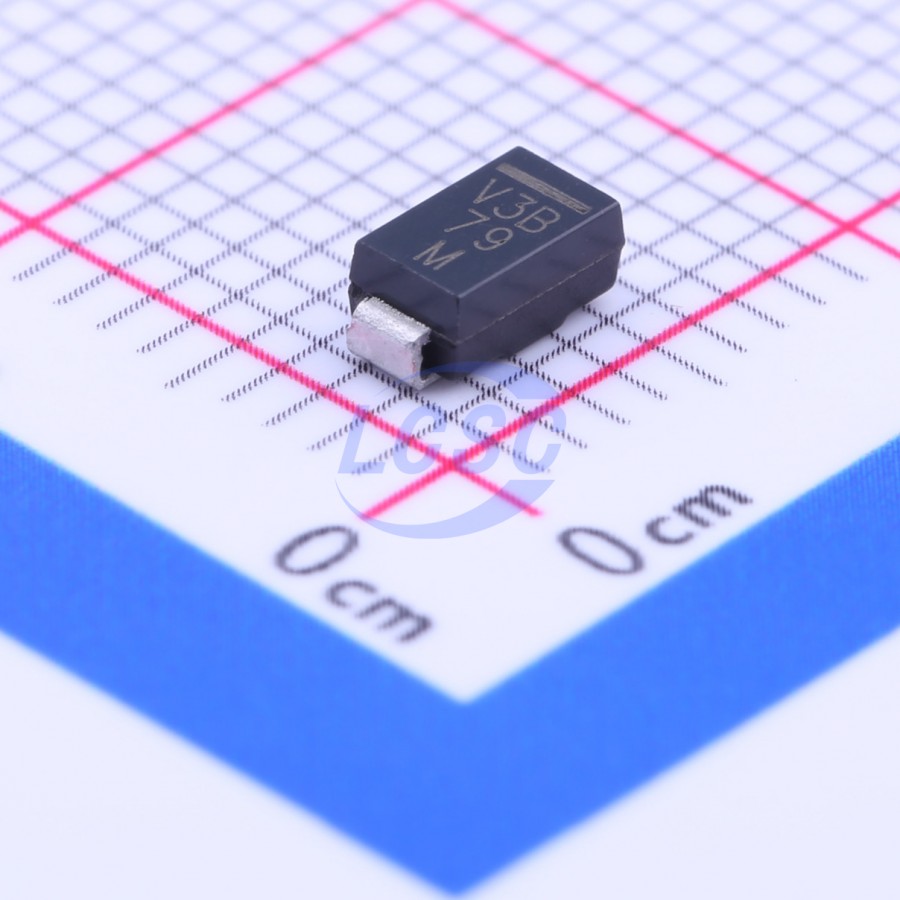

VSSA310S-M3/61T
Diode 1 Independent 100V 1.7A Surface Mount SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
DIODE SCHOTTKY 100V SMA(DO-214AC)
- Manufacturer
- VISHAY
- Manufacturer part #
- VSSA310S-M3/61T
- Store part #
- C145232
- Package / case
- SMA(DO-214AC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,015 in stock
#C145232
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.82 | ₹174.10 |
| 50+ | ₹27.69 | ₹1,384.50 |
| 150+ | ₹24.62 | ₹3,693.00 |
| 500+ | ₹20.81 | ₹10,405.00 |
| 1,800+ | ₹17.89 | ₹32,202.00 |
| 5,400+ | ₹16.87 | ₹91,098.00 |
5 × ₹34.82
₹174.10
excl. GST
₹205.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
VSSA310S-M3/61T
₹174.10 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Voltage - Forward(Vf@If)
- 800mV@3A
- Reverse Leakage Current (Ir)
- 150uA@100V
- Non-Repetitive Peak Forward Surge Current
- 60A
- Current - Rectified
- 1.7A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.067 g
Overview
Applications
- For use in low voltage, high frequency inverters
- Freewheeling
- DC/DC converters
- Polarity protection applications
Key features
- Low profile package
- Ideal for automated placement
- Trench MOS Schottky technology
- Low power losses, high efficiency
- Low forward voltage drop
- AEC-Q101 qualified available
- Automotive ordering code; base P/N HM3
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VSSA310S-E3/61T#C468173VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 1,110 | ₹28.79 · 1,110 in stock | View |
 | VSSA210-M3/61T#C3757345VISHAY · DO-214AC(SMA) | VISHAY | DO-214AC(SMA) | 920 | ₹41.82 · 920 in stock | View |
 | VSSA210-E3/61T#C468172VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 1,230 | ₹29.41 · 1,230 in stock | View |
| VSSA210-E3/5AT#C5358696VISHAY · DO-214AC(SMA) | VISHAY | DO-214AC(SMA) | 2,430 | ₹43.71 · 2,430 in stock | View | |
 | SM2100A#C2932894LRC · DO-214AC(SMA) | LRC | DO-214AC(SMA) | 13,965 | ₹12.69 · 13,965 in stock | View |
