VISHAYDatasheet (PDF)

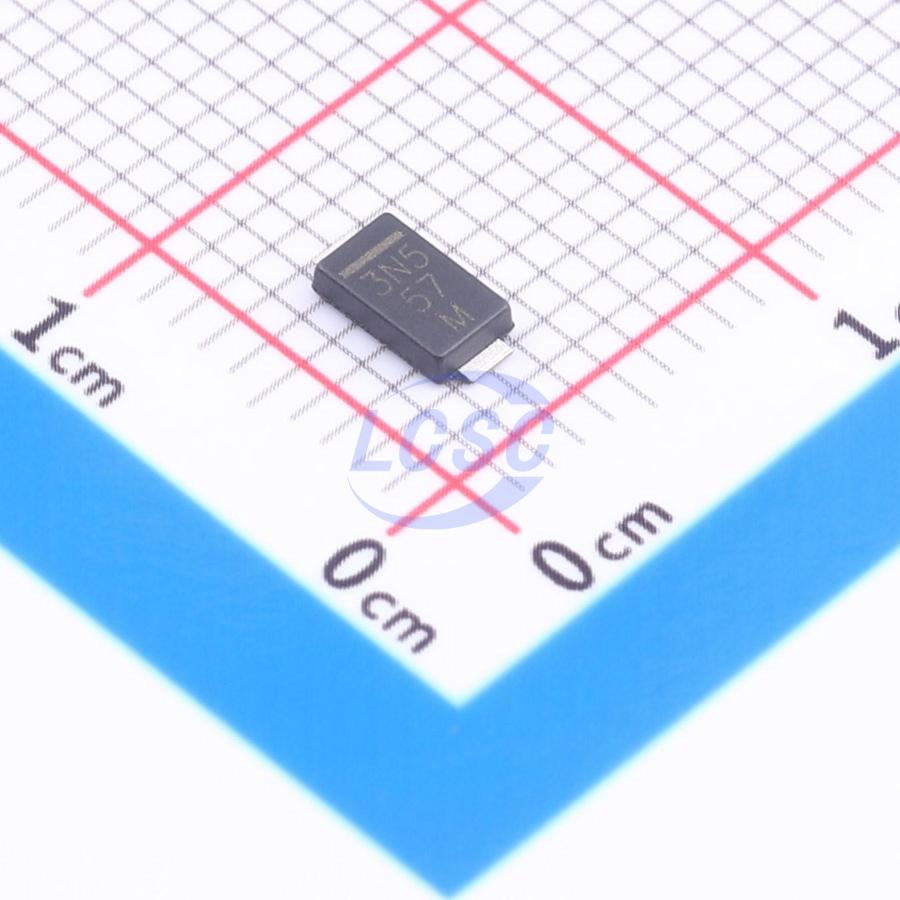

VSSAF3N50-M3/6A
1 Independent 50V 400mV@1.5A 2.7A DO-221AC(SLIMSMA) Single Diodes RoHS
DO-221AC(SLIMSMA)ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- VSSAF3N50-M3/6A
- Store part #
- C6750664
- Package / case
- DO-221AC(SLIMSMA)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C6750664
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.38 | ₹151.90 |
| 50+ | ₹29.81 | ₹1,490.50 |
| 150+ | ₹29.41 | ₹4,411.50 |
| 500+ | ₹29.03 | ₹14,515.00 |
5 × ₹30.38
₹151.90
excl. GST
₹179.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,500 per reel
VSSAF3N50-M3/6A
₹151.90 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 50V
- Voltage - Forward(Vf@If)
- 400mV@1.5A
- Reverse Leakage Current (Ir)
- 1mA@50V
- Non-Repetitive Peak Forward Surge Current
- 80A
- Current - Rectified
- 2.7A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.177 g
Overview
Applications
- For use in low-voltage, high-frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
Key features
- Ultra-thin design, typical height 0.95mm
- Compatible with automated placement
- Trench MOS Schottky technology
- Low power dissipation, high efficiency
- Low forward voltage drop
- MSL Level 1 per J-STD-020, LF max peak temperature 260°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VSSAF5N50-M3/6A#C7389237VISHAY · DO-221AC(SLIMSMA) | VISHAY | DO-221AC(SLIMSMA) | 48 | ₹75.62 · 48 in stock | View |
| SM3200AF#C5266301LRC · SMA-FL | LRC | SMA-FL | 3,000 | ₹9.84 · 3,000 in stock | View | |
 | VSSAF3M6HM3/H#C5831606VISHAY · DO-221AC(SLIMSMA) | VISHAY | DO-221AC(SLIMSMA) | On request | ₹35.68 · 0 in stock | View |
| VSSAF3M6-M3/H#C7149665VISHAY · DO-221AC(SLIMSMA) | VISHAY | DO-221AC(SLIMSMA) | 81 | ₹96.92 · 81 in stock | View | |
 | VSSAF3M10HM3/H#C3759644VISHAY · DO-221AC(SlimSMA) | VISHAY | DO-221AC(SlimSMA) | 90 | ₹44.29 · 90 in stock | View |
