VISHAYDatasheet (PDF)

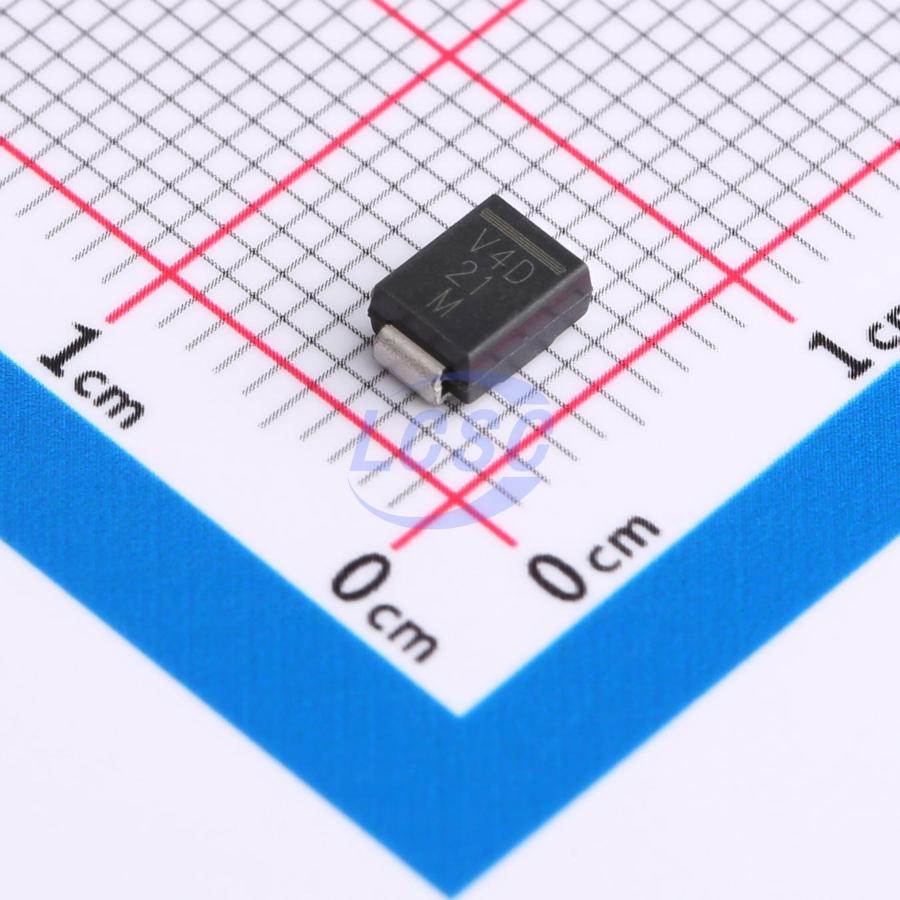

VSSB420S-M3/52T
Diode 1 Independent 200V 1.8A Surface Mount DO-214AA(SMB)
DO-214AA(SMB)ROHS CompliantActive
DIODE SCHOTTKY 200V DO-214AA(SMB)
- Manufacturer
- VISHAY
- Manufacturer part #
- VSSB420S-M3/52T
- Store part #
- C3758530
- Package / case
- DO-214AA(SMB)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C3758530
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.64 | ₹188.20 |
| 50+ | ₹29.97 | ₹1,498.50 |
| 150+ | ₹26.68 | ₹4,002.00 |
| 750+ | ₹22.58 | ₹16,935.00 |
| 2,250+ | ₹20.76 | ₹46,710.00 |
| 5,250+ | ₹19.66 | ₹1,03,215.00 |
5 × ₹37.64
₹188.20
excl. GST
₹222.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 750 per reel
VSSB420S-M3/52T
₹188.20 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Voltage - Forward(Vf@If)
- 1.9V@4A
- Reverse Leakage Current (Ir)
- 150uA@200V
- Non-Repetitive Peak Forward Surge Current
- 40A
- Current - Rectified
- 1.8A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 750 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.2 g
Overview
Applications
- High-frequency converters
- Freewheeling diodes
- DC/DC converters
- Polarity protection applications
Key features
- Low-profile package
- Suitable for automatic placement
- Trench MOS Schottky technology
- Low power dissipation, high efficiency
- Low forward voltage drop
- Compliant with MSL 1, per J-STD-020, LF max peak 260℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VSSB420S-M3/5BT#C468175VISHAY · SMB(DO-214AA) | VISHAY | SMB(DO-214AA) | 1,060 | ₹48.66 · 1,060 in stock | View |
 | SS220(SMB)#C52195354CBI · SMB | CBI | SMB | 3,000 | ₹3.90 · 3,000 in stock | View |
 | SS220B#C41433769YFW · SMB | YFW | SMB | 2,070 | ₹6.76 · 2,070 in stock | View |
 | SS220#C5763870YFW · SMB | YFW | SMB | 300 | ₹6.65 · 300 in stock | View |
 | SS220B#C353187Jingdao Microelectronics · SMB | Jingdao Microelectronics | SMB | 2,840 | ₹7.24 · 2,840 in stock | View |
