VISHAYDatasheet (PDF)

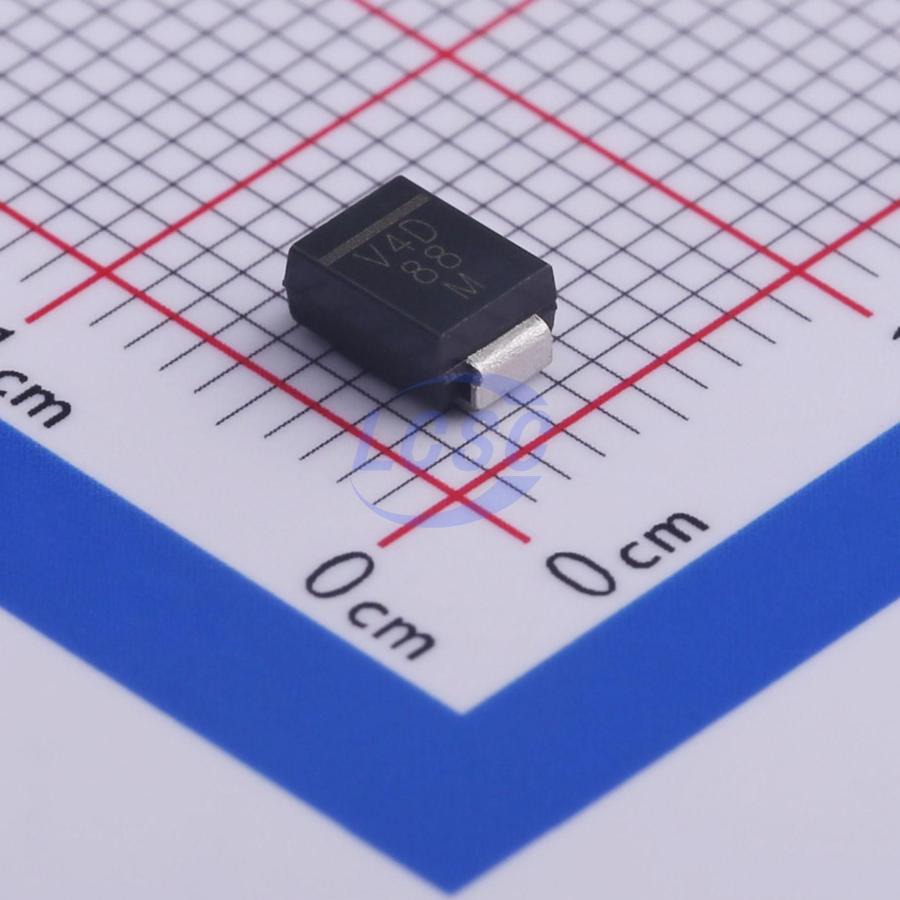

VSSB420S-M3/5BT
Diode 200V 1.8A Surface Mount SMB(DO-214AA)
SMB(DO-214AA)ROHS3 CompliantActive
DIODE SCHOTTKY 200V SMB(DO-214AA)
- Manufacturer
- VISHAY
- Manufacturer part #
- VSSB420S-M3/5BT
- Store part #
- C468175
- Package / case
- SMB(DO-214AA)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,060 in stock
#C468175
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.66 | ₹243.30 |
| 50+ | ₹37.72 | ₹1,886.00 |
| 150+ | ₹33.04 | ₹4,956.00 |
| 500+ | ₹27.19 | ₹13,595.00 |
| 3,200+ | ₹24.58 | ₹78,656.00 |
| 6,400+ | ₹23.02 | ₹1,47,328.00 |
5 × ₹48.66
₹243.30
excl. GST
₹287.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,200 per reel
VSSB420S-M3/5BT
₹243.30 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Voltage - Forward(Vf@If)
- 1.9V@4A
- Reverse Leakage Current (Ir)
- 150uA@200V
- Non-Repetitive Peak Forward Surge Current
- 40A
- Current - Rectified
- 1.8A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,200 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.124 g
Overview
Applications
- High frequency converters
- Freewheeling diodes
- DC/DC converters
- Polarity protection applications
Key features
- Low profile package
- Ideal for automated placement
- Trench MOS Schottky technology
- Low power losses, high efficiency
- Low forward voltage drop
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VSSB420S-M3/52T#C3758530VISHAY · DO-214AA(SMB) | VISHAY | DO-214AA(SMB) | 50 | ₹37.64 · 50 in stock | View |
 | MBRS3200T3G-FS#C5563740FUXINSEMI · SMB(DO-214AA) | FUXINSEMI | SMB(DO-214AA) | 3,560 | ₹10.28 · 3,560 in stock | View |
 | SS220(SMB)#C52195354CBI · SMB | CBI | SMB | 3,000 | ₹3.90 · 3,000 in stock | View |
 | SS220B#C41433769YFW · SMB | YFW | SMB | 2,070 | ₹6.76 · 2,070 in stock | View |
 | SS220#C5763870YFW · SMB | YFW | SMB | 300 | ₹6.65 · 300 in stock | View |
