VISHAYDatasheet (PDF)

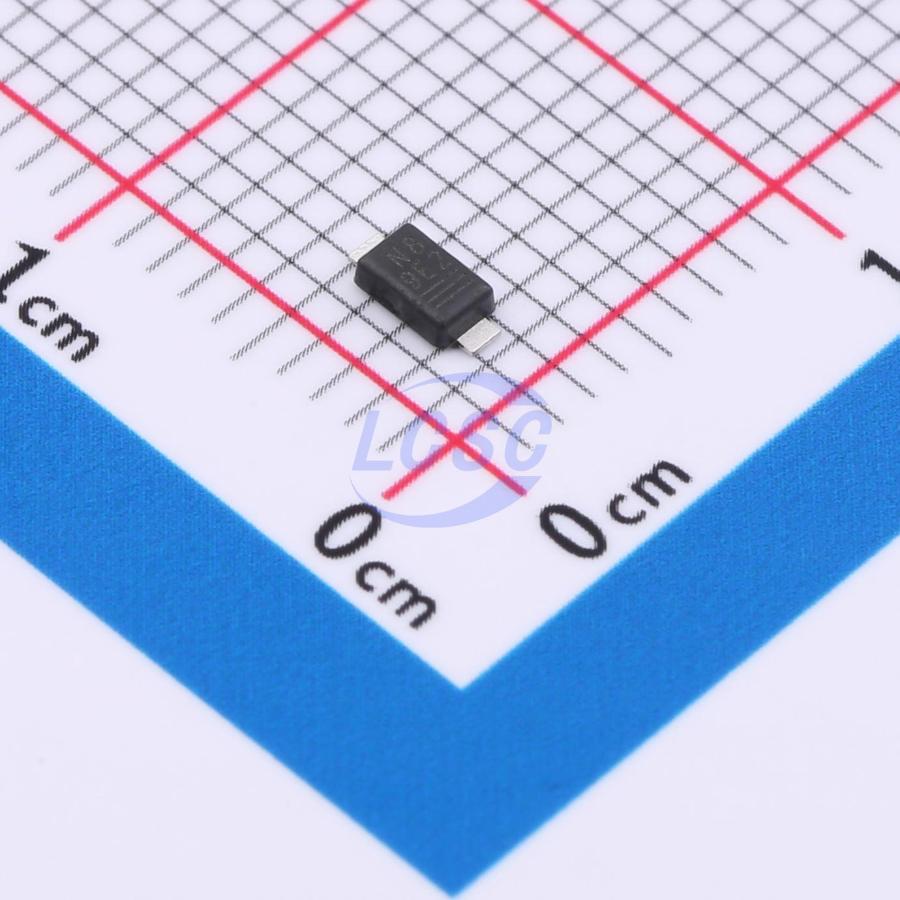

VTVS31GSMF-HM3-08
51VC Clamp 7.74A@10/1000us Ipp TVS DIODE DO-219AB(SMF)
DO-219AB(SMF)ROHS3 CompliantActive
TVS DIODE 30.6VWM 51VC DO-219AB(SMF)
- Manufacturer
- VISHAY
- Manufacturer part #
- VTVS31GSMF-HM3-08
- Store part #
- C1981563
- Package / case
- DO-219AB(SMF)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C1981563
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹121.37 | ₹121.37 |
| 10+ | ₹97.27 | ₹972.70 |
| 30+ | ₹85.23 | ₹2,556.90 |
| 100+ | ₹73.39 | ₹7,339.00 |
| 500+ | ₹66.07 | ₹33,035.00 |
| 1,000+ | ₹62.41 | ₹62,410.00 |
1 × ₹121.37
₹121.37
excl. GST
₹143.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30,000 per reel
VTVS31GSMF-HM3-08
₹121.37 for 1 + GST
Specifications
- Clamping Voltage
- 51V
- Peak Pulse Current (Ipp)
- 7.74A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 400W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 36.72V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 50nA
- Reverse Stand-Off Voltage (Vrwm)
- 30.6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 30,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.15 g
Overview
Key features
- 400 W peak pulse power capability with a Available 10/1000 μs waveform
- Tolerance of the avalanche breakdown voltage ± 5 % VTVSxxxA... ± 2 % VTVSxxxG... e3
- Low-profile package RoHS
- Wave and reflow solderable COMPLIANT
- ESD-protection acc. IEC 61000-4-2 HALOGEN ± 30 kV contact discharge FREE ± 30 kV air discharge
- Excellent clamping capability
- “Low-Noise” technology - very fast response time
- AEC-Q101 qualified available
- Compatible to SOD-123W package case outline or SOD-123F and SOD-123FL
