VISHAYDatasheet (PDF)

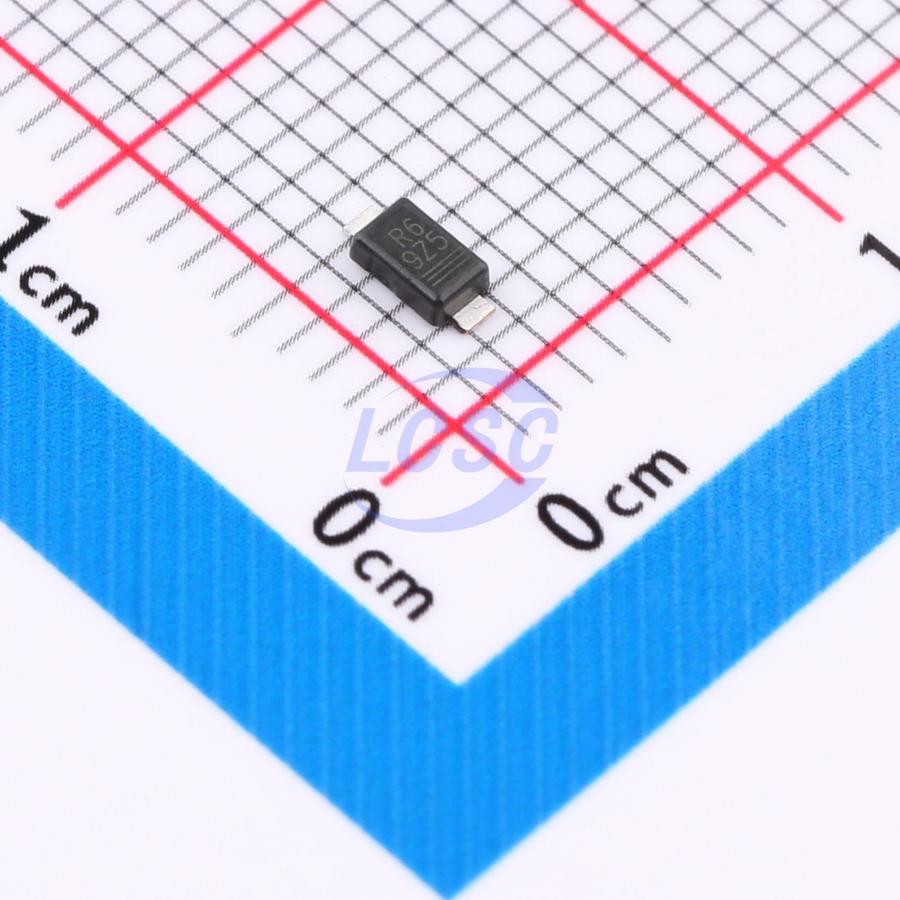

VTVS3V3ASMF-M3-08
8.9VC Clamp TVS DIODE DO-219AB(SMF)
DO-219AB(SMF)ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- VTVS3V3ASMF-M3-08
- Store part #
- C6024957
- Package / case
- DO-219AB(SMF)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,160 in stock
#C6024957
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.51 | ₹212.55 |
| 50+ | ₹33.75 | ₹1,687.50 |
| 150+ | ₹29.99 | ₹4,498.50 |
| 500+ | ₹25.31 | ₹12,655.00 |
| 3,000+ | ₹23.22 | ₹69,660.00 |
| 6,000+ | ₹21.98 | ₹1,31,880.00 |
5 × ₹42.51
₹212.55
excl. GST
₹250.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
VTVS3V3ASMF-M3-08
₹212.55 for 5 + GST
Specifications
- Clamping Voltage
- 8.9V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 42.95A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 400W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 6.4V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 50nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.14 g
Overview
Key features
- 400 W peak pulse power capability with a 10/1000 μs waveform
- Tolerance of the avalanche breakdown voltage ± 5 % VTVSxxxA... ± 2 % VTVSxxxG...
- Low-profile package
- Wave and reflow solderable
- ESD-protection acc. IEC 61000-4-2 ± 30 kV contact discharge ± 30 kV air discharge
- Excellent clamping capability
- "Low-Noise" technology - very fast response time
- AEC-Q101 qualified available
- Compatible to SOD-123W package case outline or SOD-123F and SOD-123FL
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VTVS3V3GSMF-HM3-08#C1981341VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | 19 | ₹75.01 · 19 in stock | View |
| VTVS3V3ASMF-HM3-18#C3706757VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹17.60 · 0 in stock | View | |
| VTVS3V3ASMF-M3-18#C6024959VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹28.89 · 0 in stock | View | |
| VTVS3V3GSMF-M3-08#C1974312VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹35.42 · 0 in stock | View | |
| VTVS3V3GSMF-M3-18#C1974427VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹30.77 · 0 in stock | View | |
