WILLSEMIDatasheet (PDF)

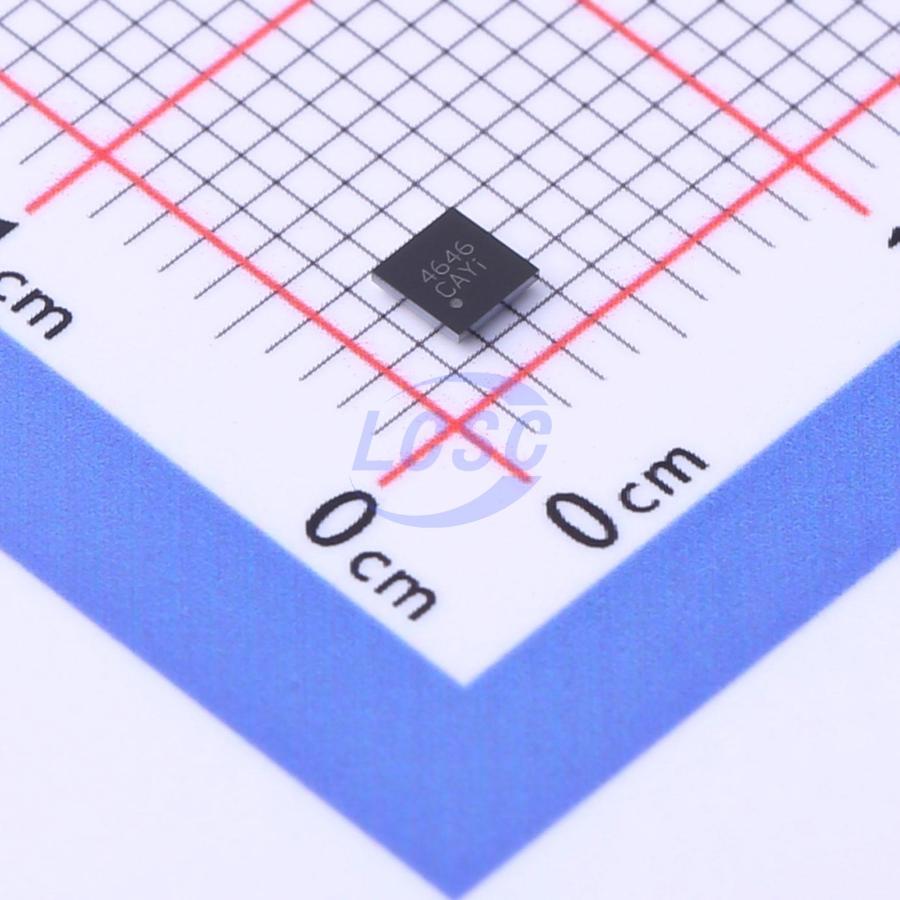

WAS4646C-36/TR
1.6V~5V 2 3GHz 7Ω 2:1 CSP-36L Analog Switches - Special Purpose
CSP-36LRoHSActive
2:1 MIPI D-PHY 4-Data Lane & C-PHY 3-Data Lane Switch
- Manufacturer
- WILLSEMI
- Manufacturer part #
- WAS4646C-36/TR
- Store part #
- C2941903
- Package / case
- CSP-36L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,998 in stock
#C2941903
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹110.03 | ₹110.03 |
| 10+ | ₹87.46 | ₹874.60 |
| 30+ | ₹76.40 | ₹2,292.00 |
| 100+ | ₹65.33 | ₹6,533.00 |
| 500+ | ₹58.61 | ₹29,305.00 |
| 1,000+ | ₹55.13 | ₹55,130.00 |
1 × ₹110.03
₹110.03
excl. GST
₹129.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
WAS4646C-36/TR
₹110.03 for 1 + GST
Specifications
- Turn-on time
- 600ns
- Turn-off time
- 400ns
- Voltage - Supply
- 1.6V~5V
- Number of Channels
- 2
- -3dB Bandwidth
- 3GHz
- Ron
- 7Ω
- Propagation Delay (tpd)
- 40ps
- Switch Circuit
- 2:1
- Operating Temperature
- -40℃~+85℃
- Applications
- Cellular;Computer
- Con
- 1.2pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.033 g
Overview
The WAS4646C is a four-data-lane MIPI, D-PHY or three-data-lane C-PHY MIPI switch. This single-pole, double-throw (SPDT) switch is optimized for switch between two high-speed or low-power MIPI sources. The WAS4646C is designed for the specification and allows connection to a CSI or DSI module.
Applications
- Cellular Phones, Smart Phones
- Tablets, Laptops, Displays
Key features
- Supply voltage: 1.6 to 5.0 V
- Input Signals: 0 to 1.3 V
- Ron: 7Ω Typical HS MIPI, 7Ω Typical LP MIPI
- ΔRON: 0.1Ω Typical LP & HS MIPI
- RON_FLAT: 0.5Ω Typical LP & HS MIPI
- ICCZ: 1μA Maximum
- ICC: 40μA Maximum
- OIRR: -24 dB Typical @ 1.25G
- Bandwidth: 3000 MHz Typical
- XTALK: -30 dB Typical
- Package: CSP-36L
