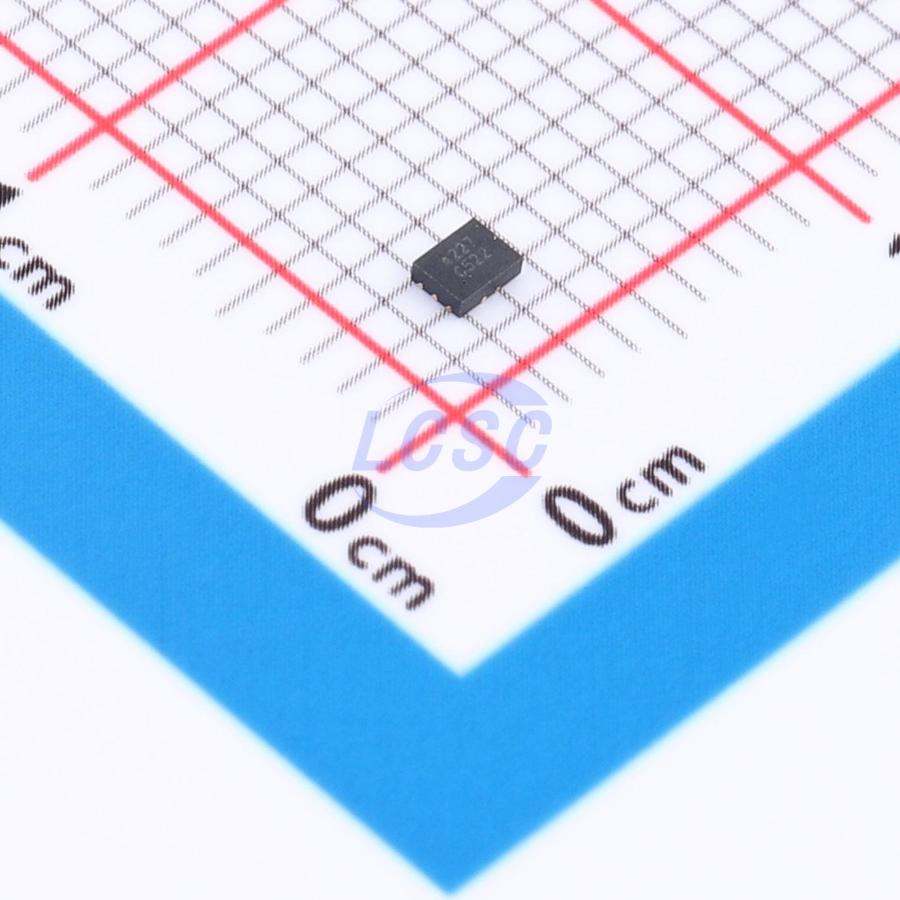

waferbest

WB4227

1.8V~5.5V 720MHz 2 10Ω 2:1 USB QFN-10(1.4x1.8) Analog Switches - Special Purpose

QFN-10(1.4x1.8)RoHSActive

Manufacturer: waferbest
Manufacturer part #: WB4227
Store part #: C53374634
Package / case: QFN-10(1.4x1.8)
Category: Analog Switches - Special Purpose
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,660 in stock

#C53374634

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹29.94	₹149.70
50+	₹23.64	₹1,182.00
150+	₹20.94	₹3,141.00
500+	₹17.57	₹8,785.00
2,500+	₹16.06	₹40,150.00
4,000+	₹15.16	₹60,640.00

Quantity (min 5, multiples of 5)

5 × ₹29.94

₹149.70

excl. GST

₹176.65 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

WB4227

₹149.70 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Turn-on time: 14ns
Voltage - Supply: 1.8V~5.5V
Turn-off time: 8ns
-3dB Bandwidth: 720MHz
Number of Channels: 2
Ron: 10Ω
Switch Circuit: 2:1
Operating Temperature: -40℃~+125℃
Applications: USB
Features: Bidirectional analog channel;Glitch-free switching
Con: 6pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.024 g

Overview

WB4227 is a high-bandwidth, fast double-pole double-throw (DPDT) analog switch. Its wide bandwidth and low inter-bit skew enable transmission of high-speed differential signals with excellent signal integrity. Each switch is bidirectional with minimal or no attenuation of high-speed signals at the output. Its high inter-channel crosstalk rejection minimizes noise interference.
