MSKSEMI

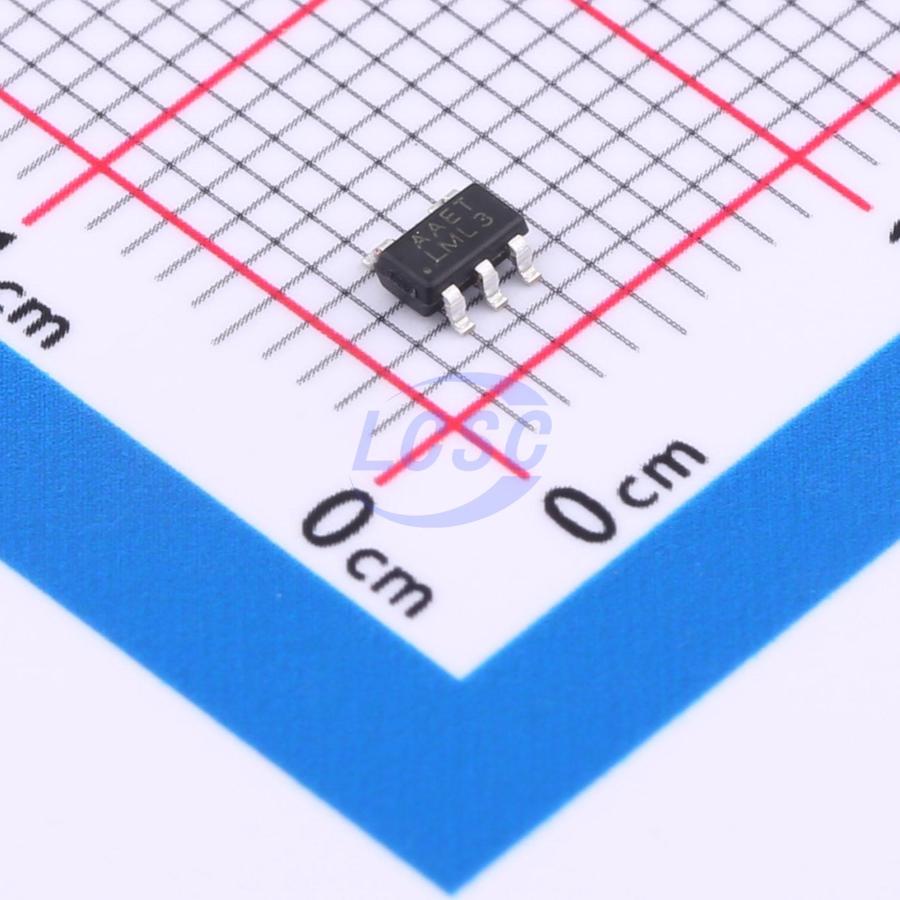

XC6228D252VR-G(MS)

Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5

SOT-23-5RoHSActive

Low quiescent current regulator

Manufacturer: MSKSEMI
Manufacturer part #: XC6228D252VR-G(MS)
Store part #: C20627180
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,795 in stock

#C20627180

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
5+	₹10.07	₹50.35
50+	₹7.96	₹398.00
150+	₹6.91	₹1,036.50
500+	₹6.11	₹3,055.00
3,000+	₹5.48	₹16,440.00
6,000+	₹5.17	₹31,020.00

Quantity (min 5, multiples of 5)

5 × ₹10.07

₹50.35

excl. GST

₹59.41 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

XC6228D252VR-G(MS)

₹50.35 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 2.5V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 2uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 300mA
Output Type: Fixed
Features: Enable control;Short Circuit Protection;Over Current Protection;Thermal shutdown

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.04 g

Overview

The XC6228DXX2VR-G(MS) series is a family of LDO regulators featuring a wide input voltage range of 1.2V to 5.5V, low dropout voltage, low power consumption, and compact packaging. With a quiescent current as low as 2μA, the XC6228DXX2VR-G(MS) is particularly well-suited for battery-powered and long-term standby applications, helping reduce system standby power consumption while effectively extending standby time and battery life. The XC6228DXX2VR-G(MS) is available in a version with an EN enable pin — pulling the EN pin low activates shutdown mode, in which quiescent current drops to as low as 100nA (typical). The XC6228DXX2VR-G(MS) series supports ceramic output capacitors and operates stably across the full 1.2V to 5.5V input voltage range and throughout the entire output load current range of 0mA to 300mA.

Applications

Handheld, battery-powered devices
Low-power microprocessors
Laptops, palmtops, and PDAs
Wireless communication devices
Audio/video equipment
Automotive navigation systems

Key features

2µA quiescent current (no load)
±2% output voltage accuracy
300mA output current capability
100nA shutdown current (optional version)
Wide input voltage range: 1.2V to 5.5V
Low dropout: 0.18V (at ΔVO = 3.3V / IO = 300mA)
Fixed output voltage options: 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
Ceramic or tantalum capacitor compatible
Current limiting protection
Overtemperature protection
