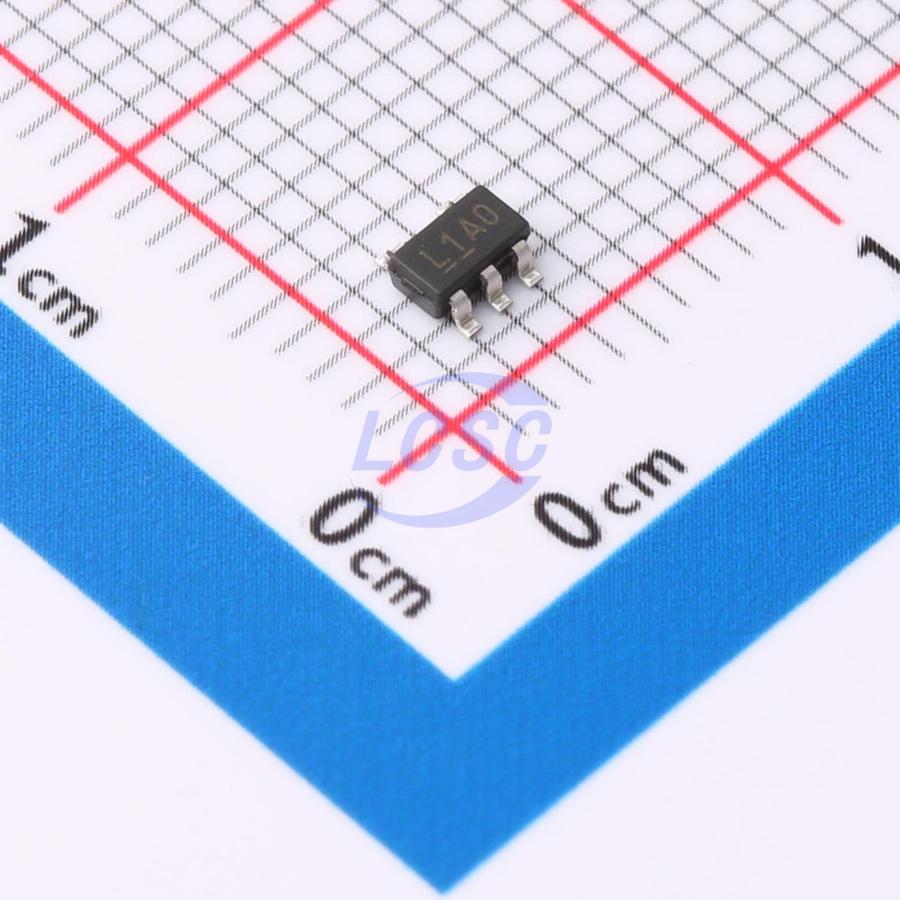

XC6366B103MR-G

The XC6365/XC6366 series are multi-functional step-down DC/DC controllers which have 1A output current capability by using an externally connected transistor, coil, diode and capacitor. Output voltage is programmable in 0.1V increments between 1.5V to 6.0V (VOUT) (±2.5% accuracy). Further, with 1.0V of standard voltage supply internal and using externally connected components, output voltage can be set up freely (FB). With a 300kHz switching frequency, the size of the external components can be reduced. Control switches from PWM to PFM during light loads with the XC6366 (PWM/PFM switchable) and the series is highly efficient from light loads to large output currents. Soft start time of XC6365/ XC6366A, B series is internally set to 10ms and XC6365/66C, D series regulate soft-start time by connecting resistors and capacitors externally. During stand-by time (CE pin "Low" ), current consumption is reduced to less than 0.5 μA.

Applications

• E-book Reader / Electronic dictionaries
• Smart phones / Mobile phones
• Note PCs / Tablet PCs
• Digital audio equipments
• Multi-function power supplies

Key features

• Input Voltage Range: 2.2V ~ 10V (VOUT type)
• Output Voltage Range: 1.5V ~ 6.0V (0.1V increments) (±2.5%)
• Oscillation Frequency: 300kHz (±15%), Custom products for 180, 500kHz
• Output Current: More than 1.0A (VIN = 5.0V, VOUT = 3.0V)
• High Efficiency: 92% (TYP.)
• Stand-by Capability: ISTB = 0.5 μA (MAX.)
• Selection: Soft-start set-up external, Output voltage set-up internal (VOUT), Output voltage set-up external (FB), PWM/PFM Control (XC6366)
• Maximum Duty Cycle: 100%
• Packages: SOT-25, USP-6C
• Environmentally Friendly: EU RoHS Compliant, Pb Free
